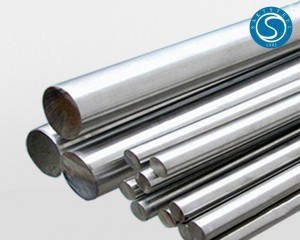

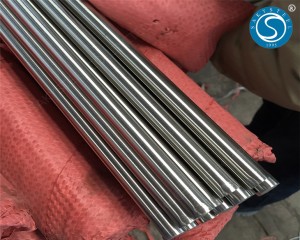

Polished bright surface 316 Stainless Steel Round Bar
Short Description:

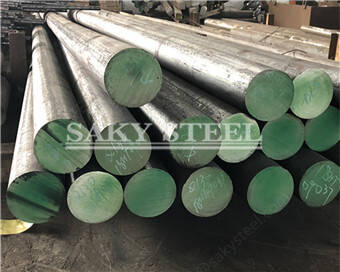

| Stainless Steel Round Bar Bright Products Show: |
| Specifications of 316 stainless steel bar: |
| Standard | ASTM A276, A484, A479, A580, A582, JIS G4303, JIS G4311,DIN 1654-5,DIN 17440,KS D3706,GB/T 1220 |
| Material | 201,202,205,XM-19 etc. 301,303,304,304L,304H,309S,310S,314,316,316L,316Ti,317,321,321H,329,330,348 etc. 409,410,416,420,430,430F,431,440 2205,2507,S31803,2209,630,631,15-5PH,17-4PH,17-7PH,904L,F51,F55,253MA etc. |
| Surface | Bright,Polishing,Pickled,Peeled,Black,Grinding etc |
| Technology | Cold Drawn,Hot Rolled,Forged |
| Specifications | Diameter : 2 4 5 6 7 8 9 20 24 25 40mm or as your required Length:5.8m,6m or as required |
| Tolerance | H9, H11, H13, K9, K11, K13 or as required |
| Stainless Steel 316/316L/316H/316Ti bar Equivalent Grades: |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | - | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
| SS 316H | 1.4401 | S31609 | SUS 316H | - | - | - | - |
| SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
| SS 316/316L/316H/316Ti bar Chemical Composition and Mechanical properties: |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| SS 316H | 0.10 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| SAKY STEEL’S Quality Assurance (including both Destructive and Non-Destructive) : |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Ultrasonic test
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Impact analysis
10. Metallography Experimental Test

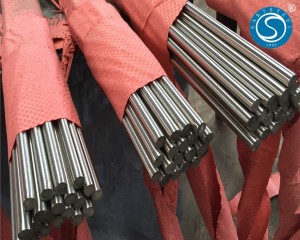

| SAKY STEEL’S Packaging: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
Applications :
Construction field, ships building industry, car making industry, petroleum & chemical industries, war and electricity industries, food processing and medical industry, boiler heat exchanger, machinery and hardware fields
Advantage:
1) Transportation speed is quick
2) High quality,quantity is with preferential treatment
3) Products are certified by ISO9001:2008 authentication quality systems.
4) Famous stainless steel company in China and overseas.
5) Strong ability to supply
6) Branded stainless steel
7) More than 200 patterns
8) Bottom price
9) Reliable quality and service
10) Buyer’s specifications accepted
11) Experienced R & D Department
