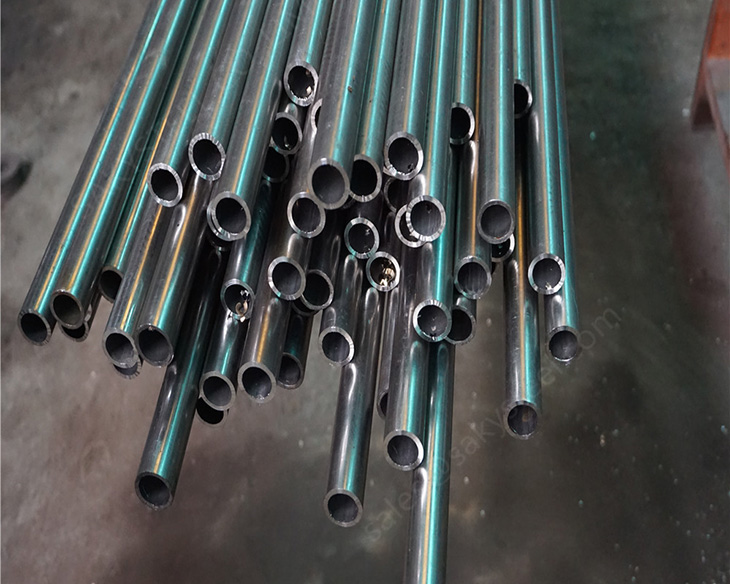

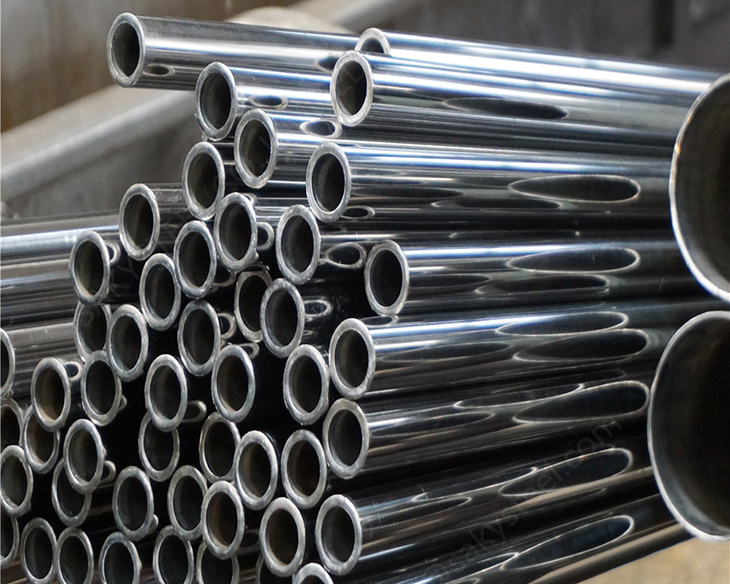

Precision Stainless Steel Seamless Pipe

Short Description:


  • Model Number: 304
  • Type: Seamless
  • Steel Grade: 300 Series, 201,202,304,304L,316,316L,316Ti,310S,2080,430,317,347,410,Monel400,etc
  • Thickness: 0.4-30mm
  • Outer Diameter: 6-630mm
  • Hardness: 1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard, soft, etc
  • Product Detail

    Product Tags

    Precision finishing 304 Stainless Steel Seamless Pipe:
    01. Material Steel Grade 201/202/304/316/316L/430 /439
    Material Type Available in cold rolled and hot rolled
    02. Diameter of Stainless Pipe W.T 0.5mm-40mm
    Diameter 1/8″ thru 24″
    Length 2m-12m, or customer required
    03. 300 Series Stainless Steel Grades 304 – 304/L – 304H – 309/S – 309H – 310/S – 310H – 316L – 317L – 321 – 321H – 347 – 347H
    04. 400 Series Stainless Steel Grades 410
    05. Application Construction, machine structure, agriculture equipment, water and gas pipes etc.
    06. Packing Standard export packing
    07. Delivery Time 1.10days after receving the deposit of T/T2.10days after receving the L/C original
    08. Trade Terms FOB, CFR, CIF etc.
    09. Payment Terms 1.30%T/T in advance, the balance against the B/L copy2.30%T/T in advance, the balance against the L/C at sight
    10. Loading Port Shanghai,Ningbo
    11.Company Inform. Name Saky Steel CO., LTD
    Type Manufacture

    All pipe can be cut to size, polished per customer specification. Pipe is stocked in 17′ to 24″ R/L sections.

    Chemical Component:
    Grade C (Max) Mn (Max) P (Max) S (Max) Si (Max) Cr Ni Mo Nitrogen (Max) Cu/ Others
    201 0.15 5.50-7.50 0.06 0.03 1 16.00-18.00 3.50-5.50 - 0.25
    202 0.15 7.50-10.00 0.06 0.03 1 17.00-19.00 4.00-6.00 - 0.25
    301 0.15 2 0.045 0.03 1 16.00 – 18.00 6.00 – 8.00 - 0.1 -
    304 0.08 2 0.045 0.03 1 18.00 – 20.00 8.00- 10.50 - 0.1 -
    304L 0.03 2 0.045 0.03 1 18.00 – 20.00 8.00- 12.00 - 0.1 -
    310S 0.08 2 0.045 0.03 1.5 24.00- 26.00 19.00-22.00 - - -
    316 0.08 2 0.045 0.03 1 16.00 – 18.00 10.00- 14.00 2.00 – 3.00 0.1 -
    316L 0.03 2 0.045 0.03 1 16.00 – 18.00 10.00- 14.00 2.00 – 3.00 0.1 -
    316Ti 0.08 2 0.045 0.03 1 16.00 – 18.00 10.00- 14.00 2.00 – 3.00 0.1 Ti5x C Min
    317 0.08 2 0.045 0.03 0.75 18.00 – 20.00 11.00 – 14.00 3.00 – 4.00 0.1 -
    317L 0.03 2 0.045 0.03 0.75 18.00 – 20.00 11.00 – 15.00 3.00 – 4.00 0.1 -
    321 0.08 2 0.045 0.03 0.75 17.00 – 19.00 9.00 – 12.00 - 0.1 Ti5xC Min

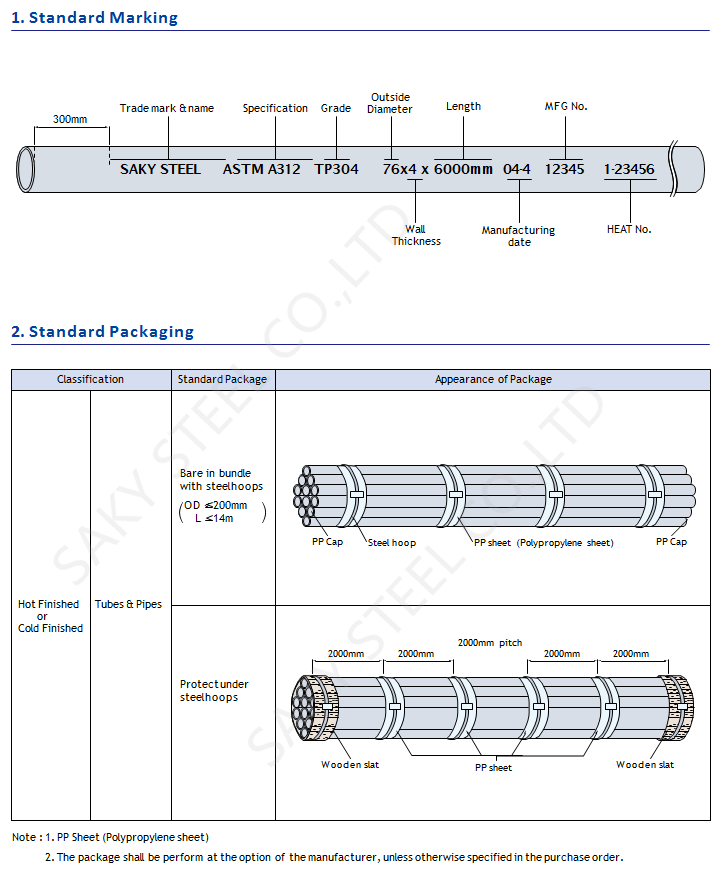

    Packaging & Shipping

    Precision finishing 304 Stainless Steel Seamless Pipe manufacturer from china

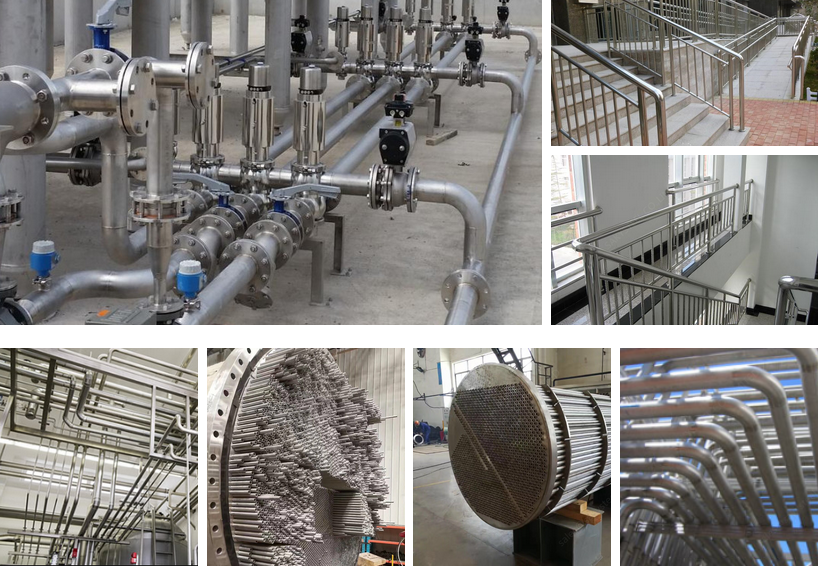

    Application:
    Seamless Stainless Steel Pipe is used for pressure operations such as moving liquids and gases in processing operations in the water treatment, chemical, petrochemical, food processing,Petroleum, Chemical enterprise,heater of boiler.

    HTB191QGSFXXXXXVXVXX760XFXXXd

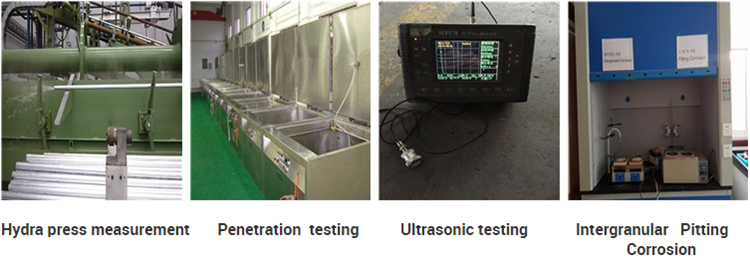

    Testing & Inspection
     HTB1AmKVRFXXXXXaaXXX760XFXXXO



    Positive Material Identification (PMI)

    Sakysteel Stainless can perform PMI testing in house for most stainless steel grades, or we can work with independent labs to complete PMI in order to meet customer specifications.

    UT Testing

    In some cases, UT testing of the stainless steel plates may be required. We can assist you with this requirement.
