Introduction
304 and 316 stainless steel flat bars are both widely used in architectural and structural applications, but their corrosion resistance performance differs significantly in coastal environments.
For coastal architecture, balustrades, handrails and exterior structures, material selection is mainly influenced by chloride exposure, salt spray conditions, maintenance requirements and expected service life.
304 stainless steel flat bar provides good corrosion resistance for general architectural applications, while 316 stainless steel flat bar is usually preferred for marine and coastal environments because of its molybdenum addition, which improves resistance to chloride-induced pitting corrosion.
Quick Answer: Should You Choose 304 or 316 Stainless Steel Flat Bar for Coastal Applications?
- 304 stainless steel is suitable for many indoor and mild outdoor architectural applications.
- 316 stainless steel is generally recommended for coastal areas, marine structures and locations exposed to salt spray.
- The presence of molybdenum in 316 improves resistance to chloride corrosion.
- Surface finish and fabrication quality also affect long-term corrosion performance.
Why Coastal Environments Are Challenging for Stainless Steel
Stainless steel forms a passive chromium oxide film that protects the surface from corrosion. However, coastal environments contain high levels of chloride ions from seawater and salt spray, which can damage this protective layer under certain conditions.
When chloride ions penetrate the passive film, localized corrosion may occur. This type of corrosion is commonly known as pitting corrosion and can create small but deep corrosion points on stainless steel surfaces.
Architectural components such as balustrades and handrails are especially affected because they are continuously exposed to moisture, airborne salt particles and temperature changes.
Main Corrosion Risks in Coastal Architecture
- Pitting corrosion caused by chloride ions.
- Crevice corrosion in joints and connections.
- Weld area corrosion caused by improper cleaning or treatment.
- Surface contamination from iron particles or construction debris.
304 vs 316 Stainless Steel Flat Bar Chemical Composition
The main chemical difference between 304 and 316 stainless steel is the addition of molybdenum (Mo) in 316 stainless steel. This alloying element improves resistance to chloride environments and localized corrosion.
| Element | 304 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Chromium (Cr) | 18–20% | 16–18% |
| Nickel (Ni) | 8–10.5% | 10–14% |
| Molybdenum (Mo) | Not intentionally added | 2–3% |
| Corrosion Resistance | Good general corrosion resistance | Higher chloride corrosion resistance |
Why Does Molybdenum Improve 316 Stainless Steel Performance?
Molybdenum increases the stability of the passive layer and improves resistance against chloride-induced pitting and crevice corrosion. This makes 316 stainless steel more suitable for marine and coastal applications compared with 304 stainless steel.
However, 316 stainless steel is not completely corrosion-proof. Long-term performance still depends on environmental conditions, surface finish, fabrication quality and maintenance practices.
304 vs 316 Stainless Steel Flat Bar Corrosion Performance
| Environment | 304 Flat Bar | 316 Flat Bar |
|---|---|---|
| Indoor architecture | Excellent | Excellent |
| Urban outdoor structures | Good | Very good |
| Coastal buildings | May require higher maintenance | Preferred choice |
| Marine environment | Limited suitability | Recommended |
Critical Pitting Temperature (CPT) and Stainless Steel Corrosion Resistance
Critical Pitting Temperature (CPT) is an important indicator used to evaluate the resistance of stainless steel against localized pitting corrosion. It represents the temperature at which stable pitting corrosion begins under specific testing conditions.
In chloride-containing environments, stainless steel with a higher CPT generally shows better resistance to pitting corrosion. This is one reason why 316 stainless steel is often selected for coastal architecture and marine applications.
| Material | Typical CPT Range | General Performance in Chloride Environment |
|---|---|---|
| 304 Stainless Steel | Approximately 20–25°C* | Suitable for general environments, limited in severe salt exposure |
| 316 Stainless Steel | Approximately 25–35°C* | Improved resistance due to molybdenum addition |
*Typical values vary depending on testing method, chloride concentration, surface condition and material composition. Actual performance should be evaluated according to the specific application environment.
Why CPT Matters for Coastal Balustrades and Handrails
Outdoor architectural components near the ocean are frequently exposed to salt deposits, humidity and temperature cycles. These conditions can accelerate chloride-related corrosion, especially in areas where water remains trapped.
For stainless steel balustrades and handrails installed near coastlines, selecting a material with better pitting resistance can reduce maintenance requirements and improve long-term appearance.

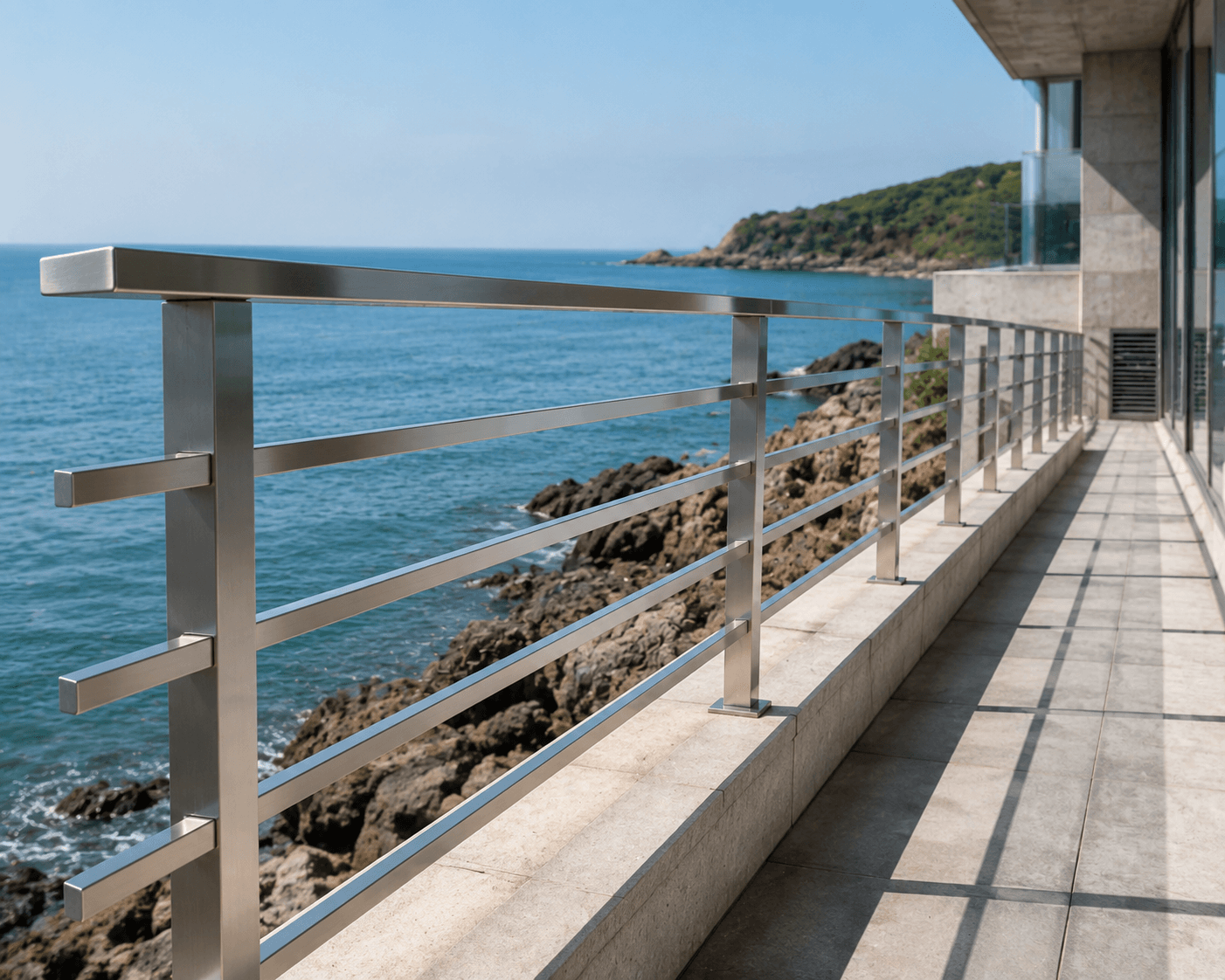

Applications of Stainless Steel Flat Bar in Coastal Architecture
Stainless steel flat bars are widely used in coastal architecture because they provide structural strength, modern appearance and corrosion resistance. Common applications include exterior architectural systems and marine-related structures.
| Application | Recommended Grade | Considerations |
|---|---|---|
| Balustrades and Handrails | 316 preferred for coastal areas | Consider salt exposure, welding quality and surface finish |
| Curtain Wall Supports | 304 / 316 depending on environment | Outdoor exposure level determines grade selection |
| Marine Structures | 316 or higher corrosion-resistant grades | Continuous chloride exposure requires enhanced resistance |
| Exterior Decoration | 304 or 316 | Appearance and maintenance requirements should be considered |
Surface Treatment Recommendations for Coastal Stainless Steel Flat Bar
Surface treatment has a significant influence on the appearance, cleanliness and maintenance requirements of stainless steel flat bars used in coastal architecture.
Although the stainless steel grade determines basic corrosion resistance, a properly finished surface helps reduce contamination retention and improves long-term appearance.
No.4 Brushed Finish
No.4 brushed finish is commonly used for architectural applications because it provides a uniform satin appearance and hides minor surface marks better than mirror finishes.
It is widely used for handrails, balustrades and decorative stainless steel structures.
Mirror Finish
Mirror polished stainless steel provides a highly reflective appearance and is often selected for premium architectural projects.
However, mirror surfaces require more frequent cleaning because fingerprints, salt deposits and environmental contamination are easier to observe.
Passivation Treatment
Passivation removes free iron contaminants from the stainless steel surface and helps restore the natural passive chromium oxide layer.
For coastal applications, proper cleaning, passivation and surface protection procedures can improve long-term corrosion performance.
304 vs 316 Flat Bar Surface and Maintenance Considerations
| Factor | 304 Stainless Steel | 316 Stainless Steel |
|---|---|---|
| Salt Spray Exposure | Requires more frequent maintenance | Better resistance |
| Cleaning Requirement | Regular cleaning recommended | Still requires maintenance in marine areas |
| Architectural Appearance | Excellent | Excellent |
304 vs 316 Stainless Steel Flat Bar Selection Guide for Coastal Projects
Choosing between 304 and 316 stainless steel flat bar requires evaluating environmental conditions, corrosion exposure, maintenance expectations and project service life requirements.
| Application Environment | Recommended Grade | Reason |
|---|---|---|
| Indoor architectural decoration | 304 Stainless Steel | Good corrosion resistance and cost efficiency |
| Urban outdoor structures | 304 / 316 | Depends on pollution level and maintenance requirements |
| Coastal buildings near seawater | 316 Stainless Steel | Improved chloride corrosion resistance |
| Marine structures and salt spray zones | 316 Stainless Steel | Better resistance to pitting and crevice corrosion |
Stainless Steel Flat Bar Standards for Architectural Applications
Stainless steel flat bars used in construction and architectural applications are commonly supplied according to international standards that define chemical composition, mechanical properties, dimensions and testing requirements.
| Standard | Application |
|---|---|
| ASTM A276 | Stainless steel bars and shapes for general applications |
| ASTM A484 | General requirements for stainless steel bars and shapes |
| EN 10088 | European stainless steel grades and product specifications |
| EN 10278 | Dimensions and tolerances for bright steel products |
Coastal Stainless Steel Project Checklist
Before selecting stainless steel flat bar for coastal architecture, engineers and buyers should consider the following factors:
- Distance from seawater and actual salt exposure level.
- Required service life of the structure.
- Stainless steel grade selection (304 or 316).
- Surface finish requirements.
- Welding process and post-weld cleaning.
- Inspection and maintenance requirements.
FAQ
Is 316 stainless steel flat bar better for coastal areas?
Yes. 316 stainless steel flat bar is generally preferred for coastal areas because its molybdenum content provides improved resistance against chloride-induced pitting corrosion.
Can 304 stainless steel be used for outdoor balustrades?
304 stainless steel can be used for many outdoor applications, especially in mild environments. However, areas with high salt exposure or close proximity to seawater usually require 316 stainless steel.
What stainless steel is best for marine handrails?
316 stainless steel is commonly selected for marine handrails because of its higher resistance to chloride corrosion and better long-term performance in saltwater environments.
Does surface finish affect stainless steel corrosion resistance?
Yes. A smooth, clean surface generally improves corrosion resistance by reducing areas where contaminants and chloride deposits can accumulate.
How should coastal stainless steel be maintained?
Regular cleaning with fresh water and removal of salt deposits can help maintain stainless steel appearance and extend service life in coastal environments.
Stainless Steel Flat Bar Solutions from SAKY STEEL
SAKY STEEL supplies stainless steel flat bars for architectural, industrial and marine applications, including 304, 304L, 316 and 316L grades.
Available services include:
- Customized stainless steel flat bar sizes.
- Material certificates and traceability documentation.
- Surface finishing options.
- Cutting and processing services.
- Export packaging and delivery support.
For stainless steel flat bar requirements, please provide material grade, dimensions, quantity and application environment.
Conclusion
304 and 316 stainless steel flat bars are both valuable materials for architectural applications, but their performance differs in chloride-rich coastal environments.
304 stainless steel is suitable for general architectural projects, while 316 stainless steel provides better protection against pitting corrosion and is typically preferred for coastal balustrades, marine structures and exterior applications exposed to salt spray.
Selecting the correct stainless steel grade, surface finish and maintenance strategy helps improve the durability and appearance of coastal architectural structures.
