Cold Drawn Stainless Steel Hex Bar Tolerances (h11) and Straightness: A Buyer’s Checklist

Introduction

Cold drawn stainless steel hex bars are widely used for precision machining applications including hydraulic fittings, valve components, instrumentation parts and automatic CNC machining because of their accurate dimensions, excellent surface condition and efficient material utilization.

For industrial buyers, purchasing stainless steel hex bars is not only about selecting the correct material grade. Dimensional tolerance, straightness, chamfer condition and surface quality directly affect machining efficiency, assembly accuracy and final component performance.

A hex bar that does not meet dimensional requirements may cause additional machining allowance, increased production costs or difficulties during automatic feeding processes. Therefore, buyers should establish a clear inspection checklist before accepting cold drawn hex bar shipments.

This guide explains cold drawn stainless steel hex bar tolerance requirements, h11 tolerance meaning, straightness inspection methods, chamfer acceptance criteria and common quality problems found during procurement.

Cold Drawn Stainless Steel Hex Bar Basic Information

Item	Description
Product	Cold drawn stainless steel hexagonal bar
Common Grades	303, 304, 316, 316L, Duplex 2205
Manufacturing Process	Cold drawing after hot rolled or peeled processing
Common Standards	ASTM A276, ASTM A479, EN 10088
Main Inspection Items	Dimension, straightness, chamfer, surface and material verification

Cold Drawn Hex Bar Tolerance Inspection Checklist

Dimensional tolerance is one of the most important acceptance criteria for cold drawn hex bars. Buyers should clearly define the required tolerance before production because different applications have different precision requirements.

For precision machining applications, h11 tolerance is commonly referenced because it provides controlled dimensional accuracy while maintaining reasonable production cost.

What Does h11 Tolerance Mean?

The h11 tolerance designation comes from the ISO tolerance system. It defines the allowable dimensional deviation range of the finished product.

For hex bars, buyers should confirm whether the tolerance applies to the width across flats, corner measurement or another specified dimension.

Inspection Point	Inspection Method	Possible Issue
Width Across Flats	Caliper or micrometer measurement	Oversize or undersize dimension
Hex Shape Accuracy	Hex gauge inspection	Uneven sides or deformation
Batch Consistency	Sampling inspection	Size variation between bars

Stainless Steel Hex Bar Straightness Inspection Checklist

Straightness is a critical quality requirement for cold drawn stainless steel hex bars, especially when the material is used for CNC machining, automatic feeding systems and precision hydraulic components.

A hex bar with excessive bending may cause vibration during machining, inaccurate cutting dimensions and increased material waste. Therefore, buyers should include straightness inspection as part of the incoming material acceptance process.

What Is Straightness of Hex Bar?

Straightness describes the maximum deviation between the actual bar axis and a theoretical straight line. It measures how much a stainless steel hex bar bends along its length.

The acceptable straightness value depends on product size, manufacturing process, customer drawings and application requirements.

Inspection Item	Inspection Method	Common Problems
Overall Straightness	Place bar on inspection table and measure deviation	Bent bar affecting machining accuracy
Local Bending	Check middle and end sections separately	Uneven cutting or feeding problems
End Straightness	Inspect both ends after cutting	Difficulty in clamping and positioning

How to Check Hex Bar Straightness

Common straightness inspection methods include:

• Inspection Table Method:
  Place the hex bar on a flat inspection surface and measure the maximum gap.
• V-Block Measurement:
  Support the bar using V-blocks and check deviation with a dial indicator.
• Full Length Inspection:
  Measure multiple points along the entire bar length for production batches.

Stainless Steel Hex Bar Chamfer Inspection Checklist

Chamfer quality directly affects machining efficiency, operator safety and component appearance. A properly finished chamfer helps reduce sharp edges and improves the starting condition for CNC processing.

Chamfer Inspection Item	Acceptance Requirement	Possible Defect
Chamfer Size	Uniform size according to drawing requirement	Oversized or insufficient chamfer
Chamfer Angle	Consistent angle around the edge	Uneven machining angle
Edge Condition	Smooth edge without dangerous burrs	Sharp edge or burr remaining
End Surface	Clean cutting surface	Rough cutting marks

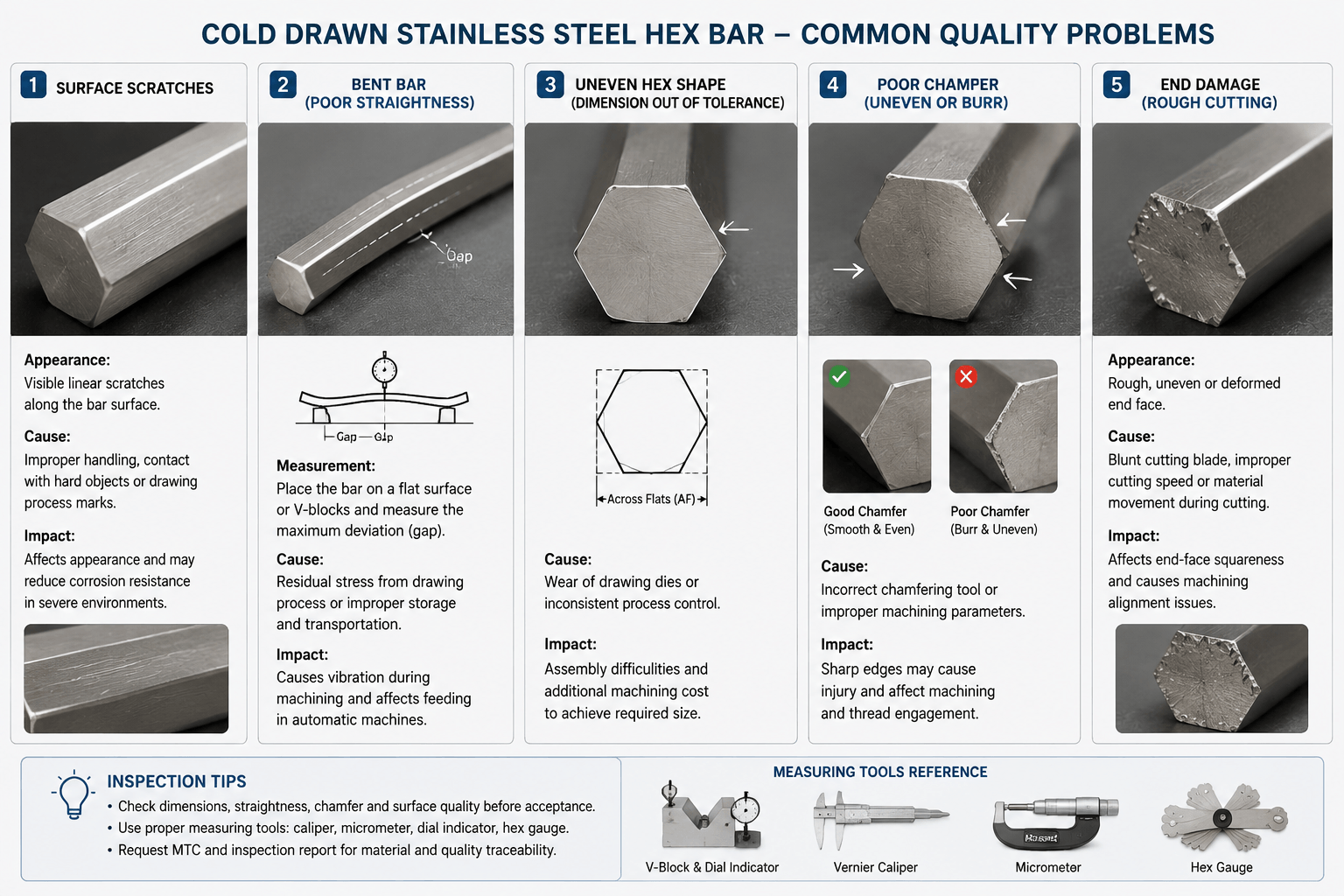

Common Quality Problems of Cold Drawn Hex Bars

During procurement, stainless steel hex bars may experience quality issues caused by raw material conditions, drawing process, handling or machining preparation.

Quality Problem	Possible Cause	Impact on Application
Surface Scratches	Poor handling or drawing surface damage	Affects appearance and machining quality
Hex Dimension Variation	Incorrect process control	Assembly and machining problems
Excessive Bending	Drawing stress or improper storage	Poor CNC feeding performance
Uneven Chamfer	Incorrect finishing operation	Additional machining required

Cold Drawn Hex Bar vs Ground Hex Bar Accuracy Comparison

Cold drawing and grinding are two different finishing methods used to improve stainless steel hex bar accuracy. The correct choice depends on dimensional requirements, surface quality expectations and application needs.

Feature	Cold Drawn Hex Bar	Ground Hex Bar
Manufacturing Method	Plastic deformation through drawing dies	Material removal through grinding process
Dimensional Accuracy	Suitable for general precision machining	Higher accuracy for demanding applications
Surface Finish	Smooth cold drawn surface	Improved surface finish and consistency
Cost	More economical for standard requirements	Higher cost due to additional processing
Typical Application	Hydraulic fittings, CNC parts, general precision components	High precision instrumentation and critical components

Final Buyer Acceptance Checklist for Stainless Steel Hex Bar

Before accepting a shipment of cold drawn stainless steel hex bars, buyers should verify material, dimensions and surface requirements according to the purchase specification.

Inspection Item	Acceptance Check
Material Grade	Confirm grade through MTC and PMI when required
Hex Dimension	Verify width across flats and tolerance requirement
h11 Tolerance	Check dimensional deviation according to agreed specification
Straightness	Measure bending deviation along full bar length
Chamfer	Confirm consistent chamfer size and no burrs
Surface Condition	Check scratches, cracks and surface defects

Material Documents and Quality Reports

For hydraulic fittings, valves and precision machined components, buyers often require material traceability and inspection documentation.

Document	Purpose
Material Test Certificate (MTC)	Confirms chemical composition and mechanical properties
PMI Report	Verifies alloy identification
Dimensional Inspection Report	Records size, tolerance and straightness results
Quality Inspection Report	Provides overall shipment quality verification

FAQ

What is h11 tolerance for cold drawn hex bars?

h11 is a tolerance class used to define allowable dimensional variation. The actual tolerance value depends on nominal size and applicable tolerance standards.

How is stainless steel hex bar straightness measured?

Straightness is commonly checked by placing the bar on an inspection surface or using V-blocks with measuring instruments to determine bending deviation.

Why is chamfer important for hex bars?

A proper chamfer improves handling safety, reduces burr problems and helps improve machining efficiency during component production.

Which stainless steel grades are commonly used for hex bars?

Common grades include 303, 304, 316, 316L and Duplex 2205 depending on corrosion resistance and application requirements.

What should buyers provide when ordering stainless steel hex bars?

Buyers should provide material grade, hex size, tolerance, length, quantity, surface requirements and inspection requirements.

Conclusion

Cold drawn stainless steel hex bar quality depends on more than material grade selection. Dimensional tolerance, straightness, chamfer condition and surface quality all influence machining performance and final component reliability.

A clear inspection checklist helps buyers reduce quality risks and ensure that stainless steel hex bars meet production requirements for hydraulic fittings, valves and precision components.

By controlling tolerance requirements and verifying inspection results before acceptance, manufacturers can achieve better machining efficiency, lower production costs and more consistent finished products.
