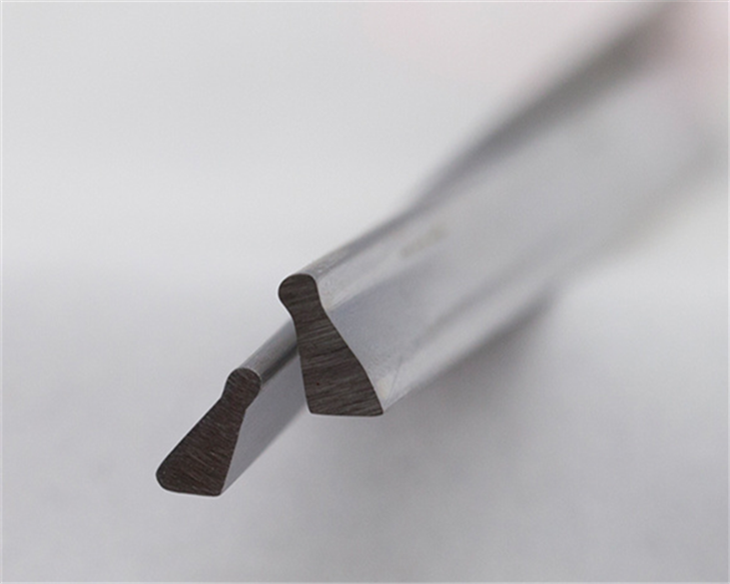

Stainless Steel Screen Drum Profile Wire
Short Description:
Stainless Steel Screen Drum Profile Wire is a precision-shaped wire used in rotary screen drums, wedge wire drums, filter cylinders and industrial screening equipment. SAKY STEEL supplies custom profile wire in 304, 316 and other stainless steel grades with controlled cross section, width, height, tolerance, surface condition and delivery form according to screen design and customer drawings.
Stainless Steel Screen Drum Profile Wire Overview
Stainless Steel Screen Drum Profile Wire is a precision-shaped stainless steel wire used in rotary screen drums, wedge wire drums, filter cylinders and industrial screening assemblies.
The profile wire forms part of the working screen structure and can be designed according to filtration slot, welding method, drum diameter, mechanical load and operating environment.
SAKY STEEL supplies screen drum profile wire in 304, 316 and other agreed stainless steel grades. Cross-sectional shape, width, height, radius, tolerance, surface condition and delivery form can be customized according to customer drawings and screen-manufacturing requirements.
Screen Drum Profile Wire Quick Information
Product: Stainless Steel Screen Drum Profile Wire
Application: Rotary Screen Drum / Wedge Wire Drum / Filter Cylinder
Common Grades: 304 / 316 / Other Agreed Grades
Profile: Custom Screen Profile / Wedge / Shaped Section
Supply Form: Coil / Spool / Straight Length / Cut Length
Surface: Bright / Smooth / As Produced
Processing: Cold Drawing / Profile Forming / Straightening / Cutting
Customization: Width / Height / Radius / Angle / Tolerance
Screen Drum Profile Design
Profile geometry should be selected according to the finished screen structure. The working surface, support geometry and welding contact area can all influence slot accuracy, structural strength and drum performance.
| Profile Parameter | Description |
|---|---|
| Profile Width | Overall working or support width according to screen design |
| Profile Height | Overall cross-sectional height |
| Working Surface | Surface involved in slot formation or material contact |
| Welding Area | Contact section used for welded screen construction |
| Radius / Angle | Controlled according to cross-sectional drawing |
| Tolerance | Critical dimensions according to approved drawing |
Role of Profile Wire in Screen Drums
| Function | Purpose |
|---|---|
| Slot Formation | Helps define filtration or screening openings in the finished drum |
| Screen Surface | Creates the working surface for liquid-solid or particle separation |
| Welding Contact | Provides controlled contact with support profiles during screen assembly |
| Structural Stability | Contributes to finished drum strength and dimensional stability |
Custom Screen Drum Profile Wire
Screen drum profile wire is normally selected according to the finished drum design rather than one universal profile size. Cross section, material and dimensional tolerance can be reviewed according to customer drawings.
| Custom Profile
Drawing-based cross-sectional geometry |
Slot Control
Profile dimensions matched to screen design |
Precision Tolerance
Critical dimensions controlled |
304 vs 316 Screen Drum Profile Wire
| Grade | Main Characteristic | Typical Selection |
|---|---|---|
| 304 | Good general corrosion resistance and economical material selection | General screening, food processing and industrial filtration applications |
| 316 | Improved resistance in chloride-containing and more corrosive environments | Water treatment, chemical processing, marine and demanding wet-service applications |
Screen Drum Profile Wire Manufacturing
The manufacturing route depends on stainless steel grade, profile geometry, dimensional tolerance, surface condition and required delivery form.
For profile wire used in welded screen drums, consistent cross-sectional geometry is important for stable slot formation and repeatable welding.
Inspection & Quality Control
| Inspection Item | Purpose |
|---|---|
| Material Verification | Confirm stainless steel grade and material traceability |
| Profile Dimensions | Verify width, height and critical cross-sectional dimensions |
| Cross-Section Geometry | Compare finished profile against drawing requirements |
| Surface Inspection | Check surface condition and visible forming defects |
| Straightness | Checked when supplied in straight-length form |
| Documentation | MTC and dimensional inspection documentation as agreed |
Applications of Stainless Steel Screen Drum Profile Wire
| Rotary Drum Screens
Continuous screening and separation equipment |
Filter Cylinders
Cylindrical filtration structures |
Water Treatment
Liquid-solid separation systems |
| Food Processing
Screening and separation equipment |
Industrial Filtration
Process screening components |
Custom Screen Drums
Drawing-based drum assemblies |
Screen Drum Profile Wire Packaging
Packaging is selected according to profile dimensions, delivery form, surface condition, unit weight and transportation requirements.
Screen drum profile wire can be supplied in coils, spools, straight-length bundles or export cases according to section size and shipment requirements.
Frequently Asked Questions
What is screen drum profile wire?
It is precision-shaped wire used to form working or structural elements of rotary screen drums, filter cylinders and welded screening assemblies.
Can the cross section be customized?
Yes. Profile width, height, working surface, welding area, radius and dimensional tolerance can be reviewed according to screen drawings.
Can 304 and 316 profile wire be supplied?
Yes. 304 and 316 are common selections. Other stainless steel grades can be reviewed according to corrosion conditions and production requirements.
Can screen drum wire be supplied in coils?
Yes. Depending on section dimensions and production feasibility, profile wire can be supplied in coils, spools, straight lengths or cut lengths.
Can MTC and dimensional inspection records be supplied?
Yes. Material certificates and agreed dimensional inspection documentation can be supplied according to confirmed order requirements.
Request a Stainless Steel Screen Drum Profile Wire Quote
Send your profile drawing, stainless steel grade, cross-sectional dimensions, required tolerance, delivery form and quantity. SAKY STEEL will review the screen drum profile requirements before confirming the offer.
