304 stainless steel round bar
Saky Steel is a leading manufacturer of stainless steel bright round bars. Our stainless steel bright round bars has manufactured as per international standard for any machining and industrial applications. Our stainless steel bright round bars are one of the most appreciable products for various applications like machining tools, fasteners, automotive applications, pump shafts, motor shafts, valve and many more.
Our stainless steel bright bars is one of the most extensive range of bars for various components manufacturing in the market. It has strong corrosion resistance ability and low maintenance characteristics which make it an absolute product for a wide range of applications.
Our stainless steel bright round bars have various grades and different size. We also provide manufacturing service as per client requirements.
|Stainless Steel Round Bar Grades:|
Our bright round bars available in various grades including stainless steel 201, 202, 204Cu, 304, 304L, 309, 316, 316L, 316Ti, 321, 17-4ph, 15-5ph and 400 Series.
|Specification:||ASTM A/ASME A276 A564|
|Stainless Steel Round Bars:||4mm to 500mm|
|Stainless Steel Bright Bars:||4mm to 300mm|
|Supply Condition:||Solution Annealed, Soft Annealed, Solution Annealed, Quenched & Tempered, Ultrasonic Tested, Free from Surface Defects and Cracks, Free from Contamination|
|Length:||1 to 6 meters & as per customer requirement|
|Finish:||Cold Drawn, Centreless Ground, Peeled & Polished, Rough Turned|
|Packing:||Each steel bar has the singal, and several will be bundled by weaving bag or as per requirement.|
|Condition||cold drawn & polished||cold drawn, centreless ground & polished||cold drawn, centreless ground & polished (strain hardened)|
|Grades||201, 202, 303, 304, 304l, 310, 316, 316l, 32, 410, 420, 416, 430, 431, 430f & others||304, 304l, 316, 316l|
|Diameter (size)||2 mm to 5mm (1/8″ to 3/16″)||6mm to 22m (1/4″ to 7/8″)||10mm to 40mm (3/8″ to 1-1/2″)|
|Diameter tolerance||H9 (DIN 671),H11
|H9 (DIN 671)
|H9 (DIN 671),H11
|Length||3/4/5. 6/6 meter (12/14ft/20feet)||3/4/5. 6/6 meter (12/14ft/20feet)||3/4/5. 6/6 meter (12/14ft/20feet)|
|Length tolerance||-0/+200mm or +100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”)
|-0/+200mm or +100mm or +50mm
(-0 ”/+1 feet or +4 ” or 2 ”)
(-0 ”/+1 feet)
|Stainless Steel 304/304L Bar Equivalent Grades:|
|SS 304||1.4301||S30400||SUS 304||304S31||08Х18Н10||Z7CN18‐09||X5CrNi18-10|
|SS 304L||1.4306 / 1.4307||S30403||SUS 304L||3304S11||03Х18Н11||Z3CN18‐10||X2CrNi18-9 / X2CrNi19-11|
|SS 304 / 304L Bar Chemical Composition and Mechanical properties:|
|SS 304||0.08 max||2 max||0.75 max||0.045 max||0.030 max||18 – 20||-||8 – 11||-|
|SS 304L||0.035 max||2 max||1.0 max||0.045 max||0.03 max||18 – 20||-||8 – 13||-|
|Density||Melting Point||Tensile Strength||Yield Strength (0.2%Offset)||Elongation|
|8.0 g/cm3||1400 °C (2550 °F)||Psi – 75000 , MPa – 515||Psi – 30000 , MPa – 205||35 %|
|304 stainless steel round bar feature：|
304 stainless steel is an austenitic stainless steel alloy that is widely used in a variety of applications due to its excellent corrosion resistance, good mechanical properties, and high temperature resistance. The 304 stainless steel round bar is a commonly used product made from this alloy, and some of its features include:
1. Corrosion resistance: The 304 stainless steel round bar has excellent resistance to corrosion and oxidation in various environments, including chemical, marine, and industrial atmospheres.
2. High strength: The 304 stainless steel round bar has high strength and toughness, making it suitable for use in applications where high strength and durability are required.
3. Easy to machine: The 304 stainless steel round bar can be easily machined using conventional methods, making it suitable for use in a variety of manufacturing processes.
4. Good welding and forming properties: The 304 stainless steel round bar has good welding and forming properties, making it easy to work with and suitable for a wide range of applications.
5. Temperature resistance: The 304 stainless steel round bar can withstand high temperatures up to 870°C (1600°F) without losing its properties, making it ideal for high-temperature applications.
6. Hygienic: The 304 stainless steel round bar is hygienic and easy to clean, making it suitable for use in the food and beverage industry, medical equipment, and other applications where cleanliness is essential.
|SAKY STEEL’S Quality Assurance (including both Destructive and Non-Destructive) :|

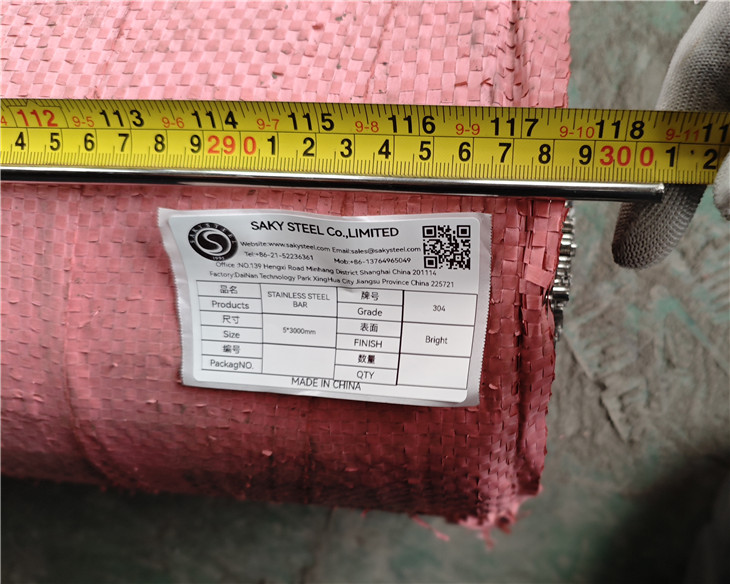

1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Ultrasonic test
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Impact analysis
10. Metallography Experimental Test

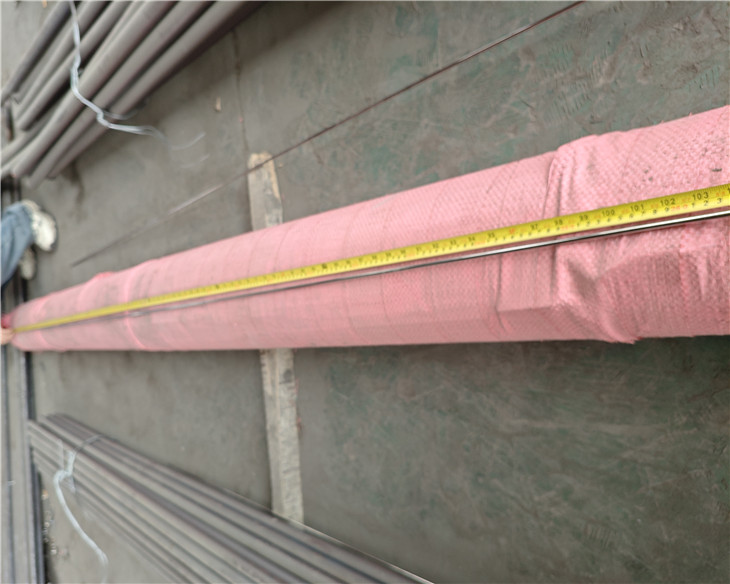

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
|304 stainless steel round bars have a wide range of applications due to their excellent properties, including:|
1. Aerospace industry: The 304 stainless steel round bar is used in the manufacturing of aircraft structures, engine parts, and other components that require high strength, corrosion resistance, and good weldability.
2. Food and beverage industry: The 304 stainless steel round bar is commonly used in the manufacturing of equipment for food processing, storage, and transportation due to its excellent hygienic properties and corrosion resistance.
3. Chemical industry: The 304 stainless steel round bar is used in the manufacturing of chemical processing equipment, such as reactors, heat exchangers, and pipelines, due to its excellent corrosion resistance to various chemicals.
4. Medical equipment: The 304 stainless steel round bar is used in the manufacturing of medical equipment, such as surgical instruments, implants, and devices, due to its excellent corrosion resistance and biocompatibility.
5. Construction industry: The 304 stainless steel round bar is used in the construction of buildings, bridges, and other infrastructure projects due to its high strength, durability, and corrosion resistance.
6. Automotive industry: The 304 stainless steel round bar is used in the manufacturing of automotive components, such as exhaust systems, engine parts, and suspension components, due to its excellent corrosion resistance and high temperature resistance.
7. Petrochemical industry: The 304 stainless steel round bar is used in the manufacturing of petrochemical processing equipment, such as pipelines, valves, and tanks, due to its excellent corrosion resistance and high temperature resistance.
