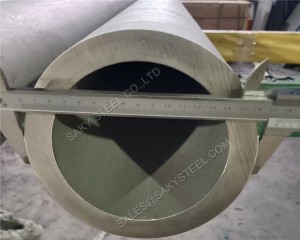

316L Stainless Steel Seamless Pipe
Short Description:
316L Stainless Steel Seamless Pipe is a low-carbon molybdenum-bearing austenitic stainless steel pipe with excellent corrosion resistance and good weldability. SAKY STEEL supplies ASTM A312 TP316L seamless pipe in customized OD, wall thickness and length for chemical processing, oil & gas, marine, food processing and industrial piping applications.
316L Stainless Steel Seamless Pipe Overview
316L Stainless Steel Seamless Pipe is a low-carbon molybdenum-bearing austenitic stainless steel pipe designed for applications requiring good corrosion resistance, reliable pressure performance and welded fabrication. Compared with 304L, the molybdenum addition improves resistance to pitting and crevice corrosion in many chloride-containing environments.
SAKY STEEL supplies ASTM A312 TP316L seamless stainless steel pipe in customized outside diameter, wall thickness and length. Additional dimensional, surface, testing and documentation requirements can be reviewed according to industrial piping and project specifications.
316L Seamless Pipe Quick Information
Grade: 316L / UNS S31603
Standard: ASTM A312 / ASME SA312
Product: Stainless Steel Seamless Pipe
Manufacturing: Seamless
Surface: Pickled / Bright / Polished as Required
Dimensions: OD, wall thickness and length customized according to specification
Testing: Hydrostatic / NDT / PMI when specified
Documentation: MTC / EN 10204 3.1 available as required
316L Stainless Steel Seamless Pipe Specifications
| Item | Specification |
|---|---|
| Grade | 316L / UNS S31603 |
| Primary Standard | ASTM A312 / ASME SA312 |
| Product Type | Seamless Stainless Steel Pipe |
| Outside Diameter | Customized According to Order Requirements |
| Wall Thickness | Customized According to Pressure and Project Requirements |
| Length | Random / Fixed / Customized Length |
| End | Plain End / Beveled End / Other Agreed Preparation |
| Surface | Pickled / Bright / Polished as Required |
| Heat Treatment | Solution Heat Treated According to Applicable Specification |
| Inspection | Dimensional / Hydrostatic / NDT / PMI as Specified |
| Certificate | MTC / EN 10204 3.1 as Required |
Why Choose 316L Stainless Steel Seamless Pipe?
| Property | Procurement Benefit |
|---|---|
| Low Carbon 316L Grade | Lower carbon content improves resistance to sensitization after welding. |
| Molybdenum Alloying | Provides improved pitting and crevice corrosion resistance compared with 304L in many chloride-containing environments. |
| Seamless Construction | Eliminates the longitudinal weld seam and is commonly selected for pressure piping and demanding process service. |
| Good Fabrication Performance | Suitable for welding, forming and fabricated piping systems when appropriate procedures are used. |
316L Stainless Steel Chemical Composition
The low carbon content and molybdenum addition are two of the main reasons 316L is widely selected for corrosion-resistant piping systems. Actual chemistry should be verified against the applicable specification and material certificate.
| Grade | C | Cr | Ni | Mo | Mn | Si |
|---|---|---|---|---|---|---|
| 316L | ≤0.030% | 16.0-18.0% | 10.0-14.0% | 2.0-3.0% | ≤2.0% | ≤0.75% |
Mechanical Properties
Mechanical requirements depend on the applicable pipe specification and product condition. For ASTM A312 TP316L piping, final values should be confirmed against the material certificate for the supplied lot.
| Property | ASTM A312 TP316L Reference |
|---|---|
| Tensile Strength | ≥485 MPa |
| Yield Strength | ≥170 MPa |
| Elongation | According to applicable product and specimen requirements |
304L vs 316L vs 317L Stainless Steel Pipe
The appropriate stainless steel pipe grade depends on the process medium, chloride concentration, temperature, fabrication requirements and project budget. 316L is widely selected when better corrosion resistance than 304L is required without moving to a more highly alloyed grade.
| Grade | Main Characteristic | Relative Cost | Typical Selection |
|---|---|---|---|
| 304L | General corrosion resistance with low carbon content for welded fabrication | Lower | General industrial piping and less aggressive environments |
| 316L | Molybdenum-bearing grade with improved pitting and crevice corrosion resistance | Medium | Chemical processing, marine, food, pharmaceutical and industrial process piping |
| 317L | Higher molybdenum content for more demanding corrosive environments | Higher | More aggressive chemical and chloride-containing process environments |
316L Seamless Pipe vs Welded Pipe
Both seamless and welded 316L stainless steel pipes are used in industrial piping systems. The correct choice depends on pressure, dimensions, fabrication requirements, project specification and cost.
| Feature | Seamless Pipe | Welded Pipe |
|---|---|---|
| Manufacturing | Produced without a longitudinal weld seam | Produced from formed strip or plate with a welded seam |
| Pressure Service | Commonly selected for demanding pressure and process applications | Suitable for many piping applications when specified and manufactured correctly |
| Size Availability | Production range depends on seamless manufacturing capability | Often practical for larger diameters and broader dimensional combinations |
| Cost | Generally higher | Generally more economical for comparable specifications |
| Typical Selection | Pressure piping, process lines and demanding service | General process piping and larger-diameter systems |
The final pipe type should follow the applicable engineering specification rather than being selected on manufacturing method alone.
316L Seamless Pipe Manufacturing Process
316L seamless pipe is produced without a longitudinal welded seam. The exact production route varies with pipe dimensions and required condition, but typical processing includes:
Cold working and sizing can be used to achieve the required dimensional accuracy and surface condition. Final heat treatment, cleaning and inspection are carried out according to the applicable product specification.
Inspection & Testing
Inspection should match the applicable pipe standard and purchase specification. Additional testing can be arranged when specified at the inquiry or order stage.
| Inspection Item | Purpose |
|---|---|

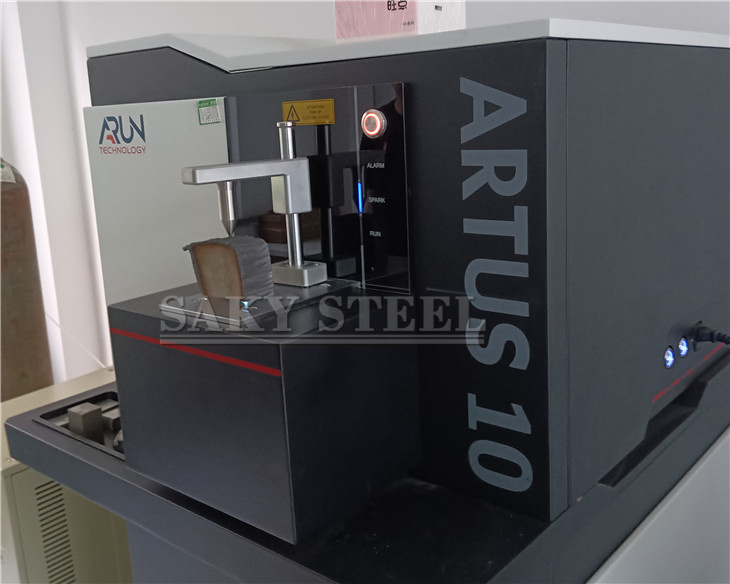

| Chemical Analysis | Verify TP316L chemical composition according to the applicable specification |

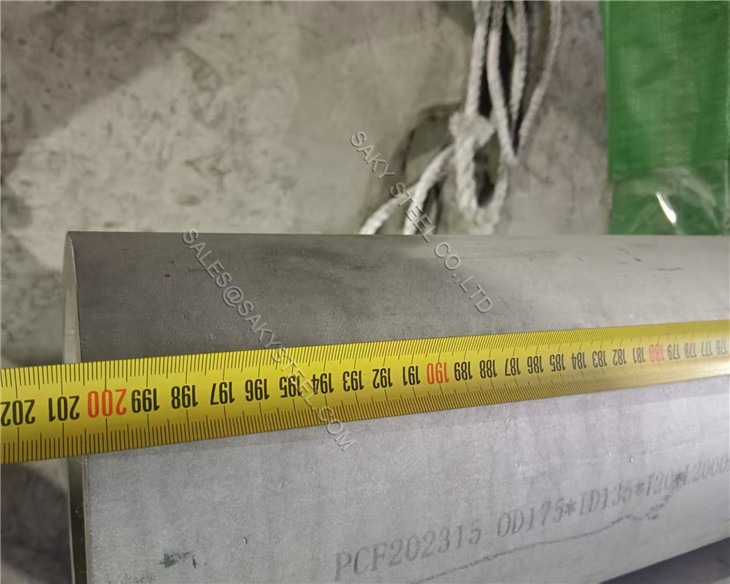

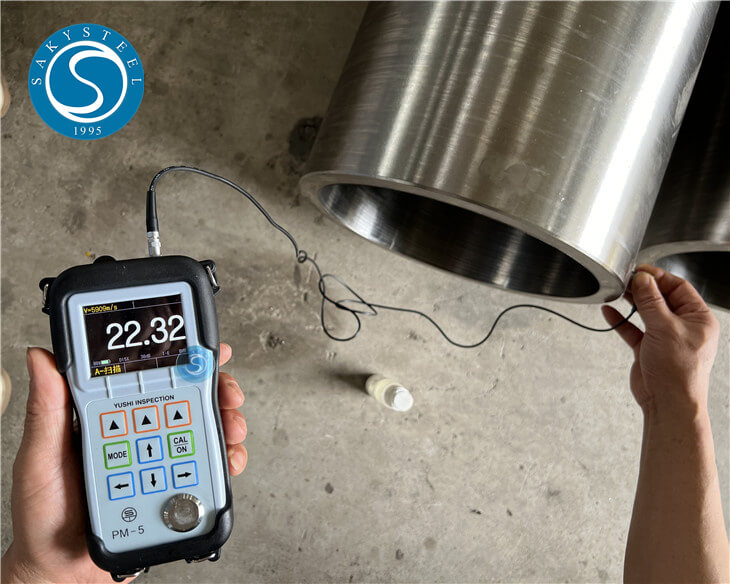

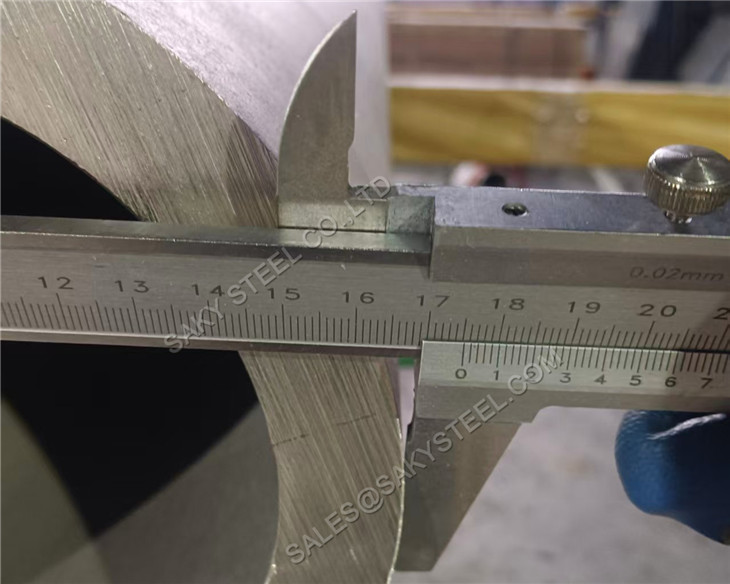

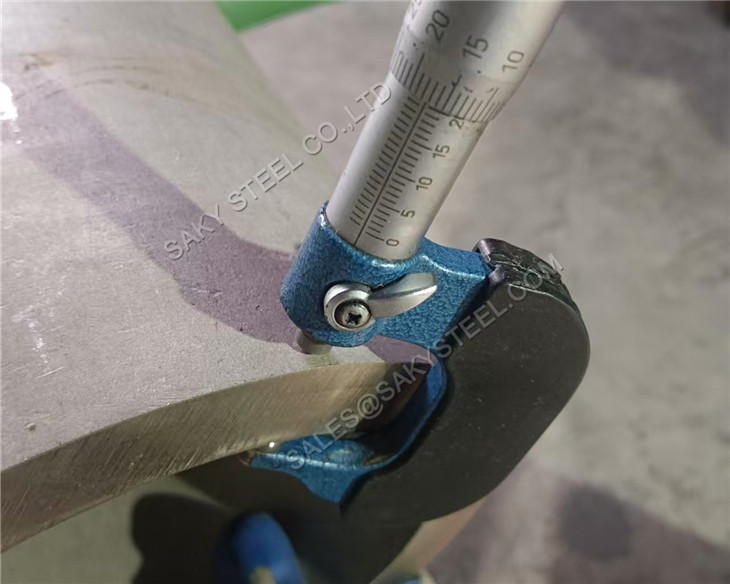

| Dimensional Inspection | Check outside diameter, wall thickness, length and dimensional tolerance |
| Mechanical Testing | Verify required tensile properties according to the product specification |
| Hydrostatic Test | Verify pipe pressure integrity when required by the applicable specification or purchase order |
| Nondestructive Testing | Applicable NDT can be performed according to the specified standard and inspection requirements |
| PMI | Positive material identification can be arranged when specified for grade verification |
| Surface Inspection | Check surface condition and visible defects before shipment |
| Material Documentation | MTC and EN 10204 3.1 documentation available according to confirmed order requirements |
Applications of 316L Stainless Steel Seamless Pipe
316L stainless steel seamless pipe is widely used in process and fluid-handling systems requiring corrosion resistance, reliable pressure performance and good fabrication characteristics.
| Chemical Processing Process piping and fluid transfer systems | Oil & Gas Process and utility piping systems | Marine Corrosion-resistant fluid piping |
| Food Processing Process and equipment piping | Pharmaceutical Process piping where specified | Industrial Equipment Pressure, heat and fluid systems |

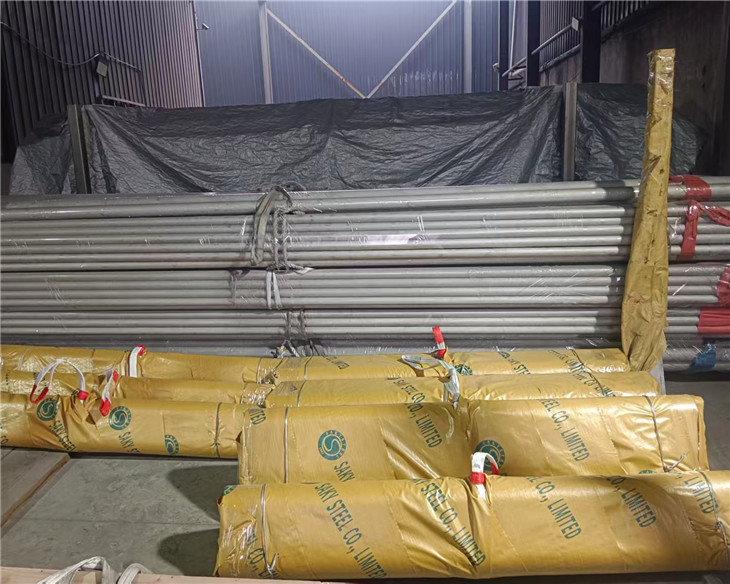

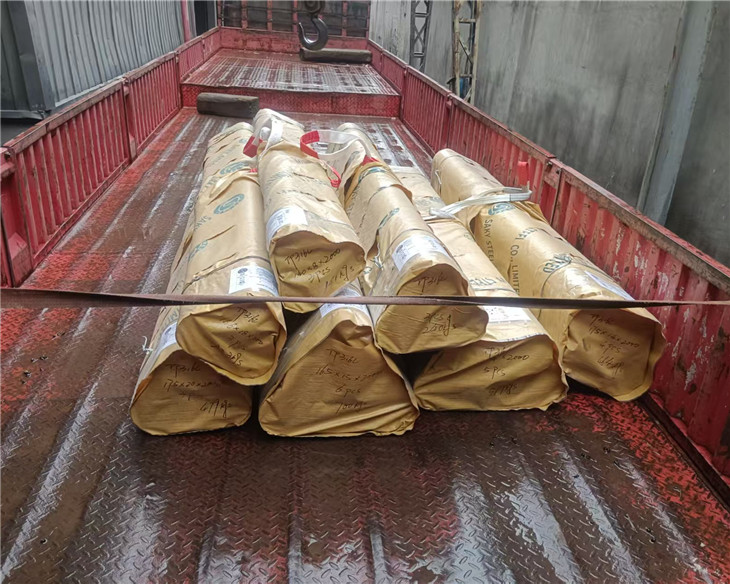

316L Seamless Pipe Packaging
Packaging is selected according to pipe diameter, wall thickness, length, surface condition and transportation requirements. Suitable protection helps reduce surface damage, contamination and handling risks during international shipment.
- Bundled pipe packaging for standard sizes.
- Protective wrapping where required.
- End protection according to pipe dimensions and end preparation.

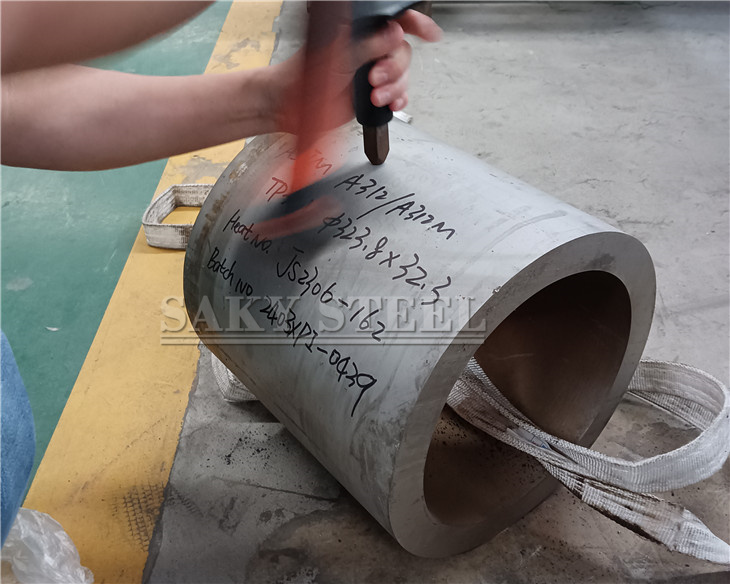

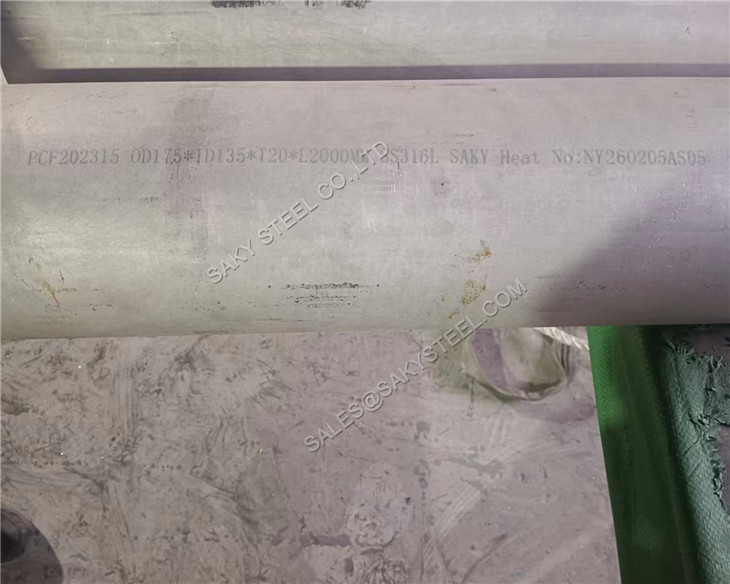

- Material grade, heat number and size identification.
- Wooden cases or suitable export packaging for smaller or precision products when required.
Information Required for a 316L Seamless Pipe Quote
For faster specification review and accurate pricing, please provide the following information whenever available.
| Required Information | Example / Description |
|---|---|
| Grade | 316L / UNS S31603 |
| Standard | ASTM A312 / ASME SA312 or Project Specification |
| Pipe Size | NPS / OD or Outside Diameter |
| Wall Thickness | Schedule / Nominal or Actual Wall Thickness |
| Length | Random / Fixed / Required Length |
| Quantity | Pieces / Meters / Total Weight |
| Surface | Pickled / Bright / Polished if Required |
| End Preparation | Plain / Beveled / Project-specific |
| Testing | Hydrostatic / NDT / PMI / Additional Requirements |
| Documentation | MTC / EN 10204 3.1 / Third-party Inspection if Required |
| Destination | Delivery Port / Country |
Frequently Asked Questions
What is ASTM A312 TP316L seamless pipe?
ASTM A312 TP316L is an austenitic stainless steel pipe specification commonly used for high-temperature and general corrosive-service piping. TP316L is the low-carbon version of 316 stainless steel and contains molybdenum for improved corrosion resistance.
What is the difference between 316 and 316L seamless pipe?
The main difference is carbon content. 316L has a lower maximum carbon content, which improves resistance to sensitization after welding. For welded process piping, 316L is therefore frequently specified.
Is 316L seamless pipe better than 304L?
Not for every application. 316L contains molybdenum and generally provides better resistance to pitting and crevice corrosion in chloride-containing environments, while 304L can be a more economical choice for less aggressive service conditions.
When should seamless pipe be selected instead of welded pipe?
Seamless pipe is commonly considered for demanding pressure and process applications or where the project specification requires a pipe without a longitudinal weld seam. Welded pipe remains suitable for many industrial services and can be more economical, particularly in larger sizes.
Can custom OD and wall thickness be supplied?
Yes. Outside diameter, wall thickness, length, surface and end preparation can be reviewed according to the requested specification and production feasibility.
Can hydrostatic testing and NDT be provided?
Yes. Hydrostatic testing and applicable nondestructive examination can be provided according to the product standard and confirmed purchase requirements.
Can you provide EN 10204 3.1 certification?
EN 10204 3.1 material documentation can be supplied when included in the confirmed order requirements.
Request a 316L Stainless Steel Seamless Pipe Quote
Send your OD or NPS, wall thickness or schedule, length, quantity, testing requirements and destination. SAKY STEEL will review the specification before confirming the offer.
