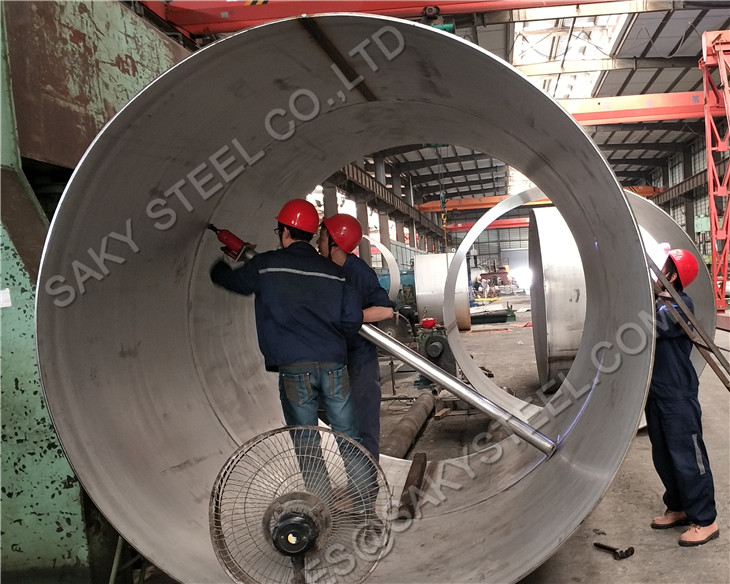

ASTM A312 TP316 Stainless Steel Welded Pipe Large Diameter Industrial Tube
Short Description:
ASTM A312 TP316 Stainless Steel Welded Pipe is an austenitic stainless steel welded tube designed for industrial applications requiring corrosion resistance, strength and reliable performance. Available in large diameters, customized lengths, surface finishes and inspection documentation.
316 Stainless Steel Welded Pipe Overview
ASTM A312 TP316 Stainless Steel Welded Pipe is an austenitic stainless steel pipe manufactured through welded production processes for industrial applications requiring corrosion resistance, strength and reliable performance. The addition of molybdenum provides improved resistance to chloride-containing environments compared with 304 stainless steel.
SAKY STEEL supplies 316 stainless steel welded pipes in various diameters, wall thicknesses and lengths. Large diameter welded pipes can be customized according to project requirements, including surface treatment, dimensional control and inspection documentation.
Material Selection Note
316 stainless steel welded pipe is commonly selected for environments involving moisture, chloride exposure and corrosive media. Actual material selection should consider temperature, chemical concentration, pressure requirements and service conditions.
Product Specifications
| Item | Specification |
|---|---|
| Grade | 316 / UNS S31600 |
| Standard | ASTM A312 |
| Product Type | Stainless Steel Welded Pipe |
| Manufacturing Process | Welded Pipe Production |
| Diameter | Large Diameter Customized |
| Wall Thickness | Customized According to Requirement |
| Surface | Pickled / Polished / Customized |
| Length | Fixed Length or Customized |
| Certificate | MTC / EN 10204 3.1 Available |
316 Stainless Steel Welded Pipe Features
- Excellent corrosion resistance for industrial environments.
- Improved chloride resistance compared with 304 stainless steel.
- Suitable for large diameter welded pipe applications.
- Good weldability and fabrication performance.
- Available with customized dimensions and inspection requirements.
Welded Pipe vs Seamless Pipe Comparison
Welded and seamless stainless steel pipes have different characteristics. The suitable selection depends on pressure requirements, size range, application conditions and project specifications.
| Type | Feature | Typical Selection |
|---|---|---|
| Welded Pipe | Suitable for large diameter production and cost-effective industrial applications | Industrial piping systems |
| Seamless Pipe | No welded seam, commonly selected for demanding pressure conditions | High pressure applications |
Chemical Composition of 316 Stainless Steel Welded Pipe
316 stainless steel is an austenitic chromium-nickel-molybdenum alloy. The addition of molybdenum improves corrosion resistance, especially in chloride-containing environments.
| Element | Content |
|---|---|
| Carbon (C) | ≤0.08% |
| Chromium (Cr) | 16.0-18.0% |
| Nickel (Ni) | 10.0-14.0% |
| Molybdenum (Mo) | 2.0-3.0% |
| Manganese (Mn) | ≤2.0% |
| Silicon (Si) | ≤1.0% |
| Iron (Fe) | Balance |
Actual chemical composition shall be confirmed according to ASTM A312 requirements and material test certificate.
Mechanical Properties of 316 Stainless Steel Welded Pipe
Mechanical properties of ASTM A312 TP316 welded pipe depend on pipe dimensions, manufacturing process and applicable specification requirements.
| Property | Typical Requirement |
|---|---|
| Tensile Strength | ≥515 MPa |
| Yield Strength | ≥205 MPa |
| Elongation | ≥35% |
| Hardness | According to ASTM A312 requirements |
Related Grades Comparison
Different stainless steel grades provide different levels of corrosion resistance, mechanical performance and cost. The appropriate grade should be selected according to operating environment and application requirements.
| Grade | Main Feature | Relative Cost | Typical Selection |
|---|---|---|---|
| 304 Stainless Steel | General corrosion resistance and good fabrication performance | Lower | General industrial piping |
| 316 Stainless Steel | Improved chloride corrosion resistance with molybdenum addition | Medium | Chemical, marine and industrial piping |
| 904L Stainless Steel | Higher alloy content for severe corrosion environments | Higher | Aggressive chemical environments |
Test Report
Manufacturing Process
SAKY STEEL manufactures ASTM A312 TP316 welded pipes through controlled forming, welding, heat treatment and inspection processes to achieve reliable pipe quality.
Typical production process:
Stainless Steel Strip → Forming → Welding → Heat Treatment → Surface Treatment → Sizing → Inspection → Packaging
- Controlled forming ensures accurate pipe dimensions.
- Welding process creates consistent welded pipe structure.
- Surface treatment improves appearance and corrosion performance.
- Final inspection verifies dimensional and quality requirements.
Inspection and Quality Control
SAKY STEEL provides quality inspection support for ASTM A312 TP316 stainless steel welded pipes to ensure material identification, dimensional accuracy, weld quality and product traceability.
| Inspection Item | Purpose |
|---|---|
| Chemical Analysis | Verify stainless steel grade composition. |
| Dimensional Inspection | Check outside diameter, wall thickness and length. |
| Weld Seam Inspection | Verify welded area quality according to requirements. |
| Hydrostatic / NDT Testing | Available according to specification and customer requirements. |
| Surface Inspection | Confirm surface finish and appearance. |
| MTC / EN 10204 3.1 | Provide material traceability documentation. |
Applications of 316 Stainless Steel Welded Pipe
316 stainless steel welded pipe is widely used in industrial piping systems where corrosion resistance, fabrication flexibility and reliable performance are required.
- Chemical processing equipment and piping systems.
- Marine and coastal industrial applications.
- Food and beverage processing equipment.
- Pharmaceutical and sanitary equipment.
- Industrial water treatment systems.
- General corrosion-resistant piping applications.

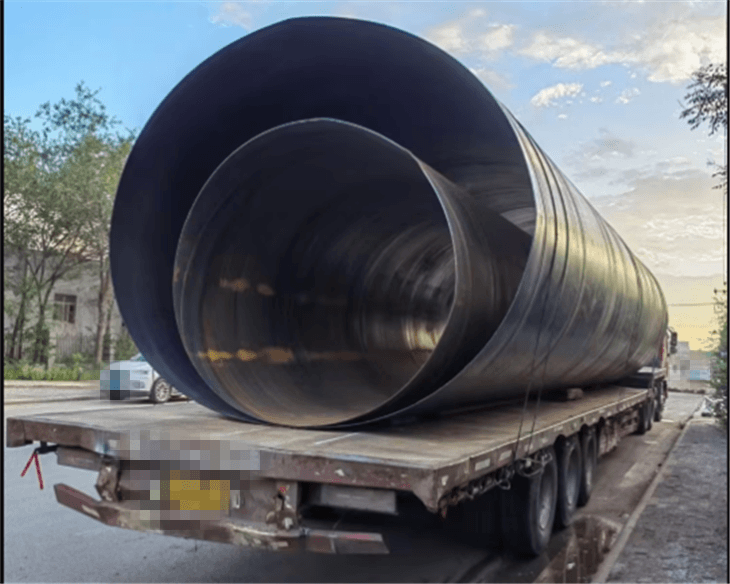

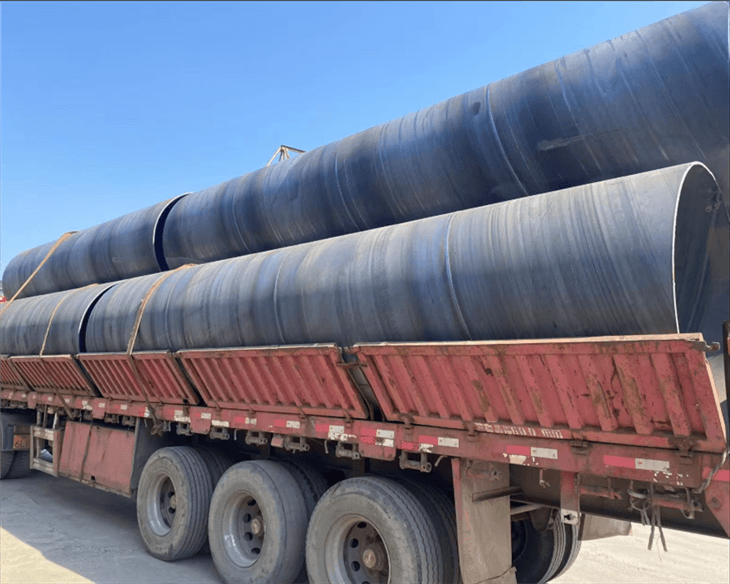

Packaging
SAKY STEEL provides suitable export packaging methods to protect stainless steel welded pipes during transportation and storage.
- Bundle packaging with protective materials.
- Plastic caps or surface protection when required.
- Wooden cases or pallets for export shipment.
- Customized packaging according to customer requirements.
Why Choose SAKY STEEL?
Stainless Steel Pipe Expertise
SAKY STEEL supplies stainless steel welded pipes for industrial applications with customized specifications.
Customized Pipe Solutions
Diameter, wall thickness, length, surface finish and packaging can be customized according to project requirements.
Material Traceability
Material certificates and inspection documents are available to support quality verification.
Inspection Support
Chemical analysis, dimensional inspection, weld inspection and NDT services can be arranged according to requirements.
Export Experience
Professional packaging and international shipment support are provided for global customers.
FAQ
What is ASTM A312 TP316 stainless steel welded pipe?
ASTM A312 TP316 stainless steel welded pipe is a corrosion-resistant welded pipe made from 316 austenitic stainless steel for industrial piping applications.
What is the difference between 304 and 316 welded pipe?
316 stainless steel contains molybdenum, providing improved resistance to chloride corrosion compared with 304 stainless steel. 304 is commonly selected for general applications, while 316 is preferred for more corrosive environments.
Can large diameter welded pipes be customized?
Yes. SAKY STEEL can supply customized diameter, wall thickness, length and surface requirements according to customer specifications.
Can inspection reports be provided?
Yes. Material certificates, inspection reports and test documents can be provided according to customer requirements.
What information is required for quotation?
Please provide stainless steel grade, pipe diameter, wall thickness, length, quantity, application and inspection requirements.
