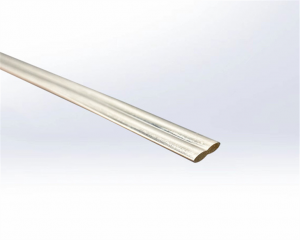

Double Oval Stainless Steel Profile Wire
Short Description:
Double Oval Stainless Steel Profile Wire is a precision-shaped stainless steel wire featuring two connected oval sections for custom sealing, guiding, retaining, mechanical and precision industrial applications. SAKY STEEL supplies double oval profile wire in 304, 316 and other stainless steel grades with customized oval dimensions, center connection, overall width, thickness, tolerance and delivery form according to customer drawings.
Double Oval Stainless Steel Profile Wire Overview
Double Oval Stainless Steel Profile Wire is a precision-shaped stainless steel wire with two oval working sections connected as a single continuous profile. The twin-oval geometry can be used where conventional round or rectangular wire cannot provide the required contact, locating, retaining or sealing function.
SAKY STEEL supplies double-oval profile wire in 304, 316 and other stainless steel grades. Oval width, oval height, center connection, overall dimensions, radius, dimensional tolerance and delivery form can be customized according to customer drawings.
Because double-oval profile geometry can vary between applications, the final cross section should be confirmed by an approved drawing rather than product name alone.
Double Oval Profile Wire Quick Information
Profile: Double Oval / Twin Oval Profile
Material: Stainless Steel
Common Grades: 304 / 316 / Other Agreed Grades
Dimensions: According to Cross-Section Drawing
Supply Form: Coil / Spool / Straight Length / Cut Length
Surface: Bright / Smooth / Polished / As Produced
Processing: Cold Drawing / Profile Forming / Straightening / Cutting
Customization: Oval Size / Center Connection / Width / Height / Radius / Tolerance
Double Oval Profile Design
A double-oval cross section normally consists of two oval lobes connected through a narrower or controlled center section. The two ovals can be equal or different depending on the required mating geometry and mechanical function.
| Profile Parameter | Description |
|---|---|
| Overall Width | Maximum width across the complete double-oval section |
| First Oval | Width, height and radius according to drawing |
| Second Oval | Equal or different oval dimensions according to design |
| Center Connection | Connecting section thickness or transition geometry between the two ovals |
| Overall Height | Total height of the finished cross section |
| Radius | Oval and transition radii according to profile design |
| Tolerance | Critical dimensions controlled according to approved drawing |
Custom Double Oval Cross Sections
Double oval profile wire can be produced with symmetrical or asymmetrical oval sections. The center connection and transition geometry can also be adjusted according to installation and functional requirements.
| Oval Geometry
Equal or unequal oval sections |
Center Connection
Custom web or transition geometry |
Precision Tolerance
Critical dimensions according to drawing |
304 vs 316 Double Oval Stainless Steel Wire
| Grade | Main Characteristic | Typical Selection |
|---|---|---|
| 304 | Good general corrosion resistance and forming performance | General mechanical and precision-profile applications |
| 316 | Improved corrosion resistance in chloride-containing environments | Marine, chemical and more demanding wet-service applications |
Double Oval Profile Wire Manufacturing
The production route depends on stainless steel grade, oval geometry, center-section dimensions, dimensional tolerance, surface condition and required delivery form.
Complex double-oval profiles may require multiple forming passes to achieve consistent lobe dimensions and controlled transition geometry.
Inspection & Quality Control
| Inspection Item | Purpose |
|---|---|
| Material Verification | Confirm stainless steel grade and material traceability |
| Overall Width | Verify complete cross-sectional width |
| Oval Dimensions | Check width, height and radius of both oval sections |
| Center Connection | Verify center-section thickness and transition geometry |
| Cross-Section Geometry | Compare finished profile against approved drawing |
| Surface Inspection | Check visible surface and forming condition |
| Documentation | MTC and agreed dimensional inspection documentation |
Applications of Double Oval Stainless Steel Profile Wire
Double oval profile wire is primarily a drawing-based product. Final application depends on profile geometry, mechanical condition and mating component.
| Guide Components
Positioning and locating profiles |
Retaining Systems
Special mechanical retention components |
Sealing Structures
Dual-contact sealing profiles |
| Mechanical Assemblies
Custom industrial components |
Precision Equipment
Controlled-section stainless components |
Custom Fabrication
Drawing-based specialty applications |

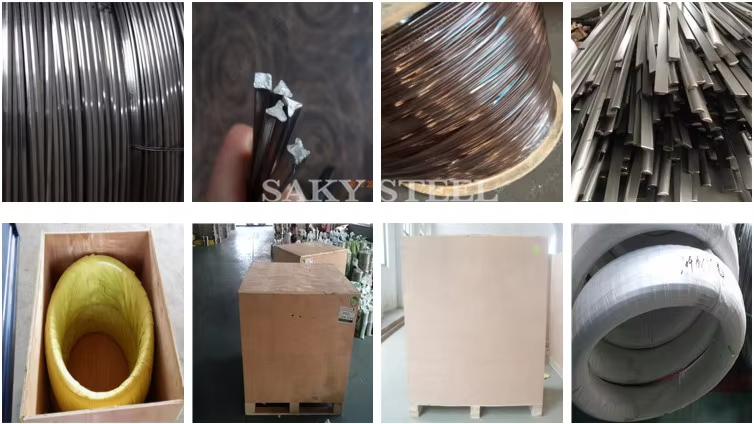

Double Oval Stainless Steel Profile Wire Packaging
Packaging is selected according to profile dimensions, delivery form, surface condition, unit weight and transportation requirements.
Double oval profile wire can be packed in coils, spools, straight-length bundles or export cases according to section size and shipment requirements.
Frequently Asked Questions
What is double oval stainless steel profile wire?
It is a custom-shaped stainless steel wire consisting of two oval cross-sectional sections connected into one continuous profile.
Can the two oval sections have different dimensions?
Yes. Symmetrical and asymmetrical double-oval profiles can be reviewed according to customer drawings and mating geometry.
Can the center connection be customized?
Yes. The center connection thickness, transition radius, oval dimensions, overall width and overall height can be customized according to the approved cross-sectional drawing.
Can double oval wire be supplied in straight lengths?
Yes. Depending on profile dimensions and production feasibility, the material can be supplied in coils, spools, straight lengths or cut lengths.
Which stainless steel grades are commonly available?
304 and 316 are common material options. Other stainless steel grades can be reviewed according to corrosion resistance, forming behavior and application requirements.
Can MTC and dimensional inspection records be supplied?
Yes. Material certificates and agreed dimensional inspection documentation can be supplied according to confirmed order requirements.
Request a Double Oval Stainless Steel Profile Wire Quote
Send your cross-sectional drawing, stainless steel grade, oval dimensions, center connection, tolerance, delivery form and quantity. SAKY STEEL will review the profile requirements before confirming the offer.
