Wing Stainless Steel Profile Wire
Short Description:

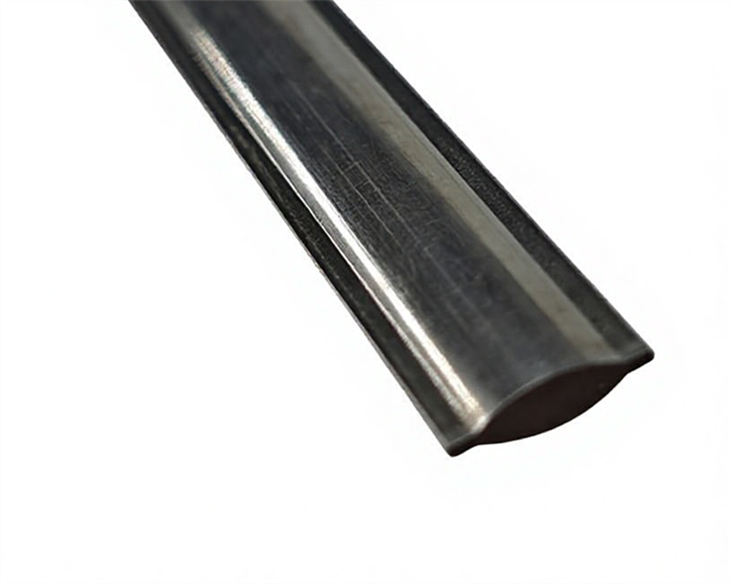

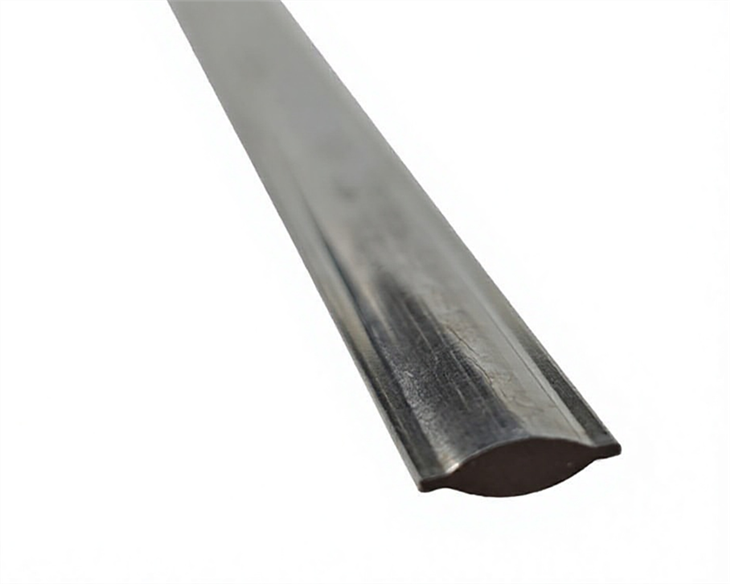

Wing Stainless Steel Profile Wire is a precision-shaped stainless steel wire with extended wing or flange sections for custom mechanical, guiding, supporting, sealing and industrial assemblies. SAKY STEEL supplies wing-shaped profile wire in 304, 316 and other stainless steel grades with customized wing width, body thickness, overall height, radius, angle and dimensional tolerance according to customer drawings.
Wing Stainless Steel Profile Wire Overview
Wing Stainless Steel Profile Wire is a precision-shaped stainless steel wire featuring extended wing or flange sections around a central body. The profile can be designed for applications requiring controlled contact surfaces, positioning, guiding, supporting or special assembly geometry.
SAKY STEEL supplies custom wing-shaped profile wire in 304, 316 and other stainless steel grades. Wing width, body thickness, overall height, corner radius, profile angle and dimensional tolerance can be developed according to customer drawings and application requirements.
Because wing-profile terminology and cross-sectional geometry can vary between industries, final production dimensions are confirmed according to an approved cross-sectional drawing rather than profile name alone.
Wing Profile Wire Quick Information
Profile: Wing Shape / Custom Wing Profile
Material: Stainless Steel
Common Grades: 304 / 316 / Other Agreed Grades
Dimensions: According to Cross-Section Drawing
Supply Form: Coil / Spool / Straight Length / Cut Length
Surface: Bright / Smooth / Polished / As Produced
Processing: Cold Drawing / Profile Forming / Straightening / Cutting
Customization: Wing Width / Body / Radius / Angle / Tolerance
Custom Wing Profile Design
Wing-shaped profile wire is normally produced to a drawing rather than a single universal cross-sectional standard. The wing geometry can be symmetrical or asymmetrical depending on the finished component.
| Profile Parameter | Description |
|---|---|
| Overall Width | Total width across the wing sections |
| Wing Width | Individual or combined flange / wing dimensions |
| Body Thickness | Thickness of the central supporting section |
| Overall Height | Total cross-sectional height according to drawing |
| Wing Angle | Parallel, inclined or custom angle when required |
| Corner Radius | Internal and external radii according to profile design |
| Tolerance | Critical dimensions controlled according to approved drawing |
Wing Profile Customization
Different wing configurations can be developed to suit the mating component, contact area, installation method and mechanical function.
| Wing Geometry
Symmetrical or asymmetrical sections |
Edge & Radius
Custom corners and transition radii |
Precision Tolerance
Critical dimensions according to drawing |
| Material Grade
304 / 316 / Other stainless steel |
Surface Condition
Bright / Smooth / Custom finish |
Delivery Form
Coil / Spool / Straight length |
304 vs 316 Wing Stainless Steel Profile Wire
| Grade | Main Characteristic | Typical Selection |
|---|---|---|
| 304 | Good general corrosion resistance and versatile forming performance | General industrial, mechanical and precision-profile applications |
| 316 | Improved corrosion resistance in chloride-containing environments | Marine, chemical, wet-service and more corrosive environments |
Wing Profile Wire Manufacturing
The manufacturing route is selected according to stainless steel grade, starting material, wing geometry, cross-sectional area, dimensional tolerance and required delivery form.
Multiple forming passes may be required for profiles with large wing-to-body ratios, tight radii or complex transitions. Final process selection depends on the approved profile geometry.
Why Use a Custom Wing Profile?
| Design Requirement | Profile Advantage |
|---|---|
| Larger Contact Area | Wing sections can provide broader contact or support surfaces than conventional round wire. |
| Mechanical Location | Profile geometry can help position or retain the wire within an assembly. |
| Integrated Geometry | A custom section may reduce the need for additional machining or assembled features. |
| Drawing-Based Design | Cross-sectional dimensions can be developed around the actual mating component or application. |
Inspection & Quality Control
| Inspection Item | Purpose |
|---|---|
| Material Verification | Confirm stainless steel grade and material traceability |
| Overall Width | Verify complete wing-to-wing profile width |
| Wing Dimensions | Check flange width, thickness and geometry |
| Body Dimensions | Verify central section thickness and height |
| Radius / Angle | Check transition radius and wing angle when specified |
| Cross-Section Geometry | Compare finished profile against drawing requirements |
| Surface Inspection | Check visible surface condition and forming defects |
| Documentation | MTC and agreed dimensional inspection documentation |
Applications of Wing Stainless Steel Profile Wire
Wing profile wire is primarily a drawing-based product. Its final application depends on the cross-sectional geometry, material grade, mechanical condition and mating component.
| Guide Components
Positioning and guiding profiles |
Support Profiles
Structural and contact elements |
Sealing Systems
Special mating and sealing profiles |
| Mechanical Assemblies
Custom locating and retaining components |
Industrial Equipment
Precision shaped stainless components |
Custom Fabrication
Drawing-based special profile applications |
Wing Stainless Steel Profile Wire Packaging
Packaging is selected according to profile dimensions, delivery form, surface condition, unit weight and transportation requirements. Suitable protection helps reduce surface damage and profile deformation during handling and shipment.
Wing profile wire can be packed in coils, spools, straight-length bundles or export cases according to section size and shipment requirements.
Frequently Asked Questions
What is wing stainless steel profile wire?
It is a custom-shaped stainless steel wire featuring one or more extended wing or flange sections around a central profile body.
Is Wing Profile Wire a standardized cross section?
Not necessarily. Wing-profile terminology can refer to different cross-sectional geometries depending on the application. An approved drawing is therefore used to define the final production profile.
Can asymmetrical wing profiles be produced?
Yes. Wing width, body dimensions, angle, radius and other cross-sectional features can be reviewed for symmetrical or asymmetrical designs.
Can Wing Profile Wire be supplied in straight lengths?
Yes. Depending on cross-sectional dimensions and production feasibility, the material can be supplied in coils, spools, straight lengths or cut lengths.
Which stainless steel grades are available?
304 and 316 are common material options. Other stainless steel grades can be reviewed according to corrosion resistance, mechanical performance and forming requirements.
Can material certificates be supplied?
Yes. MTC and agreed dimensional inspection documentation can be supplied according to confirmed order requirements.
Request a Wing Stainless Steel Profile Wire Quote
Send your cross-sectional drawing, stainless steel grade, wing dimensions, body dimensions, tolerance, delivery form and quantity. SAKY STEEL will review the profile requirements before confirming the offer.
