SBB Stainless Steel Wedge Wire
Short Description:
SBB Stainless Steel Wedge Wire is a precision-shaped profile wire with a wedge or trapezoidal cross section for wedge wire screens, filter elements, screen cylinders and separation systems. SAKY STEEL supplies customized SBB profiles in stainless steel grades such as 304 and 316, with cross-sectional dimensions and tolerances produced according to customer drawings.

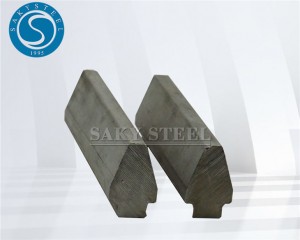

SBB Stainless Steel Wedge Profile Wire Overview
SBB Stainless Steel Wedge Profile Wire is a heavy-duty wedge-shaped surface wire used for wedge wire screens, dewatering equipment, centrifuge baskets and industrial separation systems. Compared with standard SB profile wire, SBB profiles use a heavier cross section for applications requiring greater rigidity, wear resistance and load capacity.
SAKY STEEL supplies SBB wedge profile wire in common stainless steel grades such as 304 and 316. Profile designation, cross-sectional dimensions, dimensional tolerance, surface condition and delivery form can be reviewed according to customer drawings and downstream screen-manufacturing requirements.
SBB Wedge Wire Quick Information
Profile Series: SBB Heavy-Duty Wedge Profile
Common Types: SBB34 / SBB38 / SBB42 / SBB48 / SBB50 / SBB76
Material: Stainless Steel
Common Grades: 304 / 316 / Other Agreed Grades
Reference Specification: ASTM A580 or Customer Specification
Process: Cold Drawn / Profile Formed / Annealed as Required
Surface: Bright / Smooth / Soap Coated as Required
Supply Form: Coil / Spool / Straight Length
Dimensions: According to SBB Type or Approved Drawing
SBB Heavy-Duty Wedge Profile Characteristics
| Feature | SBB Profile Characteristic |
|---|---|
| Heavy Cross Section | Designed with a larger profile section than lighter standard wedge profiles. |
| Higher Rigidity | Suitable for screen structures exposed to higher mechanical loads. |
| Wider Welding Area | The lower section provides a larger contact area when welded to supporting profiles. |
| Wear Resistance | Heavy-duty profile geometry is suitable for abrasive screening and dewatering applications. |
| Custom Screen Design | Profile type can be selected according to required slot, load, screen geometry and operating conditions. |
SBB Wedge Wire Profile Sizes
The following SBB profiles are commonly used as heavy-duty working wires. Other profile dimensions can be reviewed according to screen design and customer drawings.
| SBB Type | A – Profile Width | B – Profile Height | Profile Use |
|---|---|---|---|
| SBB34 | 2.20 mm | 5.00 mm | Heavy-duty wedge surface wire |
| SBB38 | 2.50 mm | 4.00 mm | Heavy-duty wedge surface wire |
| SBB42 | 2.80 mm | 6.50 mm | Heavy-duty wedge surface wire |
| SBB48 | 3.40 mm | 6.00 mm | Heavy-duty wedge surface wire |
| SBB50 | 3.50 mm | 8.00 mm | Heavy-duty wedge surface wire |
| SBB76 | 5.00 mm | 10.00 mm | Extra-heavy wedge surface wire |
Profile dimensions should be confirmed against the required SBB designation or approved cross-sectional drawing before production.
SB vs SBB Wedge Profile Wire
SB and SBB profiles are both used as working surface wires in wedge wire screens. The main difference is the profile section and the intended mechanical duty.
| Feature | SB Profile | SBB Profile |
|---|---|---|
| Profile Design | Standard wedge-shaped working wire | Heavier reinforced wedge profile |
| Section Weight | Lower | Higher |
| Rigidity | Suitable for general screening | Designed for higher-load structures |
| Welding Contact Area | Standard | Larger lower welding section |
| Typical Applications | Food, water treatment and general filtration | Mining, dewatering, centrifuge baskets and heavy-duty screening |
304 vs 316 SBB Wedge Wire
| Grade | Main Characteristic | Typical Selection |
|---|---|---|
| 304 | Good general corrosion resistance with economical material cost | General screening, industrial filtration and dewatering |
| 316 | Improved resistance to chloride-containing and more corrosive environments | Water treatment, chemical processing and demanding wet-service screens |
Stainless Steel Profile Wire Product Reference

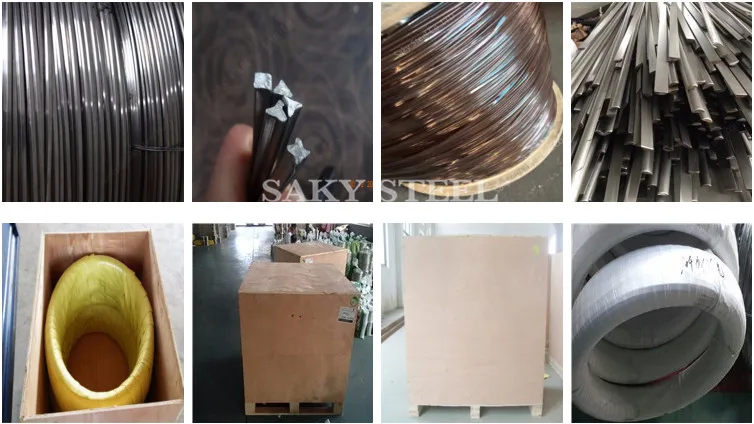

SAKY STEEL supplies different precision stainless steel profile wires in coiled and straight forms. The images below show representative shaped-wire products and surface conditions. Final SBB geometry is manufactured according to the specified profile designation or customer drawing.
Stainless Steel Profile Wire Shape Reference
SBB wedge wire belongs to a broader family of stainless steel profile wires. The following existing SAKY STEEL profile-wire data can be used as a general cross-section reference. SBB dimensions should follow the dedicated SBB table above.
| Profile Type | Reference Max Size | Reference Min Size |
|---|---|---|
| Flat Round Edge | 10 × 2 mm | 1 × 0.25 mm |
| Flat Square Edge | 10 × 2 mm | 1 × 0.25 mm |
| T-Section | 12 × 5 mm | 2 × 1 mm |
| D-Section | 12 × 5 mm | 2 × 1 mm |
| Half Round | 10 × 5 mm | 0.06 × 0.03 mm |
| Oval | 10 × 5 mm | 0.06 × 0.03 mm |
| Triangle | 12 × 5 mm | 2 × 1 mm |
| Wedge | 12 × 5 mm | 2 × 1 mm |
| Square | 7 × 7 mm | 0.05 × 0.05 mm |
The dimensions above are general references for the broader stainless steel profile-wire range and should not be used as substitutes for SBB profile specifications.
Custom SBB Profile Dimensions
For custom SBB wedge wire, a cross-sectional drawing is recommended. Profile geometry directly affects welding contact, screen slot design, structural rigidity and finished screen performance.
| Profile Parameter | Information to Specify |
|---|---|
| SBB Type | SBB34 / SBB38 / SBB42 / SBB48 / SBB50 / SBB76 or Custom |
| Working Width | Top surface dimension of the profile |
| Profile Height | Overall finished profile height |
| Lower Section | Rear / welding-side geometry and width |
| Side Angle | Required wedge angle when critical |
| Corner Radius | Radius requirement where applicable |
| Tolerance | Mark critical dimensions requiring tighter dimensional control |
SBB Wedge Wire Manufacturing & Dimensional Control
SBB wedge wire is produced through controlled profile forming and cold working. Processing parameters are selected according to stainless steel grade, profile type, cross-sectional dimensions and required tolerance.
For precision wedge profiles, particular attention is given to working width, profile height and lower welding geometry because these dimensions directly affect screen fabrication and slot consistency.
Inspection & Quality Control
| Inspection Item | Purpose |
|---|---|
| Material Verification | Confirm stainless steel grade and material traceability |
| Profile Width | Verify working-surface width according to the approved profile |
| Profile Height | Check finished section height and dimensional consistency |
| Cross-Section Geometry | Check wedge angle, lower section and other profile dimensions |
| Surface Inspection | Check bright or smooth surface and visible defects |
| Coil / Length Inspection | Verify delivery form, coil condition and ordered length or quantity |
| Documentation | MTC and agreed dimensional inspection documents as required |
Heavy-Duty Applications of SBB Wedge Wire
The reinforced SBB profile is mainly selected for screen structures requiring greater section rigidity, wear resistance and load capacity than lighter wedge profiles.
| Mining ScreensHeavy-duty screening and classification | DewateringHigh-load dewatering screen surfaces | Centrifuge BasketsWorking profile for separation baskets |
| Industrial ScreeningHigh-load screen panels and assemblies | Wet ProcessingScreening under abrasive wet conditions | Separation EquipmentHeavy-duty filtration and separation systems |
SBB Wedge Wire Packaging
SBB and other stainless steel profile wires are packed according to section size, coil weight, surface condition and transportation requirements. Suitable protection helps reduce profile deformation and surface damage during handling and shipment.
Packing method can be adjusted according to SBB profile size, coil weight, surface protection requirements and shipping method.
Information Required for an SBB Wedge Wire Quote
Please provide the SBB designation or a cross-sectional drawing whenever possible. Complete profile information helps confirm manufacturing feasibility and quotation accuracy.
| Required Information | Example / Description |
|---|---|
| SBB Type | SBB34 / SBB38 / SBB42 / SBB48 / SBB50 / SBB76 |
| Material Grade | 304 / 316 / Other Required Stainless Steel Grade |
| Profile Drawing | Cross-sectional drawing with critical dimensions |
| Profile Size | Working Width × Height and Lower Section Dimensions |
| Tolerance | Critical dimensional tolerance requirements |
| Surface | Bright / Smooth / Soap Coated / Other Requirement |
| Supply Form | Coil / Spool / Straight Length |
| Quantity | KG / Coil Quantity / Required Length |
| Application | Mining / Dewatering / Centrifuge Basket / Screen / Filtration |
| Destination | Delivery Port / Country |
Frequently Asked Questions
What is SBB wedge wire?
SBB is a heavy-duty wedge profile wire series used as the working surface wire in demanding wedge wire screens, dewatering equipment and separation systems.
What is the difference between SB and SBB wedge wire?
SB is a standard wedge working profile, while SBB uses a heavier cross section designed for greater rigidity and higher mechanical loads. Selection should be based on screen design, slot requirement and operating conditions.
What are the common SBB profile sizes?
Common profiles include SBB34 at 2.20 × 5.00 mm, SBB38 at 2.50 × 4.00 mm, SBB42 at 2.80 × 6.50 mm, SBB48 at 3.40 × 6.00 mm, SBB50 at 3.50 × 8.00 mm and SBB76 at 5.00 × 10.00 mm.
Can custom SBB profiles be produced?
Custom profile requirements can be reviewed according to the required working width, height, lower welding section, wedge angle, radius and dimensional tolerances.
Should I choose 304 or 316 SBB wedge wire?
304 is suitable for many general industrial applications. 316 is commonly selected where improved resistance to chloride-containing, chemical or wet-service environments is required.
Can SBB wire be supplied in coils?
Yes. Coil, spool and other delivery forms can be reviewed according to the SBB profile dimensions, unit weight and downstream manufacturing process.
Request an SBB Stainless Steel Wedge Wire Quote
Send your SBB type or profile drawing, stainless steel grade, dimensions, tolerance, quantity and destination. SAKY STEEL will review the profile and production requirements before confirming the offer.
