430 Stainless Steel Sheet
Short Description:
| Specifications of stainless steel sheet: |
Specifications : ASTM A240 / ASME SA240
Grade: 304L, 316L, 309, 309S, 321,347, 347H, 410, 420,430
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length :2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

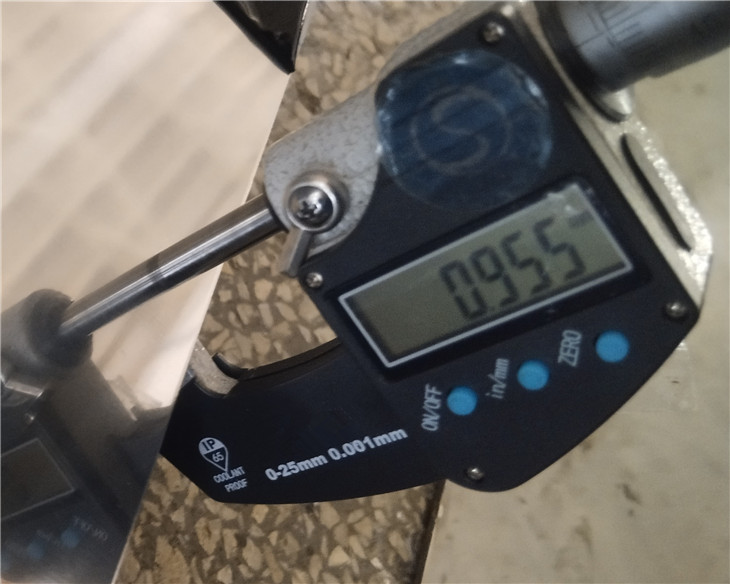

Thickness : 0.3 mm to 30 mm
Surface Finish : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, hair line, SATIN (Met with Plastic Coated) etc.
Raw Materail: POSCO, Aperam, Acerinox, Thyssenkrup, Baosteel, TISCO, Arcelor Mittal, Saky Steel, Outokumpu
Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, etc.
| Stainless Steel 430 Sheets & Plates Equivalent Grades: |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 430 |
1.4016 | S43000 |
| SS 430 Sheets, Plates Chemical Composition and Mechanical properties(saky steel): |
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo |
| SS 430 |
0.12 max | 1.0 max | 1.0 max | 0.040 max | 0.030 max | 16.0 – 18.0 | 0.75 |
- |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation(in 2 in.) |
| MPa – 450 |
MPa – 205 |
22 % |
| Why Choose Us: |
1. You can get the perfect material according to your requirement at the least possible price.
2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
4. e guarantee to give a response within 24hours(usually in the same hour)
5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
| SAKY STEEL’S Quality Assurance (including both Destructive and Non-Destructive) : |
1. Visual Dimension Test
2. Mechanical examining like tensile, Elongation and reduction of area.
3. Impact analysis
4. Chemical examination analysis
5. Hardness test
6. Pitting protection test
7. Penetrant Test
8. Intergranular Corrosion Testing
9. Roughness Testing
10. Metallography Experimental Test
| SAKY STEEL’S Packaging: |
1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
| Saky steel’s Common Surface Finishes for Flat Products from EN 10088-2 (for full list see Specifying finishes for stainless steel flat products (sheet): |
|
Surface Finish |
Definition |
Application |
|
2B |
Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. |
Medical equipment, Food industry, Construction material, Kitchen utensils. |
|
BA |
Those processed with bright heat treatment after cold rolling. |
Kitchen utensils, Electric equipment, Building construction. |
|
NO.3 |
Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction. |
|
NO.4 |
Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. |
Kitchen utensils, Building construction, Medical equipment. |
|
HL |
Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. |
Building Construction. |
|
NO.1 |
The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. |
Chemical tank |
