409L 409 Stainless Steel Welding Wire

Short Description:


  • Specifications: AWS 5.9, ASME SFA 5.9
  • Grade: ER409, ER409L, ER409Nb, ER409LNiMo
  • Surface: Bright, Cloudy,Plain,Black
  • Product Detail

    Product Tags

    Specifications of Welding Wire:

    Specifications of Welding Wire:

    Specifications : AWS 5.9, ASME SFA 5.9

    Grade: ER409, ER409L,  ER409Nb, ER409LNiMo

    Welding wire diameter :

                MIG – 0.8 to 1.6 mm,

                TIG – 1 to 5.5 mm,

                Core wire – 1.6 to 6.0

    Surface: Bright, Cloudy,Plain,Black



    ER409 ER409Nb Welding Wire / Rod Chemical Composition:
    Grade C Mn Si P S Cr Cu Ni Mo Ti
    409 0.08 max 0.8 max 0.80 max 0.03 max 0.03 max 10.50 – 13.50 0.75 max 0.6 max 0.5 max 10xC to – 1.5
    409Nb 0.08 max 0.8 max 1.0 max 0.04 max 0.03 max 10.50 – 13.50 0.75 max 0.6 max 0.5 max 10xC to 0.75



    Recommended Welding Parameters:
    Wire Diameter Amps DCSP Volts Shielding Gas
    0.035 60-90 12-15 Argon 100%
    0.045 80-110 13-16 Argon 100%
    1/16 90-130 14-16 Argon 100%
    3/32 120-175 15-20 Argon 100%

    Note: Parameters for tig welding are dependent upon plate thickness and welding position.
    Other shielding Gases may be used for Tig welding. Shielding gases are chosen taking Quality, Cost, and Operability into consideration.



    Why Choose Us:

    1. You can get the perfect material according to your requirement at the least possible price.
    2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
    3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
    4. e guarantee to give a response within 24hours(usually in the same hour)
    5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
    6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

    SAKY STEEL’S Quality Assurance (including both Destructive and Non-Destructive) :

    1. Visual Dimension Test
    2. Mechanical examining like tensile, Elongation and reduction of area.
    3. Impact analysis
    4. Chemical examination analysis
    5. Hardness test
    6. Pitting protection test
    7. Penetrant Test
    8. Intergranular Corrosion Testing
    9. Roughness Testing
    10. Metallography Experimental Test



    SAKY STEEL’S Packaging:

    1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
    2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

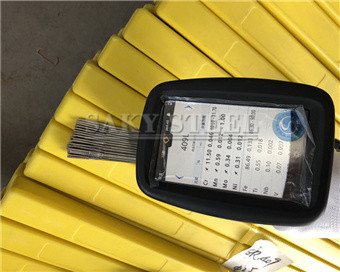

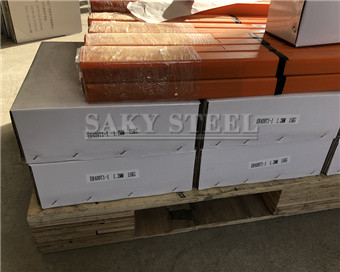

    409 Welding Rod     ER409L welding wire


    Applications:

    The nominal composition of ER409 weld metal is 12% chromium with Ti added as a stabilizer. This material often is used to weld bare metal of similar composition.
