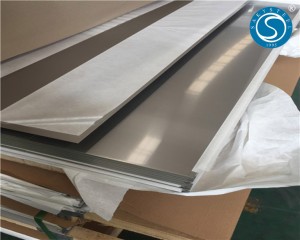

309 Stainless Steel Plate


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai Ningbo Shenzhen
  • Payment Terms: T/T , L/C
  • Product Detail

    Product Tags

    Specifications of stainless steel sheet:

    Specifications : ASTM A240 / ASME SA240

    Grade: 304L, 316L, 309, 309S, 321,347, 347H, 410, 420, 253SMA, 254SMO, 2205

    Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc

    Length :2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc

    Thickness : 0.3 mm to 30 mm

    Surface Finish : Hot rolled plate (HR), Cold rolled sheet (CR),2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, Chequered, embossed, hair line, sand blast, Brush, etching, SATIN (Met with Plastic Coated) etc.

    Form : Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc.

    SS 309/309S Sheets, Plates Chemical Composition and Mechanical properties:

    Grade C Mn Si P S Cr Ni Fe
    SS 309
    0.20 max 2.0 max 0.75 max 0.045 max 0.030 max 22.0 – 24.0 12.0 – 15.0 Balance
    SS 309S
    0.08 max
    2.0 max 0.75 max 0.045 max 0.030 max 22.0 – 24.0 12.0 -15.0 Balance



    Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation(in 2 in.)
    7.89 g/cm3 1480-1530 °C (2500-2590 °F) Psi – 85000 , MPa – 586 Psi – 45000 , MPa – 310
    50 %


    Why Choose Us :

    1. You can get the perfect material according to your requirement at the least possible price.
    2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
    3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
    4. e guarantee to give a response within 24hours(usually in the same hour)
    5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
    6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.


    SAKY STEEL’S Quality Assurance (including both Destructive and Non-Destructive) :

    1. Visual Dimension Test
    2. Mechanical examining like tensile, Elongation and reduction of area.
    3. Impact analysis
    4. Chemical examination analysis
    5. Hardness test
    6. Pitting protection test
    7. Penetrant Test
    8. Intergranular Corrosion Testing
    9. Roughness Testing
    10. Metallography Experimental Test

    SAKY STEEL’S Packaging:

    1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
    2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    309 stainless steel sheet pacakge


    Applications:

    1. Automobile
    2. Electrical Appliance
    3. Rail Transit
    4. Precision Electronic
    5. Solar Energy
    6. Building and Decoration
    7. Container
    8. Elevator
    9. Kitchen utensil
    10. Pressure vessel
