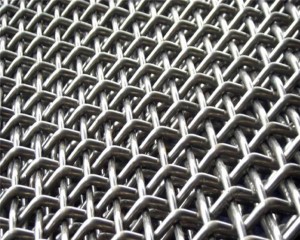

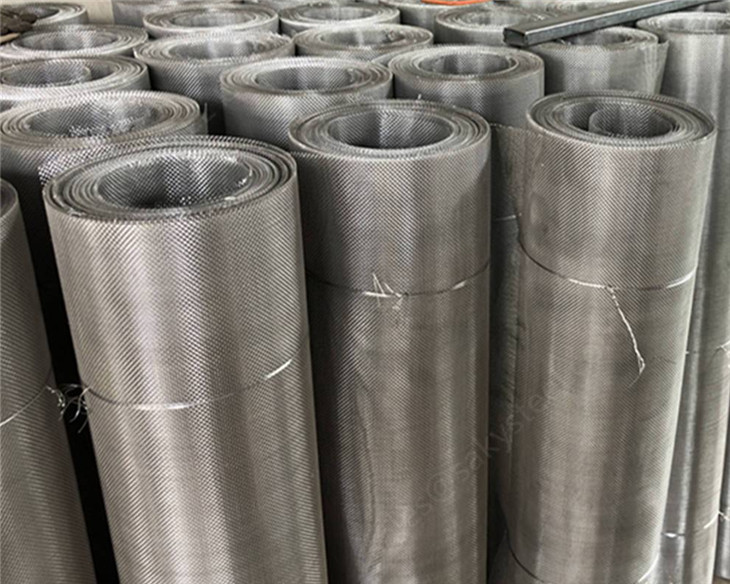

304 Stainless Steel Wire Mesh

304 Stainless Steel Wire Mesh Overview

304 stainless steel wire mesh is one of the most widely used woven mesh materials because it combines practical corrosion resistance with economical cost and a broad supply range. Compared with 316L stainless steel wire mesh, 304 mesh is more suitable for general-purpose environments where extreme chloride resistance is not the first priority.

It can be supplied in rolls, cut sheets, filter discs and fabricated parts. Common weave options include plain weave, twill weave, plain Dutch weave and twill Dutch weave, allowing buyers to match the mesh structure to screening, support, ventilation or filtration requirements.

Detailed Product Attributes

Why Choose 304 Stainless Steel Wire Mesh

304 Wire Mesh Weave Types

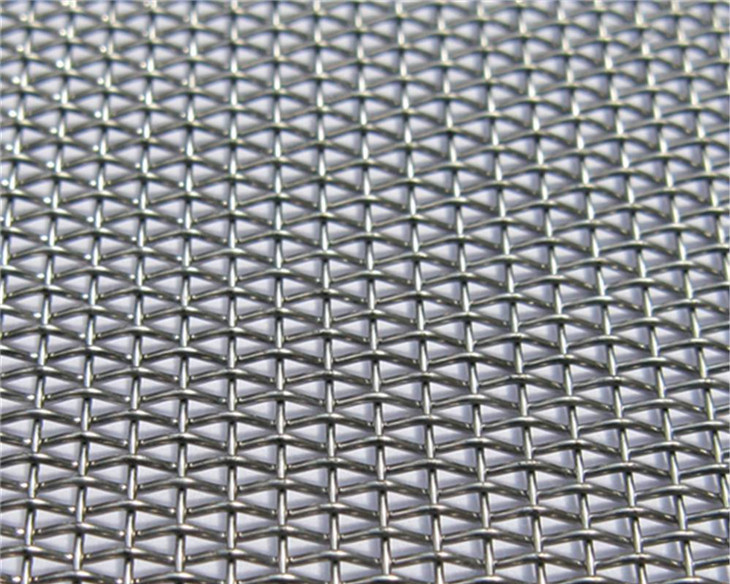

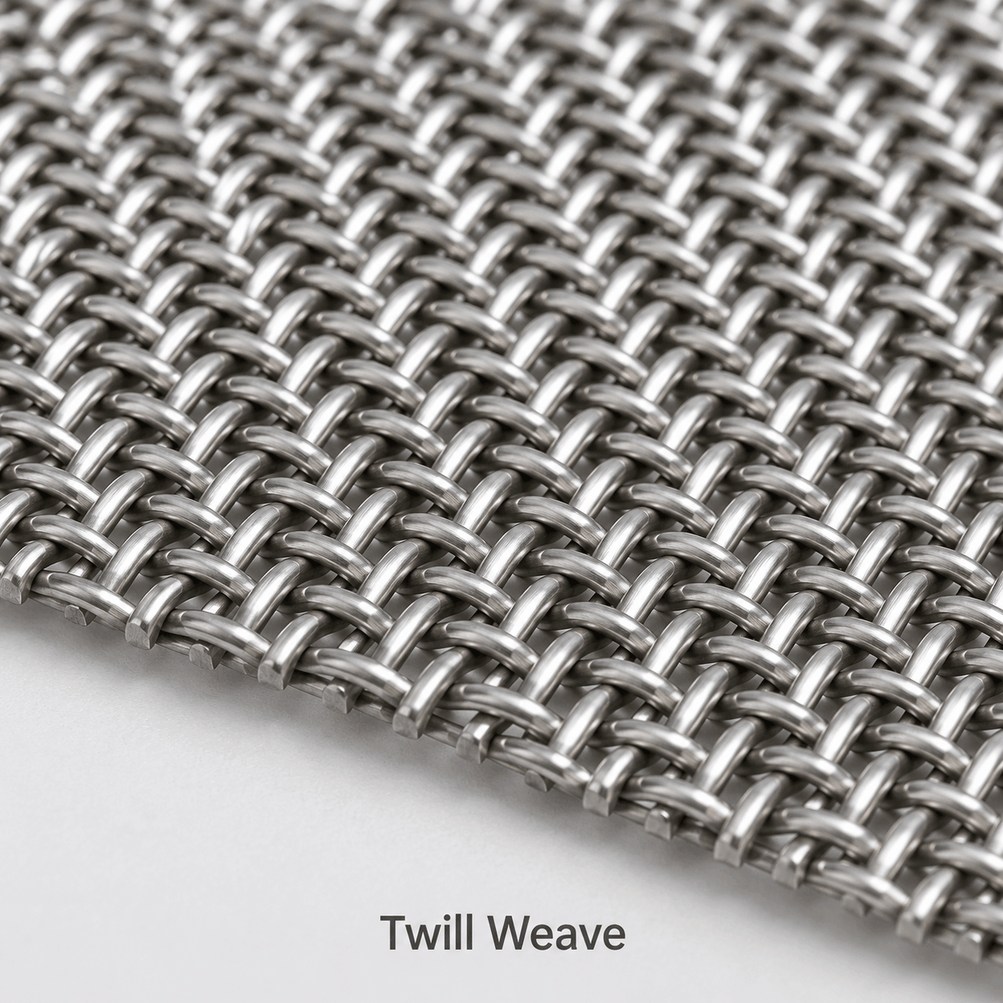

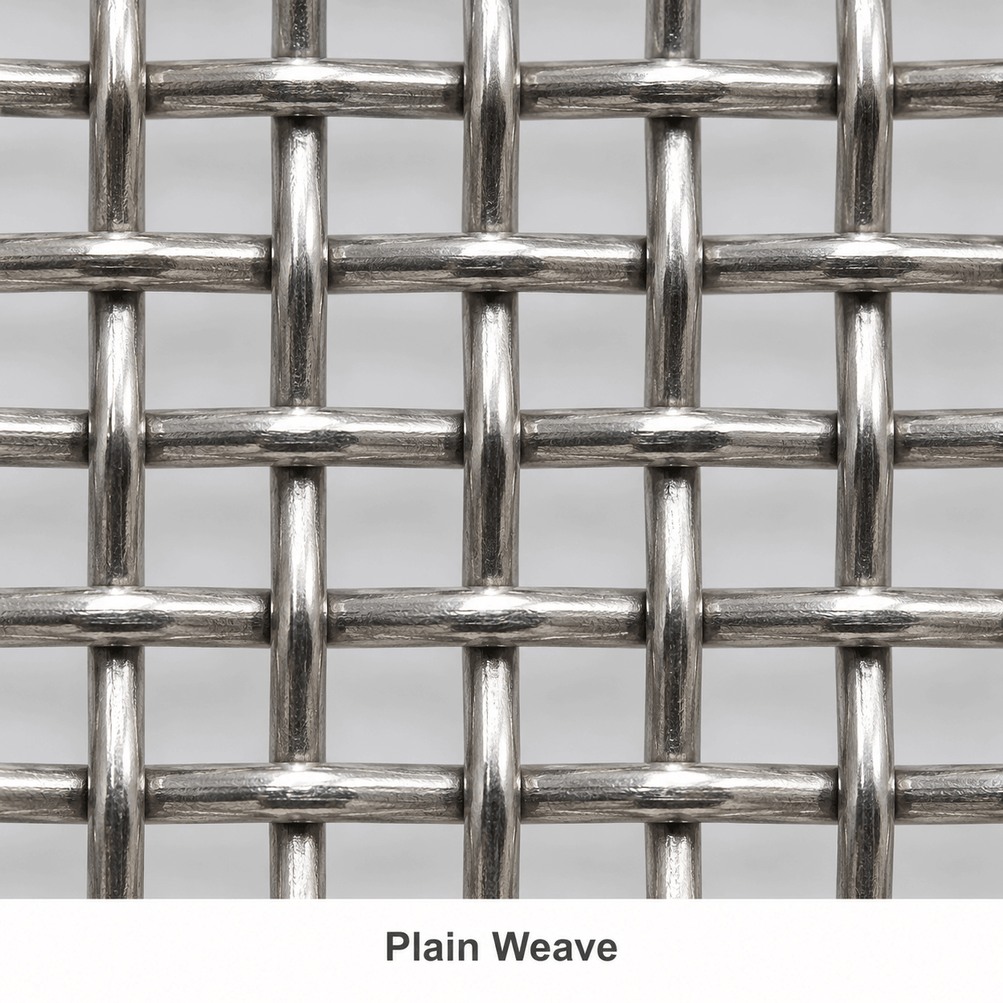

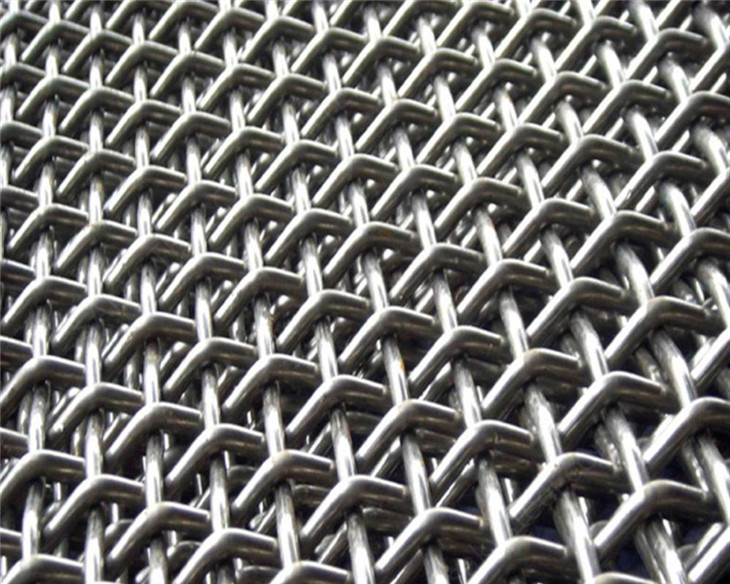

Plain Weave The most common woven structure. Each wire passes alternately over and under adjacent wires. Suitable for general screening and broad industrial use.	Twill Weave Provides a tighter woven structure and supports finer mesh counts. Often selected where better stability or finer screening is required.

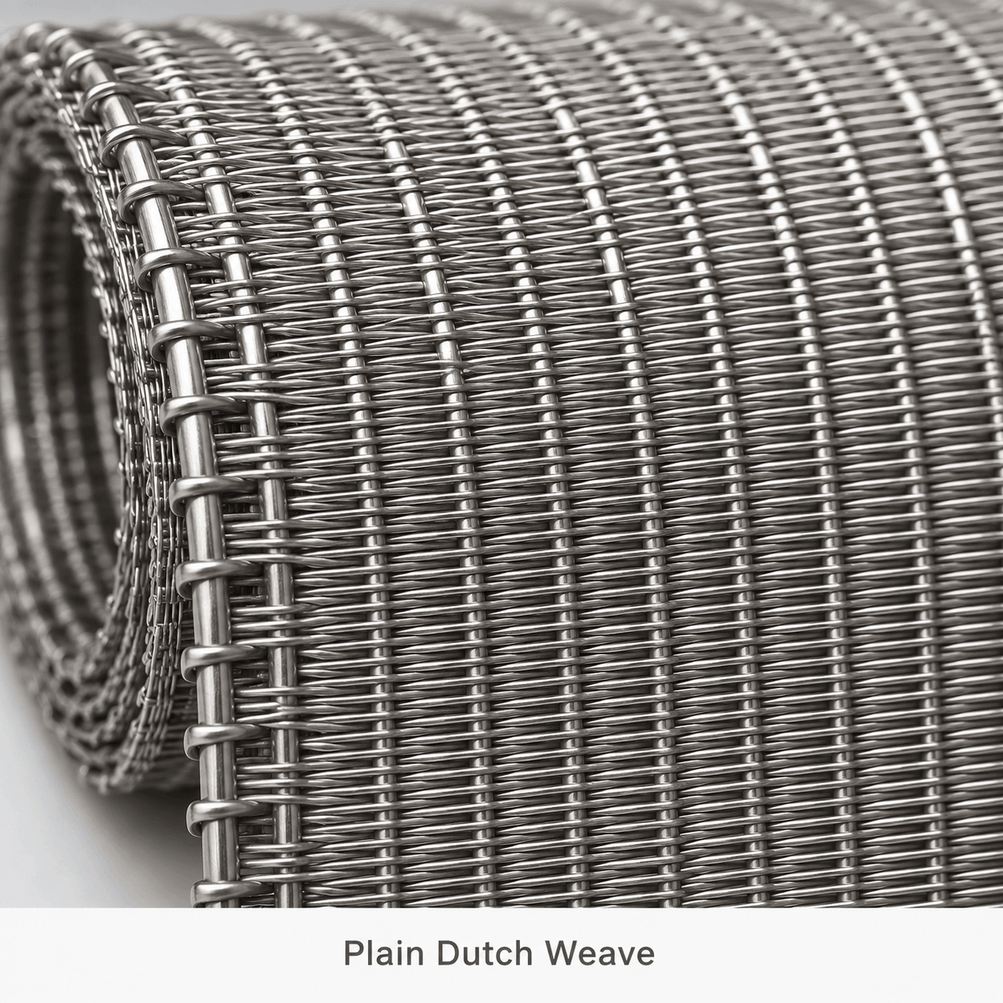

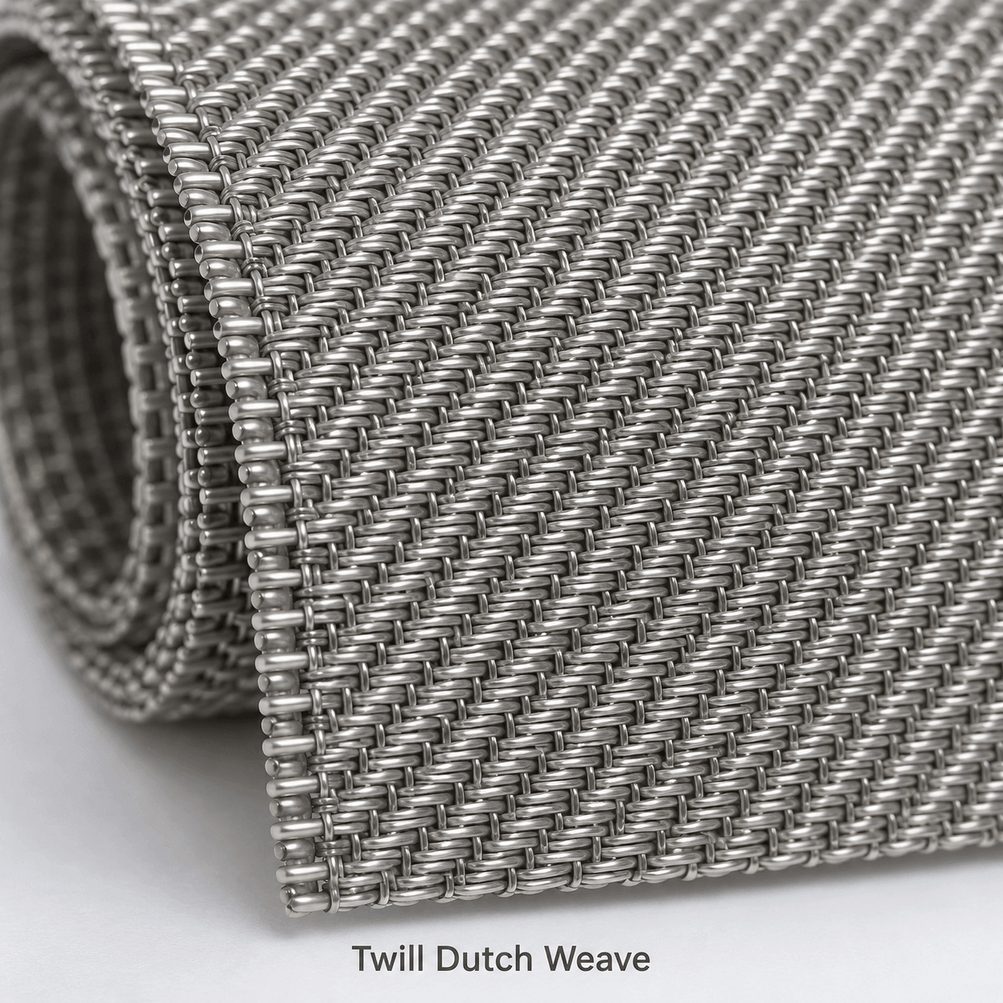

Plain Dutch Weave A denser weave structure with controlled filtration openings. Commonly used in process filtration and pressure filtration applications.	Twill Dutch Weave Designed for finer particle retention and liquid filtration, combining dense weave performance with strong structural integrity.

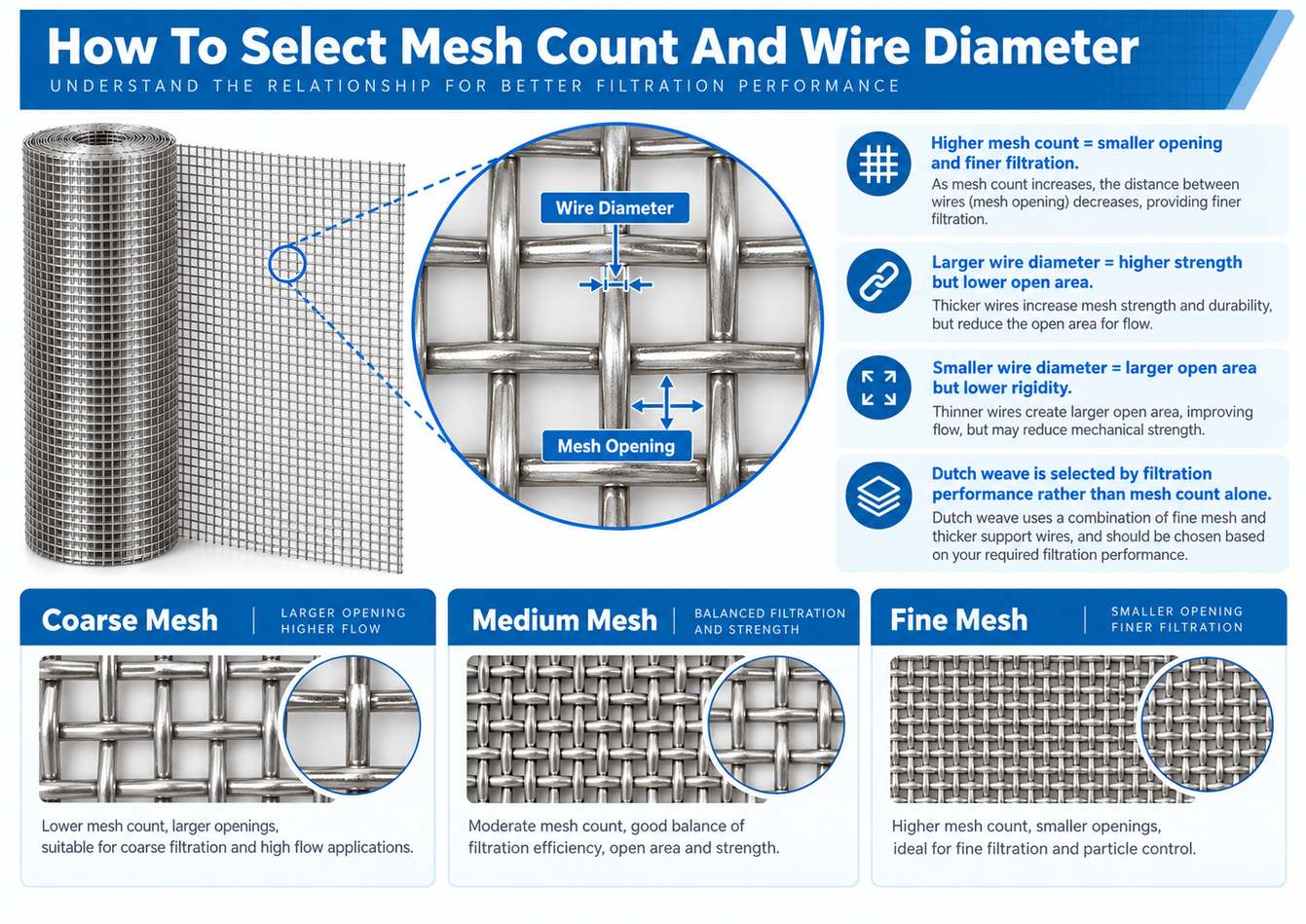

How To Select Mesh Count and Wire Diameter

When choosing 304 stainless steel wire mesh, buyers should not look at mesh count alone. Mesh count, wire diameter and opening size work together and directly affect filtration, strength and flow rate.

• Higher mesh count usually means smaller openings and finer filtration.
• Larger wire diameter improves strength and durability but reduces open area.
• Smaller wire diameter creates larger open area but may lower rigidity.
• Dutch weave should be selected based on filtration performance, not only by mesh count.

Reference Mesh Selection Table

The following table is for general reference only. Actual selection depends on application, required filtration opening, mechanical strength and fabrication needs.

Typical Applications of 304 Stainless Steel Wire Mesh

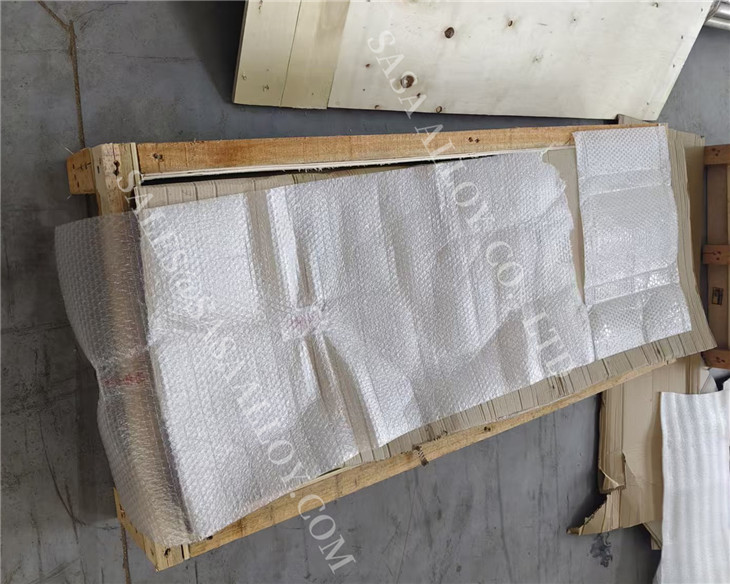

Packaging of 304 Stainless Steel Wire Mesh

304 stainless steel wire mesh is usually packed according to mesh type, roll size and transportation method. Standard export packing helps protect the mesh surface and woven structure during storage and shipment.

• Waterproof paper and plastic film wrapping for each roll
• Rolls packed in cartons or woven bags where suitable
• Wooden cases or wooden pallets for export shipments when required
• Cut sheets separated with protective paper if necessary
• Labels showing material grade, mesh count, roll size and batch information

Frequently Asked Questions

What is the difference between 304 and 316L stainless steel wire mesh?

304 stainless steel wire mesh is more economical and widely used for general-purpose screening and filtration. 316L stainless steel wire mesh offers better resistance in chloride-containing, marine or more corrosive environments.

Can 304 wire mesh be supplied in rolls and cut sheets?

Yes. It can be supplied in rolls, standard sheets, cut-to-size panels, discs and fabricated mesh parts according to the required application.

Which weave type should I choose?

Plain weave is commonly used for general screening. Twill weave is suitable for finer mesh structures. Plain Dutch weave and twill Dutch weave are usually selected for filtration applications requiring controlled openings.

What information is needed for a quotation?

Please provide material grade, weave type, mesh count, wire diameter, opening size if known, roll width, roll length or sheet size, quantity and end use.
