cold drawn 304 Stainless Steel Square Bar


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai Ningbo Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    Sakysteel  is Square Round flat hexagon bar manufacturer and suppliers in china, specialized in the research, development and production of stainless square bar.



    Grade Datasheet of T304 stainless steel square bar for Steel Structure:

    304 stainless square bar chemical composition:

    C% Si% Mn% P% S% Cr% Ni% N% Mo% Cu%
    =0.08 =1.0 =2.0 =0.045 =0.03 18.0-20.0 8.0-10.0 -

    304 Stainless Steel Square Bar mechanical properties:

    T*S Y*S Hardness Elongation
    (Mpa) (Mpa) HRB HB (%)
    =520 =205 =40

    Specifications of stainless steel square bar:

    * Material:
    201,202,XM-19 etc;
    301,302,303,304,304L/H/Cu,309S,310S,314,316,316L/Ti,317,321,321H,330,347,348 etc.;
    409,410,416,420,430,430F,431,440 etc;
    2205,2507,S31803,2209,630,631,15-5PH,17-4PH,17-7PH,904L,F51,F55,253MA etc.
    * Size: 10*10mm-100*100mm
    * Length: According to customers’ requirements
    * Surface finish: Polished bright, hairline,pickled

    Main SS bar products from sakysteel:

    5 宽730 高584  (6)stainless square bar SS flat barstainless square bar
    stainless steel square bar 201803151655 (4)stainless steel square stainless steel square bar 201803151655 (6)stainless steel square

    More details of 304 stainless steel square bar:
    * Origin: SAKY of China (Mainland)
    * Certification: ISO,SGS,TUV
    * Standard:ASTM/JIS/GB/EN
    * Tolerance: H9, H11, H13, K9, K11, K13 or as required
    *Packing: Water proof paper and wooden pallet or wooden box. Our products are packed according to the regulations and customer’s requests; we would take great care to avoid any damage during storage or transportation. Furthermore, products packages also are tagged clear on the outside for easy identification of the product and quality information.

    Applications:
    Stainless steel square bar applies to petroleum,chemical industry,electric power,boiler,high temperature resistant,low temperature resistant,corrosion resistant

    Terms & Conditions:
    * MOQ: 1 Ton
    * Terms of delivery: FOB, CNF, CFR,CIF,EXW,DDU
    * Terms of payment: L/C, T/T, Western Union

    304 stainless steel square bar sizes:

    SIZE
    10*10mm(2/5”) 11*11mm 12*12mm 13*13mm 14*14mm 15*15mm(3/5”)
    16*16mm 17*17mm 18*18mm 19*19mm 20*20mm 21*21mm
    22*22mm 24*24mm 25*25mm(1”) 26*26mm 28*28mm 30*30mm(1-1/5”)
    32*32mm 34*34mm 35*35mm(1-1/5”) 38*38mm 40*40mm(1-1/5”) 42*42mm
    45*45mm(1-4/5”) 48*48mm 50*50mm(2”) 53*53mm 56*56mm 60*60mm(2-2/5”)
    63*63mm 67*67mm 70*70mm(2-4/5”) 75*75mm(3”) 80*80mm(3-1/5”) 85*85mm(3-2/5”)
    90*90mm(3-3/5”) 95*95mm(3-4/5”) 100*100mm(4”)

    Chemical composition of stainless steel square bar:

    TYPE NO. C Mn P S Si Cr Ni Mo
    201 =0.15 5.5-7.5 =0.050 =0.030 =1.00 16.0-18.0 3.5-5.5
    202 =0.15 7.5-10 =0.060 =0.030 =1.00 17.0-19.0 4.0-6.0
    301 =0.15 =2.00 =0.045 =0.030 =1.00 16.5-18.0 6.0-8.0
    302 =0.15 =2.00 =0.045 =0.030 =1.00 17.0-19.0 8.0-10.0
    304 =0.08 =2.00 =0.045 =0.030 =1.00 18.0-20.0 8.0-10.5
    304L =0.03 =2.00 =0.045 =0.030 =1.00 18.0-20.0 8.0-12.0
    308 =0.08 =2.00 =0.045 =0.030 =1.00 18.0-21.0 10.0-12.0
    310S =0.08 =2.00 =0.045 =0.030 =1.00 24.0-26.0 19.0-22.0
    316 =0.08 =2.00 =0.045 =0.030 =1.00 16.0-18.0 10.0-14.0 2.0-3.0
    316L =0.03 =2.00 =0.045 =0.030 =1.00 16.0-18.0 10.0-14.0 2.0-3.0
    321 =0.08 =2.00 =0.045 =0.030 =1.00 17.0-19.0 9.0-12.0 Ti>S*C%
    410 =0.15 =1.00 =0.040 =0.030 =1.00 11.5-13.5
    430 =0.12 =1.00 =0.040 =0.030 =1.00 16.0-18.0

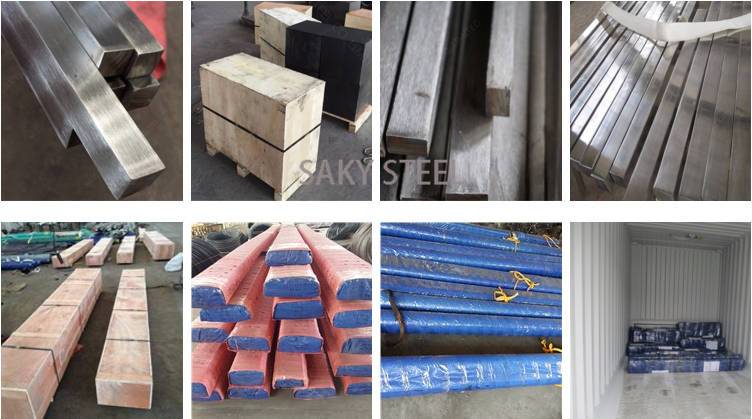

    SS bar Packaging:

    304 Stainless Steel Square Bar 304 Stainless Steel Square Bar stainless square bar pricestainless square bar stainless square bar manufacturestainless square bar
