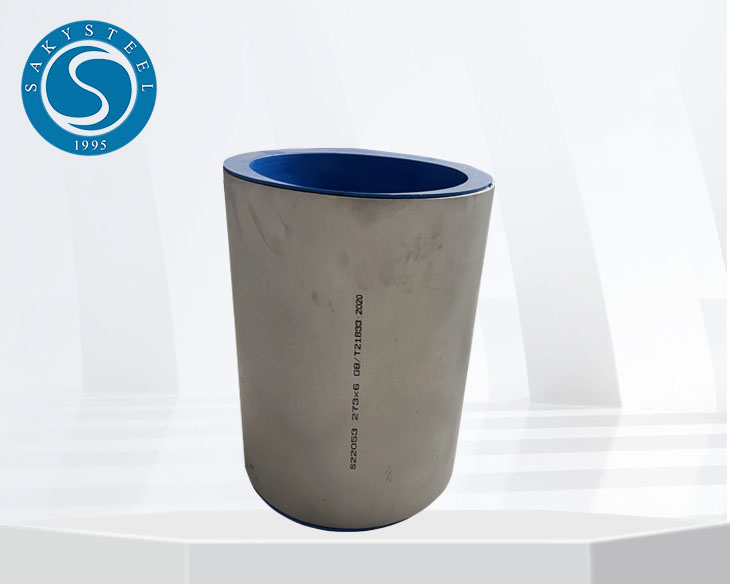

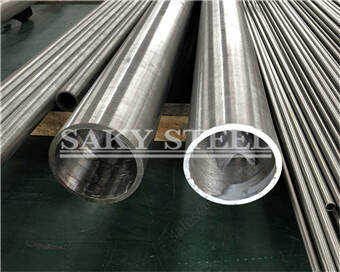

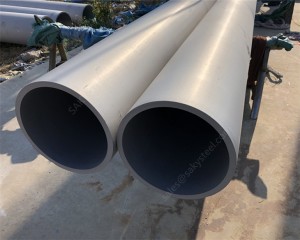

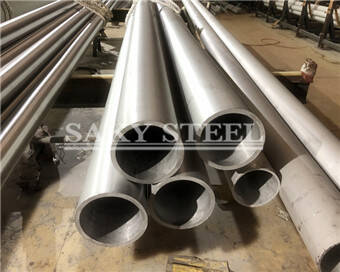

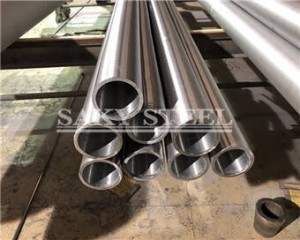

Duplex S31803 S32205 seamless pipe


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai Ningbo Shenzhen
  • Payment Terms: T/T , L/C
  • Product Detail

    Product Tags

    Duplex Steel S31803/S32205 Pipes and Tubes Specification

    Seamless Pipes & Tubes Size : 1 / 8″ NB – 12″ NB

    Specifications : ASTM A789, A790 / ASME SA789, SA790

    Standard : ASTM, ASME and API

    Grade: S31803/2205, S32205/2205, S32750/2507;

    Techniques: Hot-rolled, cold-drawn

    Length :5.8M,6M & Required Length

    Outer Diameter : 6.00 mm OD up to 914.4 mm OD

    Thickness : 0.3mm – 50 mm,

    Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

    Types : Seamless Pipes

    Form : Round, Square, Rectangle, Hydraulic, Honed Tubes

    End : Plain End, Beveled End, Treaded



    Duplex Steel S31803/S32205 Pipes & Tubes Equivalent Grades:

    STANDARD WERKSTOFF NR. UNS
    Duplex S31803 / S32205 1.4462 S31803 / S32205


    Duplex S31803 / S32205 Pipes, Tubing Chemical Composition and Mechanical properties:

    Grade C Mn Si P S Cr Mo Ni N Fe
    S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min
    S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21.0 – 23.0 2.50 – 3.50 4.50 – 6.50 0.8 – 0.20 63.54 min

    Element Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
    S31803 / S32205 7.805 0.285 1420 – 1465 2588 – 2669



    Why Choose Us :

    1. You can get the perfect material according to your requirement at the least possible price.
    2. We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
    3. The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
    4. e guarantee to give a response within 24hours(usually in the same hour)
    5. You can get stock alternatives, mill deliveries with minimizing manufacturing time.
    6. We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.



    SAKY STEEL’S Quality Assurance (including both Destructive and Non-Destructive) :

    1. Visual Dimension Test
    2. Mechanical examining like tensile, Elongation and reduction of area.
    3. Large-scale test
    4. Chemical examination analysis
    5. Hardness test
    6. Pitting protection test
    7. Flaring Testing
    8. Water-Jet Test
    9. Penetrant Test
    10. X-ray test
    11. Intergranular Corrosion Testing
    12. Impact analysis
    13. Eddy current examining
    14. Hydrostatic analysis
    15. Metallography Experimental Test



    SAKY STEEL’S Packaging:

    1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
    2. Saky Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,

    Shrink-wrapped
    Carton boxes
    Wooden pallets
    Wooden boxes
    Wooden crates



    Applications:

    1. Paper & Pulp Companies
    2. High Pressure Applications
    3. Oil and Gas Industry
    4. Chemical Refinery
    5. Pipeline
    6. High Temperature Application
    7. Water Pipe Lin
    8. Nuclear Power Plants
    9. Food Processing and Dairy Industries
    10. Boiler & Heat Exchangers
