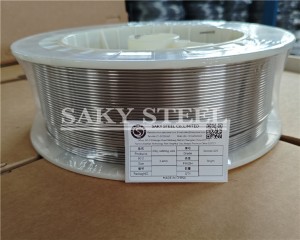

ER309L MIG & TIG Stainless Steel Welding Wire
Short Description:
SAKY STEEL supplies ER309L stainless steel welding wire for MIG, TIG and industrial welding applications. Available in spool wire, straight rod and custom sizes according to AWS A5.9 and ASME SFA-5.9 standards.
ER309L MIG & TIG Stainless Steel Welding Wire
ER309L MIG & TIG Stainless Steel Welding Wire is a low-carbon stainless steel welding consumable designed for welding 309, 309L stainless steel and dissimilar metal joints such as stainless steel to carbon steel or low-alloy steel.
With high chromium and nickel content, ER309L stainless steel welding wire provides excellent oxidation resistance, stable arc performance, good weldability and reliable corrosion resistance. The low carbon content helps reduce carbide precipitation during welding and improves resistance to intergranular corrosion.
SAKY STEEL supplies ER309L MIG welding wire, ER309L TIG welding rods, stainless steel welding wire spools, coils and drum packs according to AWS A5.9 ER309L and ASME SFA-5.9 standards. Different diameters, packaging types and customized labels are available according to customer requirements.
ER309L Welding Wire Product Specifications
| Item | Description |
|---|---|
| Product Name | ER309L MIG & TIG Stainless Steel Welding Wire |
| Grade | ER309L |
| Standard | AWS A5.9 / ASME SFA-5.9 |
| Material Type | Stainless Steel Welding Wire |
| Welding Process | MIG / TIG / GMAW / GTAW |
| Wire Type | Solid Welding Wire |
| Surface | Bright, Clean, Smooth |
| Diameter | 0.8 mm – 5.0 mm or customized |
| Form | MIG Spool, TIG Rod, Coil, Drum Pack |
| Shielding Gas | Argon, Ar + CO2, Ar + O2, depending on process |
| Main Application | Stainless steel welding, dissimilar steel welding, overlay welding |
| Certificate | EN 10204 3.1 available upon request |
Chemical Composition of ER309L Stainless Steel Welding Wire
| Element | AWS A5.9 ER309L Requirement (%) |
|---|---|
| C | ≤ 0.03 |
| Mn | 1.00 – 2.50 |
| Si | 0.30 – 0.65 |
| Cr | 23.00 – 25.00 |
| Ni | 12.00 – 14.00 |
| Mo | ≤ 0.75 |
| P | ≤ 0.03 |
| S | ≤ 0.03 |
| Cu | ≤ 0.75 |
| Fe | Balance |
Mechanical Properties of ER309L Weld Metal
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥ 550 MPa |
| Yield Strength | ≥ 350 MPa |
| Elongation | ≥ 25% |
| Weld Metal Structure | Austenitic Stainless Steel |
| Corrosion Resistance | Good resistance in stainless and dissimilar welding applications |
Note: Mechanical properties may vary depending on welding process, shielding gas, heat input and post-weld treatment.

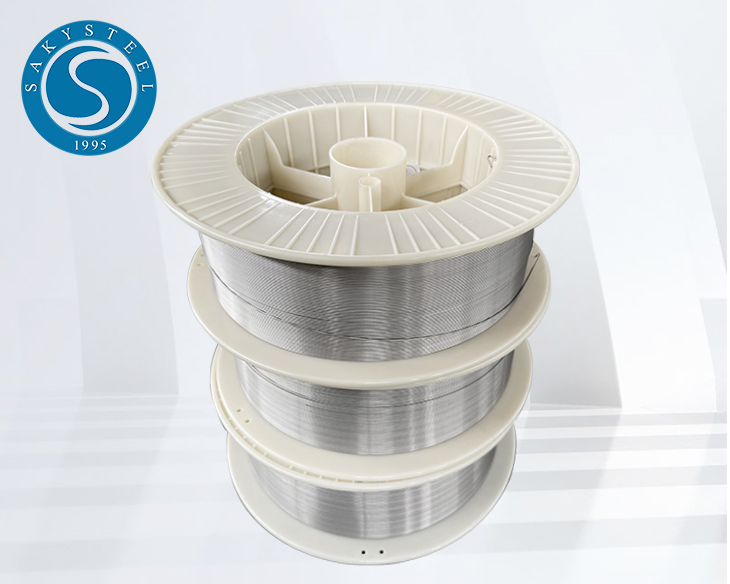

ER309L MIG Welding Wire Standard Sizes
| Diameter | Packaging | Application |
|---|---|---|
| 0.8 mm | D100 / D200 / D300 Spool | Thin stainless steel sheet welding |
| 1.0 mm | D200 / D300 Spool | General MIG welding |
| 1.2 mm | D300 Spool / Drum Pack | Industrial stainless steel fabrication |
| 1.6 mm | Coil / Drum Pack | Heavy-duty welding applications |
ER309L TIG Welding Rod Standard Sizes
| Diameter | Length | Packaging |
|---|---|---|
| 1.0 mm | 1000 mm | Plastic tube / carton |
| 1.2 mm | 1000 mm | Plastic tube / carton |
| 1.6 mm | 1000 mm | Plastic tube / carton |
| 2.0 mm | 1000 mm | Plastic tube / carton |
| 2.4 mm | 1000 mm | Plastic tube / carton |
| 3.2 mm | 1000 mm | Plastic tube / carton |
| 4.0 mm | 1000 mm | Plastic tube / carton |
| 5.0 mm | 1000 mm | Plastic tube / carton |
Regular Stock of ER309L Stainless Steel Welding Wire
| Product Type | Diameter | Stock Condition | MOQ |
|---|---|---|---|
| ER309L MIG Wire | 0.8 mm | Regular Stock | Negotiable |
| ER309L MIG Wire | 1.0 mm | Regular Stock | Negotiable |
| ER309L MIG Wire | 1.2 mm | Regular Stock | Negotiable |
| ER309L MIG Wire | 1.6 mm | Available Upon Request | Negotiable |
| ER309L TIG Rod | 1.6 mm | Regular Stock | Negotiable |
| ER309L TIG Rod | 2.0 mm | Regular Stock | Negotiable |
| ER309L TIG Rod | 2.4 mm | Regular Stock | Negotiable |
| ER309L TIG Rod | 3.2 mm | Regular Stock | Negotiable |
Features of ER309L MIG & TIG Stainless Steel Welding Wire
Stable Arc Performance
ER309L welding wire offers smooth wire feeding, stable arc ignition and low spatter during MIG and TIG welding operations.
Excellent Dissimilar Metal Welding Ability
ER309L stainless steel welding wire is widely used for joining stainless steel to carbon steel or low-alloy steel.
Low Carbon Content
The “L” grade means low carbon, which helps reduce carbide precipitation and improves resistance to intergranular corrosion.
Good Oxidation Resistance
Due to its high chromium and nickel content, ER309L welding wire performs well in high-temperature and oxidation-resistant applications.
Bright and Clean Surface
SAKY STEEL supplies ER309L welding wire with smooth surface quality, clean finish and reliable dimensional accuracy.
Applications of ER309L Stainless Steel Welding Wire
ER309L MIG and TIG stainless steel welding wire is suitable for a wide range of industrial welding applications, especially for stainless steel fabrication, dissimilar steel welding, petrochemical equipment, heat-resistant components and overlay welding.

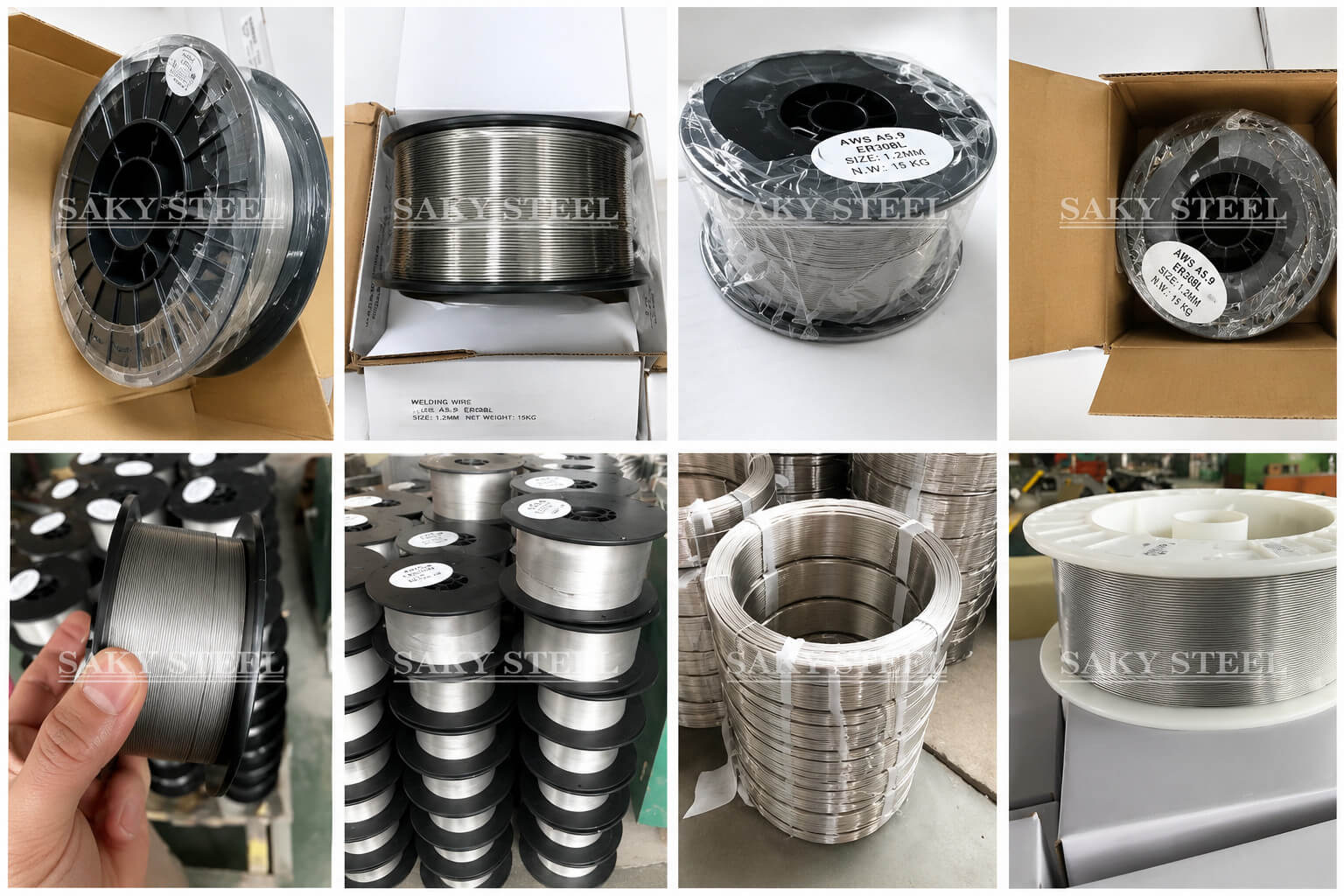

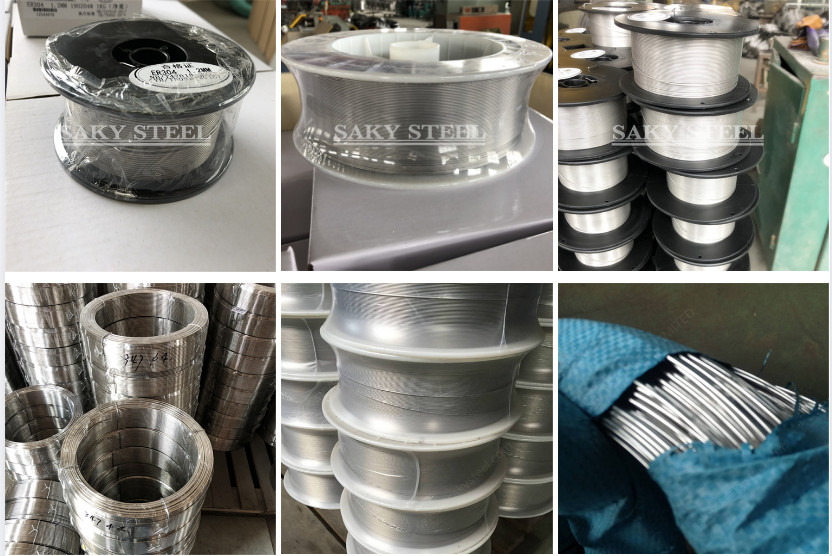

Packaging of ER309L Welding Wire
SAKY STEEL provides secure export packaging to protect ER309L MIG and TIG welding wire during storage and transportation.
| Product Type | Packaging Method |
|---|---|
| MIG Welding Wire | Plastic spool, precision layer wound |
| TIG Welding Rod | Plastic tube, carton box |

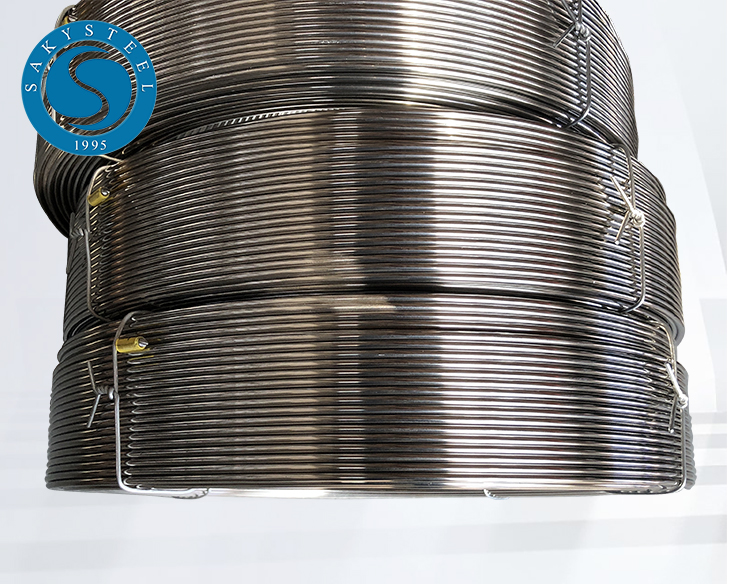

| Coil Wire | Coil with plastic film and carton |
| Drum Pack | Drum packaging for automatic welding |
| Export Packaging | Carton, pallet, wooden case available |
Packaging Features
- Moisture-resistant packaging
- Clear product labels with grade, size, heat number and standard
- Export wooden pallet or wooden case available
- Customized labels and neutral packaging available upon request
Production Process of ER309L Stainless Steel Welding Wire
| Step | Process | Description |
|---|---|---|
| 1 | Raw Material Selection | Select qualified stainless steel wire rod according to ER309L chemical composition. |
| 2 | Chemical Analysis | Verify chemical composition before production. |
| 3 | Wire Drawing | Draw wire to required diameter with controlled tolerance. |
| 4 | Heat Treatment | Improve wire structure and processing stability. |
| 5 | Surface Cleaning | Remove oil, oxide and surface impurities. |
| 6 | Precision Winding | MIG wire is layer wound on spool for smooth feeding. |
| 7 | Straightening & Cutting | TIG rods are straightened and cut to standard length. |
| 8 | Inspection | Check diameter, surface, weight, winding quality and chemical composition. |
| 9 | Packaging | Pack with labels, cartons, pallets or wooden cases. |
| 10 | Shipment | Arrange export delivery according to customer requirements. |
Quality Control
| Inspection Item | Description |
|---|---|
| Chemical Composition Test | Ensure compliance with AWS A5.9 ER309L. |
| Diameter Inspection | Check wire size and tolerance. |
| Surface Inspection | Ensure bright, clean and smooth surface. |
| Winding Quality | Ensure stable wire feeding for MIG welding. |
| Straightness Test | Ensure TIG rods are straight and easy to use. |
| Packaging Inspection | Confirm labels, cartons and export packaging. |
| Certificate | EN 10204 3.1 certificate available upon request. |
Why Choose SAKY STEEL ER309L Welding Wire?
SAKY STEEL is a professional stainless steel material supplier with rich export experience. We provide reliable ER309L MIG welding wire, ER309L TIG welding rods and other stainless steel welding consumables for industrial customers worldwide.
- ER309L welding wire supplied according to AWS A5.9
- MIG wire and TIG rods available
- Stable quality and smooth welding performance
- Regular stock sizes for fast delivery
- Export packaging suitable for international shipment
- Material certificate available upon request
- Custom diameter, packaging and label service available
FAQ About ER309L MIG & TIG Stainless Steel Welding Wire
What is ER309L welding wire used for?
ER309L welding wire is mainly used for welding 309, 309L stainless steel and dissimilar metal joints such as stainless steel to carbon steel or low-alloy steel.
What is the difference between ER309 and ER309L welding wire?
ER309L has lower carbon content than ER309. The low carbon content helps reduce carbide precipitation and improves resistance to intergranular corrosion after welding.
Can ER309L be used for welding stainless steel to carbon steel?
Yes. ER309L stainless steel welding wire is commonly used for joining stainless steel to carbon steel because of its high chromium and nickel content.
Is ER309L suitable for MIG welding?
Yes. ER309L MIG welding wire is suitable for GMAW welding and is available in spool, coil and drum packaging.
Is ER309L available as TIG rods?
Yes. SAKY STEEL supplies ER309L TIG welding rods in common diameters such as 1.6 mm, 2.0 mm, 2.4 mm and 3.2 mm.
What standard does ER309L welding wire follow?
ER309L stainless steel welding wire is generally supplied according to AWS A5.9 and ASME SFA-5.9 standards.
What shielding gas is used for ER309L MIG welding wire?
Common shielding gases include argon-based mixed gases such as Ar + CO2 or Ar + O2. The exact gas should be selected according to welding process and project requirements.
Can you provide ER309L welding wire with certificate?
Yes. SAKY STEEL can provide material certificates such as EN 10204 3.1 according to customer requirements.
What packaging is available for ER309L welding wire?
ER309L MIG welding wire can be supplied in spools, coils or drum packs. ER309L TIG rods are usually packed in plastic tubes and cartons.
Can ER309L welding wire be customized?
Yes. Diameter, packaging, label and export packing can be customized according to customer requirements.
Related Stainless Steel Welding Wire Grades
| Grade | Main Application |
|---|---|
| ER308L | Welding 304 / 304L stainless steel |
| ER309L | Dissimilar steel welding and 309 stainless steel welding |
| ER316L | Welding 316 / 316L stainless steel |
| ER347 | Stabilized stainless steel welding |
| ER310 | Heat-resistant stainless steel welding |
| ER2209 | Duplex stainless steel welding |
Contact SAKY STEEL for ER309L Welding Wire
If you are looking for a reliable ER309L MIG & TIG stainless steel welding wire supplier, SAKY STEEL can provide high-quality welding wire, stable supply and professional export service.
Send us your required grade, diameter, quantity, packaging type and destination port. Our team will provide a quotation and technical support as soon as possible.
