Stainless Steel Channel Pipe


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai Ningbo Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    304 stainless steel channel pipe

    Grade C% Si% Mn% P% S% Cr% Ni% Mo% Cu%
    304 =0.08 =1.0 =2.0 =0.045 =0.03 18.0-20.0 8.0-10.0 -
    T*S Y*S Hardness Elongation
    (Mpa) (Mpa) HRB HB (%)
    =520 =205 =40

    Specifications of stainless steel channel pipe:

    1. Type: round, square, groove, oval, shape tubes;
    2. Outside diameter:F25mm toF150mm.
    3. Thickness: 1mm to 3.0mm.
    4. Length: 3000mm to 6000mm, or option.
    5. Tolerance: OD: +- 0.2mm, WT: +-0.05mm, Length: +-5mm.
    6. Material: SS201, SS301, SS304,SS304L. SS316, and SS316L.
    7. Finish: Hairline satin,#80, #180, #240, # 320,# 400, # 600 polish
    8. Standard: ASTM A554
    9. Package: individually in plastic bag, weave bundle outter packing or depend on cutomers request. About 400kg per bundle.
    10. Certificate: ISO9001-2000, Products quality certificate etc,

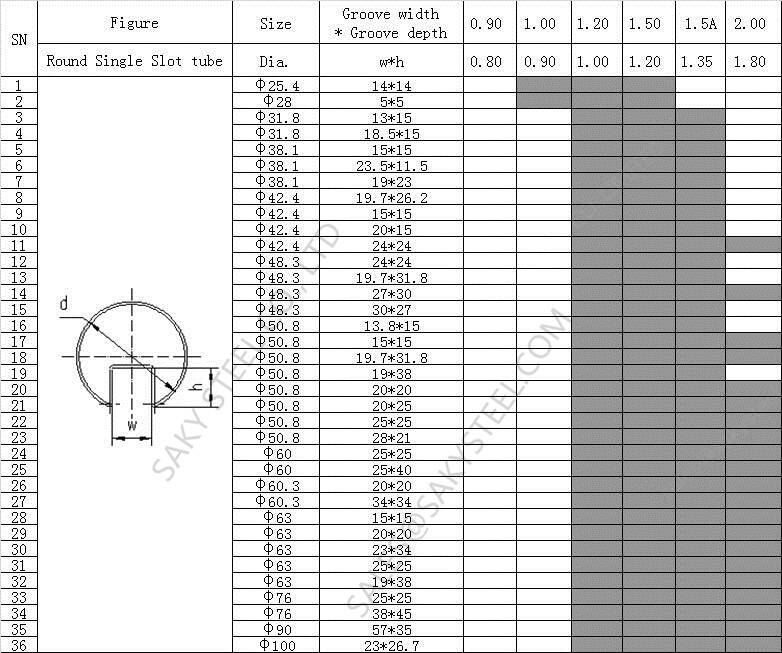

    Specification Groove Size
    Width X Depth
    (Single Groove) 50.8×1.05×6M 15×15
    (Single Groove) 50.8×1.21×6M 15×15
    (Single Groove) 50.8×1.5×6M 15×15
    (Single Groove) 50.8×2.0×6M 15×15
    (Double Groove) 50.8×1.0×6M 15×15
    (Double Groove) 50.8×1.2×6M 15×15
    (Double Groove) 50.8×1.5×6M 15×15
    (90°Double Groove) 50.8×1.5×3M 15×15
    (Deep Groove) 50.8×1.2×6M 19.05×38.35
    (Deep Groove) 50.8×1.5×6M 19.05×38.35
    (Single Groove) 63.5×1.2×6M 20×20
    (Single Groove) 63.5×1.5×6M 20×20
    (Single Groove) 63.5×2.0×6M 20×20
    (Deep Groove) 63.5×1.5×6M 19.05×38.35
    (Single Groove) 76.2×1.2×6M 25×25
    (Single Groove) 76.2×1.5×6M 25×25
    (Single Groove) 76.2×2.0×6M 25×25
    (Single Groove) 42.4×1.5×6M 20×20
    (Single Groove) 42.4×1.5×6M 24×24
    (Deep Groove) 48.3×1.5×6M 27×30
    (Deep Groove) 60.3×1.5×6M 34×34
    (Deep Groove) 38.1×1.2×6 M 16.5×25.4
    (Deep Groove) 38.1×1.5×6 M 16.5×25.4
    (Rectangle Pipe) (60×40)×1.5×6M 24×24
    (Oval Tube) (80×40)×1.5×6M 24×24
    (Oval Tube) (80×40)×2.0×6M 24×24
    (Big Oval Tube) (100×50)×1.2×6M
    (Big Oval Tube) (100×50)×1.5×6M
    Stainless Steel Welded Pipe(Oval U Channel Pipe)
    Grade : 304 304L 316 316L
    Standard: ASTM A554
    A*B(mm) trough wide*depth(mm) Suitable for
    W/T of glass
    40*60 15*15 5-12mm
    40*80 20*20 8-15mm
    50*100 30*30 10-25mm
    40*110 33*26 10-28mm
    1)Polish: A) Non-polished
    B)180~600 Grit
    C) Mirror finish
    D) Titanium finish
    2)Lenght(m): 6 (as required)
    3)packing: A)inner: every tube sleeved by plastic bag;
    B)outer: steel crates bundles
    4) Minimum Order: Negotiable
    5)Payment: LC, TT,
    6)Port: FOB Foshan/Shenzhen/HuangPu
    7)Delivery: 30-35days after deposit,balance before shippment. (According to the quantity.)
    8)OEM/ODM Product, buyer’s label offered.
    9)Mill test certification offered.
    (Normal sizes )
    Round pipes
    f 5 f 6 f 7 f8 f 9 f 9.5
    f 10 f 11 f 12 f 13 f 14 f 15
    f15.5 f 16 f 17 f 18 f 19 f 20
    f 21 f 22 f 23 f 24 f 25 f 26
    f 27 f 28 f 29 f 30 f 31 f 32
    f 33 f 34 f35 f 38 f 40 f 42
    f 45 f 46 f 48 f 50 f 51 f 55
    f 56 f 60 f 63 f 76 f 80 f 89
    f 114 f133 f140 f 159 f 168 f 219
    Square pipes
    6.5*6.5 10*10 12*12 14*14 16*16 18*18
    19*19 20*20 22*22 23*23 25*25 28*28
    30*30 35*35 36*36 44.45*44.45 50*50 80*80
    Rectangle pipes
    10*5 10*6 13*6 15*10 20*10 25*10
    25*13 24*16 30*10 30*15 34.35*14.35 35.5*15.5
    40*10 32*20 35*23 40*20 38*25 49.9*14.9
    48.5*25 60*40 75*35 80*40 100*25 100*50
    Full Oval pipes
    14.5*8 17.8*9.5 20*10 20*13.5 23.8*10.8 24*13.2
    30*15 30*18 42*16 40*20 50*25 60*30
    Half oval pipes
    13*6 20*9 20*13.5 22*12 28*12 26*16
    30*15 40*20 45*22 50*25 60*30 80*40
    (Thickness):0.3-3mm

    More details:
    Specification: ASTM A554
    Shape: stainless steel round pipe/tube,stainless steel rectangular pipe/tube,stainless steel square tube/pipe,stainless steel emboss/spiral pipe,general use pipe/tube
    Material: 201,202,301,304,316,409,430,etc
    OD: 6-300mm, TCK: 0.25-20mm
    Tolerance
    OD:0.20mm
    Standard :ASTM A554 .GB/T 12770 .JIS G3446 .JG/T 3030 .YB/T 5363 , customers’ requests available
    Size:6mm12.7,15.9,16,17.15,18,19.1,20,22.2,25.4,26.67,27,28,28.6,29,30,31.8,32,33.4,33.7,34,35,36,38.1,40,41.3,42,
    44.5,45,48.26,50.8,54,57,60,60.33,63.5,73,76.2,80,85,88.9,95,100,101.6,105,
    108,120,114.3,127,133,141,152,159,168,178,219,254,273,323.85,426mm
    thick :0.4mm-8.0mm
    Length: 6m or according to customers’ request
    Tolerance Outer diameter:±0.2mm
    Thickness:±0.02mm
    Length:±0.5mm
    Process: Method Cold drawn, Annealed with nitrogen protection, Ultrasonic welding,
    Automatic shape, Polished, Packing.
    Ends In plain end or bevelled ends or as customers’ requirements
    Surface:180#.220#.320#.400#.600#.HL.MF 8K.etc
    Inner Packing Plastic bag
    Outer Packing Standard gunny packed for each bundle, around 300-500kgs per
    bundle, or customized according to customers’ requests
    Decorations, constructions
    Application Oil and chemical industry
    Food industry and pharmaceutical industry
    Ship-building and automobile manufacturing
    Water transportation systems
    Rustless, stainless, good corrosion resistance, anti-wearing, good
    Performance appearance, excellent mechanical properties
    Certification ISO, SGS,BV.
    Welding Line Type ERW(Electrical Resistance Weld)
    Delivery Detail 15~25 days, depends on customers’ order quantity

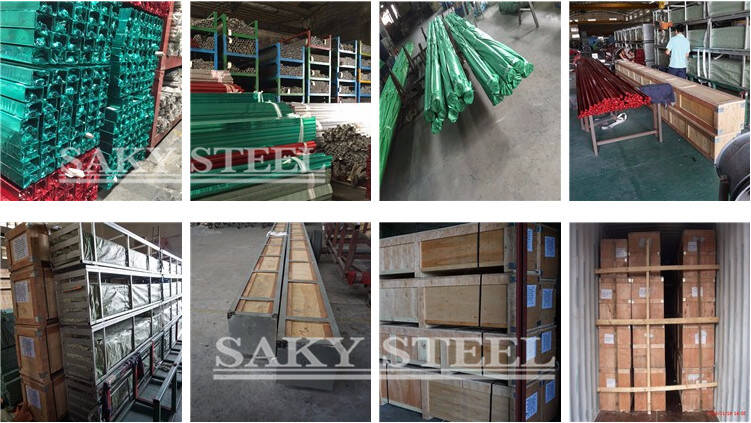

    SS Channel tube Packaging:




    sakysteel SS channel slot tube are packed and labeled according to the regulations and customer’s requests. Great care is taken to avoid any damage which might otherwise be caused during storage or transportation.
