316 Stainless Steel Wire Rope


  • FOB Price: US $0.5 - 9,999 / Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 10000 Piece/Pieces per Month
  • Port: Shanghai Ningbo Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • :
  • Product Detail

    Product Tags

    316 stainless steel wire rope products from sakysteel:

    IMG_6857_副本
    316 stainless steel wire rope manufacturers
    7x7 stainless steel wire rope

    4mm stainless steel wire rope suppliers

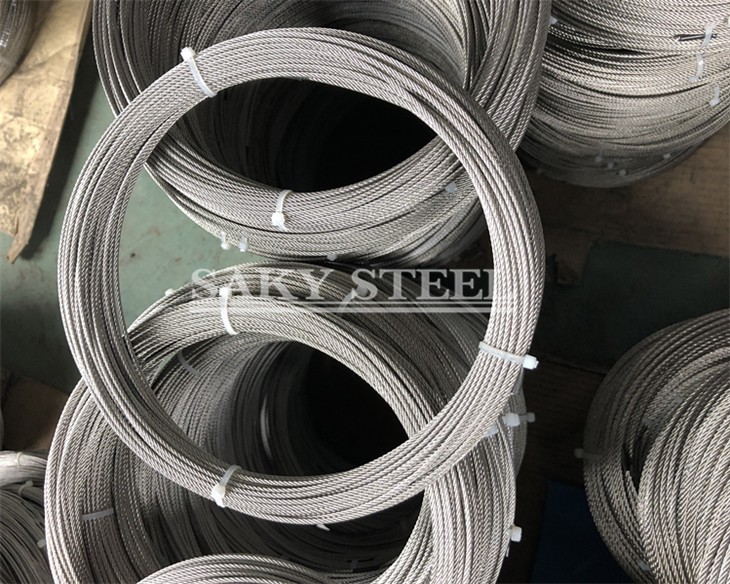

    730x584--7x7 304 stainless steel wire rope
    5mm stainless steel wire rope for sale
    2mm stainless steel wire rope
    2mm stainless steel wire rope price

    AISI 316L Stainless steel wire rope Corrosion resistant in a variety of marine and chemical environments and excellent corrosion resistance,weight

    C% Si% Mn% P% S% Cr% Ni% N% Mo% Ti%
    =0.08 =0.75 =2.0 =0.045 =0.03 16.0-18.0 10.0-14.0 2.0-3.0
    T*S Y*S Hardness Elongation
    (Mpa) (Mpa) HRB HB (%)
    =520 =205 =4
    Product Stainless Steel Wire Rope
    Size 1×3/1×7/1×19/3×7/6×7/6×19 etc.
    Length Unlimited or as customer decided
    Finish Cloudy,Bright,Pickled,Mill,Mat
    Standard ASME, ASTM, EN ,BS,GB,DIN, JIS etc
    Material 201,202,302,303,303se,304,304L,304H,308,309,310,310s
    316,316L,310S,321,347,410,420,430 etc
    Hardness all soft |1/4 hard|semi-hard|3/4 hard|full hard|ultra hard.

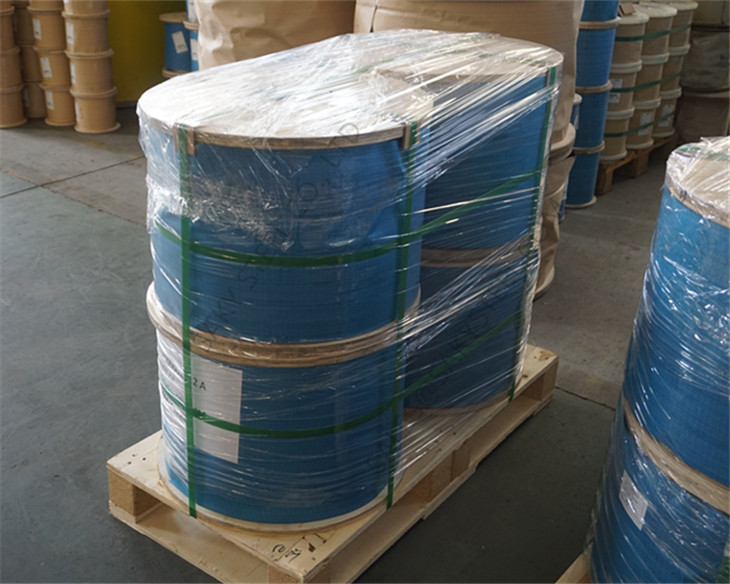

    Package Plywood reels, plastic spools or according to requirements.Wooden box
    Surface Construction Diameter (mm) Tensile Strength
    Bright
    Cloudy
    1×7 0.6–14 1270N/mm2–1960N/mm2
    1×19 1.0–8.0
    1×12 1.0–8.0
    7×7 (6×7+IWRC) 1.0–20
    6×19+IWRC 3.0–56
    6x19W/S+IWRC 6.0–38
    6×37+IWRC 6.0–64
    6×19/25Fi+IWRC 6.0–44
    8x19S/W+IWRC 8.0–16
    8x19S+IWRC 8.0–16
    6x36WS+IWRC 8.0–56
    19×7 4.0–28
    6×19+FC 3.0–56
    6x19W/S+FC 6.0–36
    6×37+FC 6.0–64
    6x19Fi+FC 6.0–44
    8x19S/W+FC 8.0–16
    8x19S+FC 6.0–16
    6x36WS+FC 8.0–56
    6×24+7FC 6.0–56
    6×12+7FC 3.0–32
    18×7+FC 4.0–28
    construction dia(mm) tolerance Appro Weight(kg/100m) MBL/KN
    1*7 0.3 0/+0.08 0.05 0.075
    0.4 0.08 0.133
    0.6 0.18 0.3
    0.8 0.32 0.533
    1 0.51 0.832
    1.2 0.73 1.198
    1.5 1.14 1.872
    1.8 1.64 2.696
    2 2.02 3.325
    2.5 3.16 5.201
    3 4.55 7.489
    4 0/+0.07 8.08 13.314
    1*19 0.8 0/+0.08 0.31 0.53
    1 0.49 0.82
    1.5 1.11 1.85
    1.8 1.6 2.67
    2 1.98 3.3
    2.5 3.09 5.16
    3 4.45 7.43
    4 0/+0.07 7.92 13.21
    5 12.37 20.64
    6 0/+0.06 17.82 29.72
    8 0/+0.05 31.68 52.85
    10 49.6 82.58
    12 71.28 118.91
    1*37 5 0/+0.07 12.23 20.41
    6 0/+0.06 17.6 29.39
    8 0/+0.05 31.3 52.25
    10 48.9 81.64
    12 70.42 117.56
    14 95.84 160.01
    16 125.18 208.99
    18 158.44 264.51
    20 195.6 326.56
    7*7 0.33 0.037 0.1
    0.36 0/+0.08 0.054 0.15
    0.5 0.09 0.14
    0.8 0.25 0.29
    1 0.39 0.56
    1.2 0.56 0.81
    1.5 0.88 1.27
    1.8 1.27 1.83
    2 1.57 2.25
    2.5 2.45 3.52
    3 3.53 5.07
    4 0/+0.07 6.28 9.01
    5 9.82 14.09
    6 0/+0.06 14.14 20.29
    8 0/+0.05 25.15 36.07
    10 39.3 56.36
    12 56.59 81.16
    7*19 1.2 0/+0.08 0.54 0.75
    1.5 0.85 1.17
    1.8 1.23 1.68
    2 1.52 2.08
    2.5 2.38 3.25
    3 3.42 4.69
    4 0/+0.07 6.09 8.33
    5 9.52 13.03
    6 0/+0.06 13.71 18.76
    7 18.66 25.54
    8 0/+0.05 24.38 33.35
    10 38.1 52.12
    12 54.86 75.05
    14 74.67 102.16
    16 97.53 133.43
    18 123.44 168.88
    20 152.4 208.49
    24 219.45 300.23
    26 257.55 352.35
    6*19S/W+IWRC 8 0/+0.05 25.92 35.77
    10 40.5 55.89
    12 58.32 80.48
    14 79.38 109.55
    16 103.68 143.08
    18 131.22 181.09
    20 162 223.57
    6*36S/W+IWRC 8 0/+0.05 26.75 35.77
    10 41.8 55.89
    12 60.19 80.48
    14 81.93 109.55
    16 107.01 143.08
    18 135.43
    20 167.2
    22 202.31
    24 240.77
    26 282.57
    28 327.71
    19*7 4 0/+0.07 6.43 7.61
    5 10.05 13.58
    6 0/+0.06 14.47 19.56
    7 19.69 26.62
    8 0/+0.05 25.73 34.77
    10 40.2 54.32
    12 57.89 78.22
    14 78.79 106.47
    16 102.91 139.06
    18 130.25 176
    20 160.8 217.29
    Type AISI C Max % Mn Max % P Max% S Max% Si Max% Cr% Ni% Mo%
    201 0.15 5.50-7.50 0.06 0.03 1 16.000-18.00 0.5 -
    202 0.15 7.50-10.00 0.06 0.03 1 17.00-19.00 3.-0-5.00 -
    204CU 0.08 6.5-8.5 0.06 0.03 2 16.0-17.0 1.5-3.0 -
    302 0.15 2 0.045 0.03 1 17.00-19.00 8.00-10.00 -
    302HQ/ 0.03 2 0.045 0.02 1 17.00-19.00 9.00-10.00 -
    304CU
    304HC 0.04 0.80-1.70 0.04 0.015 0.3-0.6 18-19 8.5-9.5 -
    303 0.07 2 0.045 0.25 Min 1 17-19 8.0-10.0 0.6
    304 0.08 2 0.045 0.03 1 18.00-20.00 8.0-10.50 -
    304L 0.03 2 0.045 0.03 1 18.00-20.00 8.00-12.00 -
    310 S 0.055 1.5 0.04 0.005 0.7 25.0-28.0 19-22 -
    314 0.25 2 0.045 0.03 1.50-3.00 23.00-26.00 19.00-22.00 -
    316 0.06 2 0.045 0.03 1 16.00-18.00 10.00-14.00 2.00-3.00
    316L 0.03 2 0.045 0.03 1 16.00-18.00 10.00-14.00 2.00-3.00
    316Ti 0.08 2 0.045 0.03 0.75 16.00-18.00 10.00-14.00 2.00-3.00
    347 0.08 2 0.045 0.03 1 17.00-19.00 9.00-13.00 -
    321 0.06 2
