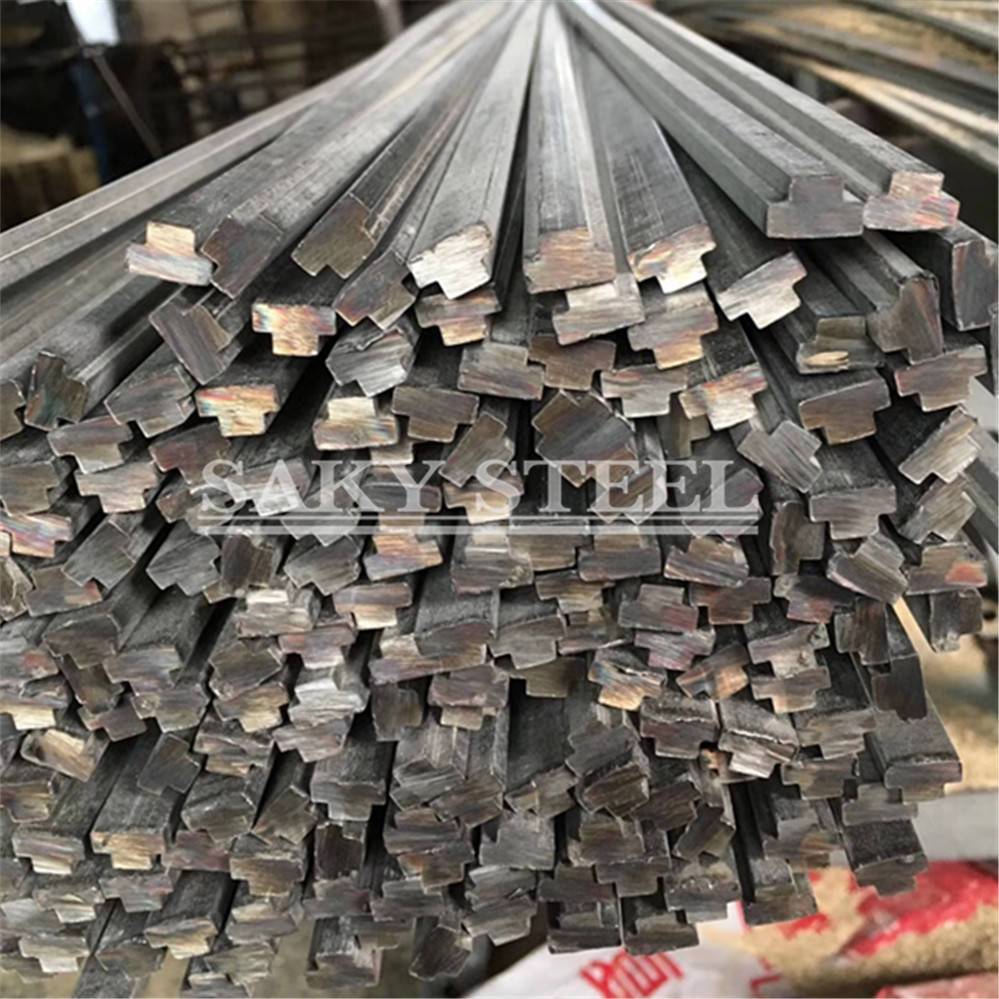

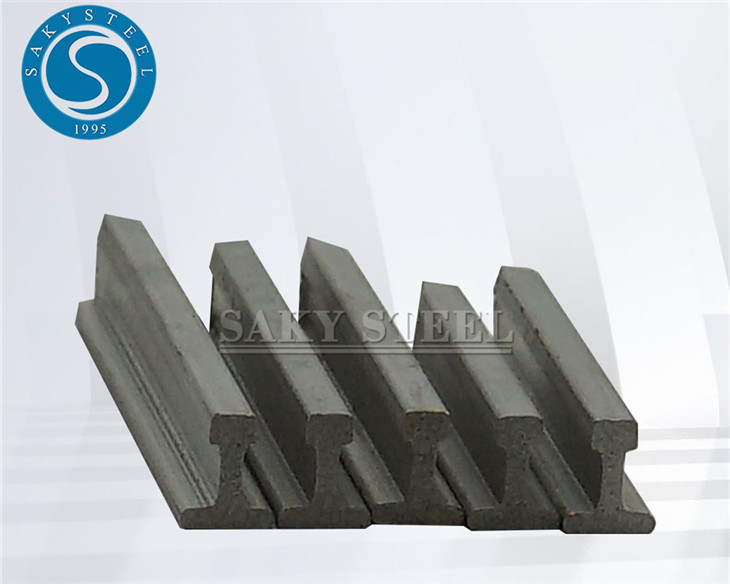

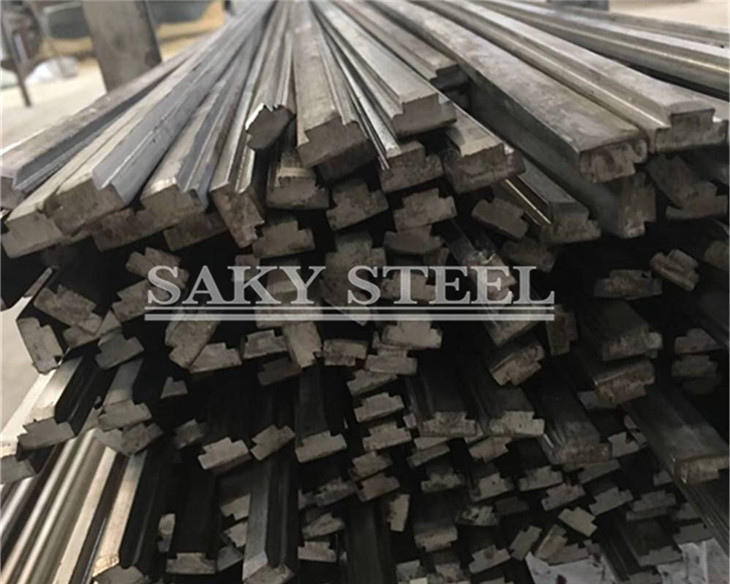

T Shape Stainless Steel Profile Wire
Short Description:
T Shape Stainless Steel Profile Wire is a precision cold-formed or drawn stainless steel shaped wire with a T-shaped cross section for guide rails, sealing structures, screen components, mechanical assemblies and custom industrial profiles. SAKY STEEL supplies T-shaped profile wire in 304, 316 and other stainless steel grades with customized flange width, stem thickness, overall height, tolerance and delivery length according to customer drawings.
T Shape Stainless Steel Profile Wire Overview
T Shape Stainless Steel Profile Wire is a precision-shaped stainless steel wire with a T-shaped cross section. It is used where a wider flange and narrower stem are required for positioning, guiding, supporting, sealing or mechanical assembly.
SAKY STEEL supplies T-shaped profile wire in stainless steel grades such as 304 and 316. Flange width, stem thickness, overall height, corner radius, tolerance and delivery form can be customized according to customer drawings and application requirements.
T Shape Profile Wire Quick Information
Profile: T Shape / Custom T Profile
Material: Stainless Steel
Common Grades: 304 / 316 / Other Agreed Grades
Supply Form: Coil / Spool / Straight Length
Surface: Bright / Smooth / As Produced
Processing: Cold Drawing / Profile Forming / Straightening / Cutting
Customization: Flange Width / Stem Thickness / Overall Height / Radius / Tolerance
Applications: Guide Rails / Mechanical Components / Sealing Structures / Custom Assemblies
T Shape Profile Design
The T-shaped section normally consists of a wider upper flange and a narrower vertical stem. The relationship between these dimensions can be adjusted according to installation, load, welding and fitting requirements.
| Profile Parameter | Description |
|---|---|
| Flange Width | Overall width of the horizontal T section |
| Flange Thickness | Thickness of the horizontal working section |
| Stem Thickness | Width of the vertical section |
| Overall Height | Total profile height from flange to stem end |
| Corner Radius | Internal or external radius according to drawing |
| Tolerance | Critical dimensional tolerances confirmed according to approved drawing |
Custom T Shape Stainless Steel Wire
T-shaped profile wire is commonly produced according to customer-specific cross sections rather than one fixed standard size. Symmetrical and application-specific profile designs can be reviewed according to drawings.
| Cross Section Custom flange and stem dimensions | Tolerance Controlled critical profile dimensions | Delivery Form Coil, spool or straight length |
304 vs 316 T Shape Stainless Steel Profile Wire
| Grade | Main Characteristic | Typical Selection |
|---|---|---|
| 304 | Good general corrosion resistance and economical material selection | General industrial, mechanical and architectural components |
| 316 | Improved corrosion resistance in chloride-containing environments | Marine, chemical, wet-service and more corrosive applications |
T Shape Profile Wire Manufacturing
The production route depends on material grade, cross-sectional dimensions, required tolerance, surface condition and delivery form.
Controlled forming helps maintain consistent flange width, stem thickness and overall profile geometry along the finished length.
Inspection & Quality Control
| Inspection Item | Purpose |
|---|---|
| Material Verification | Confirm stainless steel grade and traceability |
| Flange Width | Verify the main horizontal section dimension |
| Stem Thickness | Check vertical section consistency |
| Overall Height | Confirm total T-profile dimension |
| Cross-Section Geometry | Check profile shape against approved drawing |
| Surface Inspection | Check visible defects and finished surface condition |
| Documentation | MTC and dimensional inspection documentation available as agreed |
Applications of T Shape Stainless Steel Profile Wire
| Guide Systems Guide rails and positioning components | Mechanical Assemblies Custom structural and locating parts | Sealing Structures Special profile interfaces and support parts |
| Screen Components Support and structural profile elements | Industrial Equipment Precision formed stainless steel components | Custom Fabrication Drawing-based specialty profile applications |
T Shape Stainless Steel Profile Wire Packaging
Packaging is selected according to profile dimensions, delivery form, surface condition, bundle weight and transportation requirements.
Profile wire can be supplied in coils, spools, straight lengths or export packaging according to profile dimensions and shipment requirements.
Frequently Asked Questions
What is T shape stainless steel profile wire?
It is a precision-shaped stainless steel wire with a wider horizontal flange and narrower vertical stem, producing a T-shaped cross section.
Can the T-shaped cross section be customized?
Yes. Flange width, flange thickness, stem thickness, overall height, radius and dimensional tolerances can be reviewed according to customer drawings.
Can T profile wire be supplied in straight lengths?
Yes. Depending on section size and production feasibility, T-shaped profiles can be supplied in coils, spools, straight lengths or cut lengths.
Which stainless steel grades are available?
304 and 316 are common options. Other stainless steel grades can be reviewed according to corrosion resistance, mechanical requirements and profile dimensions.
Can MTC and dimensional inspection records be supplied?
Yes. Material certificates and agreed dimensional inspection documentation can be supplied according to confirmed order requirements.
Request a T Shape Stainless Steel Profile Wire Quote
Send your profile drawing, stainless steel grade, flange width, stem thickness, overall height, length and quantity. SAKY STEEL will review the profile requirements before confirming the offer.
