316LVM Stainless steel sheet
Short Description:
ASTM F139 316LVM stainless steel sheet, UNS S31673, for medical, surgical implant and precision applications. Available in cold-worked or annealed condition with custom thickness, width and length. Heat-number traceable MTC, chemical analysis, mechanical testing and TÜV third-party inspection can be provided according to order requirements.
316LVM Stainless Steel Sheet Overview
316LVM Stainless Steel Sheet is a vacuum-melted austenitic stainless steel product designed for applications requiring controlled chemistry, high material cleanliness, corrosion resistance and reliable mechanical performance.
SAKY STEEL supplies 316LVM / UNS S31673 stainless steel sheet, plate and strip according to ASTM F139 and customer-specific requirements. Thickness, width, length, surface condition, cutting, slitting, grinding and inspection documentation can be reviewed according to the project specification.
316LVM Quick Information
Grade: 316LVM / UNS S31673
Primary Standard: ASTM F139
Product Forms: Sheet / Plate / Strip / Coil / Foil / Shim / Custom Cut Pieces
Thickness: 0.3 mm – 30 mm
Processing: Cold Rolled / Hot Rolled / Cutting / Slitting / Grinding / Custom Fabrication
Surface: 2B / BA / No.1 / No.4 / Polished / Brushed / Custom Finish
Traceability: Heat Number + MTC Available
Inspection: Chemical / Mechanical / Grain Size / Inclusion / Corrosion / Third-Party Testing
316LVM Stainless Steel Sheet & Plate Specifications
| Item | Specification |
|---|---|

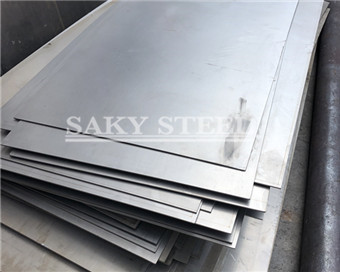

| Product | 316LVM Stainless Steel Sheet, Plate and Strip |
| Grade | 316LVM |
| UNS | S31673 |
| Primary Standard | ASTM F139 |

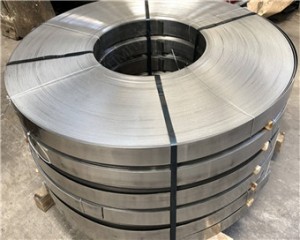

| Product Form | Sheet / Plate / Strip / Coil / Foil / Shim / Custom Cut Pieces |
| Thickness | 0.3 mm – 30 mm |
| Width | 1000 / 1219 / 1500 / 1800 / 2000 mm and Custom Widths |
| Length | 2000 / 2440 / 3000 / 5800 / 6000 mm and Custom Lengths |
| Processing | Cold Rolled / Hot Rolled / Cutting / Slitting / Grinding / Custom Fabrication |
| Surface Finish | 2B / BA / No.1 / No.4 / Polished / Brushed / Custom Finish |
| Material Traceability | Heat Number Traceability and Mill Test Certificate Available |
316LVM Grade Identification
| Grade | UNS | Typical Product Standard |
|---|---|---|
| 316LVM | S31673 | ASTM F139 |
316LVM Stainless Steel Chemical Composition
| Grade | C | Mn | Si | P | S | Cr | Ni | Mo | Cu | N |
|---|---|---|---|---|---|---|---|---|---|---|
| S31673 | 0.03 max | 2.00 max | 0.75 max | 0.025 max | 0.010 max | 17.0–19.0 | 13.0–15.0 | 2.25–3.00 | 0.50 max | 0.10 max |
Chemical composition values above are specification reference values. Actual heat-analysis values are confirmed by the applicable Mill Test Certificate.
316LVM Mechanical Properties
Mechanical properties depend on product thickness, processing condition and the applicable order specification. The following values are retained as existing page reference data.
| Tensile Strength | Yield Strength (0.2% Offset) | Elongation |
|---|---|---|
| 860 MPa | 690 MPa | 12% |
Final acceptance should be based on the applicable standard, ordered material condition and batch-specific inspection documentation.
316LVM Actual Heat Analysis – Representative Production Data
The following actual heat-analysis data is retained from the existing product page to demonstrate heat-number traceability and batch-level chemical analysis capability. Actual values vary by production heat.
| Heat No. | Dimension (mm) | C | Si | Mn | P | S | Cr | Ni | Mo | N |
|---|---|---|---|---|---|---|---|---|---|---|
| 24B100408 | 2.2 × 205 × 1200 | 0.025 | 0.43 | 1.75 | 0.011 | 0.001 | 17.50 | 14.70 | 2.78 | 0.08 |
| 24B108304 | 3.0 × 205 × 1200 | 0.021 | 0.54 | 1.69 | 0.010 | 0.001 | 18.18 | 14.83 | 2.49 | 0.09 |
| 24B100402 | 4.2 × 205 × 1200 | 0.027 | 0.44 | 1.80 | 0.015 | 0.001 | 17.70 | 14.75 | 2.77 | 0.08 |
| 24B100405 | 6.2 × 205 × 1200 | 0.018 | 0.38 | 1.61 | 0.010 | 0.002 | 18.21 | 14.72 | 2.53 | 0.09 |
TÜV Rheinland Third-Party Tensile Test Report
A third-party tensile test was performed by TÜV Rheinland (Shanghai) Co., Ltd. on a 316LVM stainless steel sheet sample. The tested material was identified as 316LVM with a product specification of 4 × 320 × 2000 mm.
| Test Report No. | 01 220 CHN/T-2603899 |
|---|---|
| Material | 316LVM Stainless Steel Sheet |
| Product Specification | 4 × 320 × 2000 mm |
| Test Method | ASTM E8/E8M-25 Control Method C |
| Testing Period | July 7–13, 2026 |
Actual TÜV Tensile Test Results
| Test Item | Actual Result |
|---|---|
| Tensile Strength | 935 MPa |
| Yield Strength (0.2% Offset) | 845 MPa |
| Elongation After Fracture | 14% (Gauge Length G = 50 mm) |
 |
 |
 |
TÜV Rheinland report shown above is an actual third-party test record for a tested 316LVM stainless steel sheet sample.
316LVM Testing & Quality Control
316LVM is commonly selected for applications where material cleanliness, chemistry control and traceability are important. Inspection requirements should therefore be defined according to the application, governing specification and customer documentation requirements.
| Inspection Item | Purpose |
|---|---|
| Material Verification | Confirm 316LVM / UNS S31673 material identification and heat-number traceability |

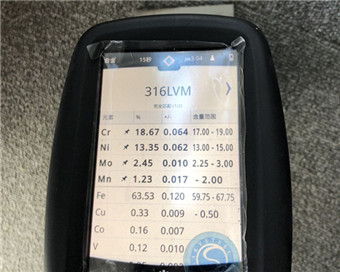

| Chemical Analysis | Verify alloy chemistry against the applicable specification |
| Tensile Testing | Verify tensile strength, yield strength and elongation when specified |

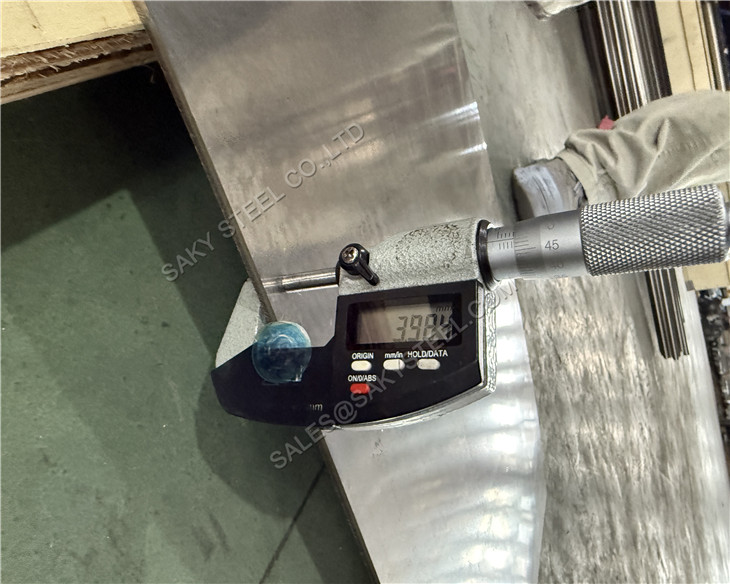

| Dimensional Inspection | Check thickness, width, length and cut dimensions |
| Surface Inspection | Check surface condition, scratches, defects and required finish |
| Grain Size / Inclusion | Available when required by the project specification or customer inspection plan |
| Corrosion Testing | Can be reviewed according to the required standard and service condition |
| Third-Party Inspection | TÜV, SGS or other agreed inspection bodies can be coordinated when specified before order |
Why 316LVM Is Selected
| Characteristic | Practical Value |
|---|---|
| Vacuum Melted Material | Selected where controlled material cleanliness and consistent metallurgy are important. |
| Low Carbon Chemistry | Supports corrosion performance and welded fabrication requirements. |
| Molybdenum Alloying | Provides improved resistance in chloride-containing environments compared with non-molybdenum austenitic grades. |
| Traceability | Heat-number control, MTC and additional test reports can support regulated and high-specification applications. |
| Custom Processing | Sheet and plate can be supplied in custom dimensions and processed according to downstream fabrication requirements. |
Applications of 316LVM Stainless Steel Sheet
316LVM sheet and plate are selected for applications requiring controlled material quality, corrosion resistance and reliable traceability. Final material selection should be validated against the applicable engineering, medical or regulatory specification.
| Medical Components Precision components and implant-related manufacturing | Surgical Instruments High-quality corrosion-resistant components | Precision Fabrication Machined and formed high-specification parts |
| Pharmaceutical Equipment Corrosion-resistant process components | Laboratory Equipment Precision stainless steel components | High-Specification Parts Components requiring documented material traceability |
316LVM Stainless Steel Sheet Packaging
Packaging is selected according to sheet thickness, dimensions, surface condition, processing state and transportation requirements. Surface protection is particularly important for precision and medical-material applications.
Frequently Asked Questions
What is 316LVM stainless steel?
316LVM is a vacuum-melted, low-carbon austenitic stainless steel grade commonly identified as UNS S31673 and used where controlled chemistry, material cleanliness and traceability are important.
What is the difference between 316L and 316LVM?
Both are molybdenum-bearing low-carbon austenitic stainless steels, but 316LVM is produced using vacuum melting routes and is commonly specified for applications requiring tighter control of material cleanliness and traceability.
What standard is commonly used for 316LVM sheet and plate?
ASTM F139 is a commonly referenced specification for wrought 18Cr-14Ni-2.5Mo stainless steel sheet and strip used in surgical implant applications. The governing specification for each order should be confirmed before production.
Can third-party tensile testing be provided?
Yes. Third-party testing can be arranged according to project requirements. The TÜV Rheinland report shown on this page records tensile testing of an actual 4 × 320 × 2000 mm 316LVM stainless steel sheet sample.
Can 316LVM sheet be supplied in custom sizes?
Yes. Custom thickness, width, length, cut pieces and downstream processing requirements can be reviewed according to the applicable material standard and production feasibility.
Is MTC available for 316LVM material?
Yes. Heat-number traceability and Mill Test Certificates can be supplied according to the confirmed order requirements.
Request a 316LVM Stainless Steel Sheet Quote
Send your required thickness, width, length, quantity, material condition, inspection requirements and destination. SAKY STEEL will review the specification and documentation requirements before confirming the offer.
