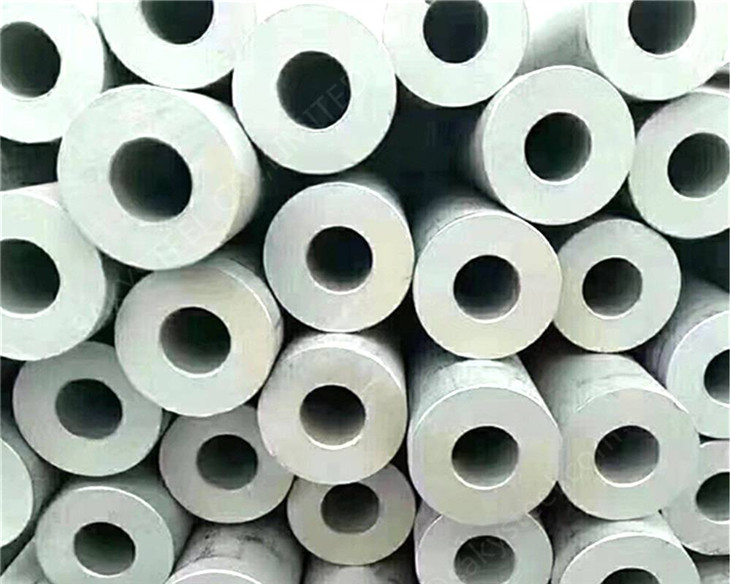

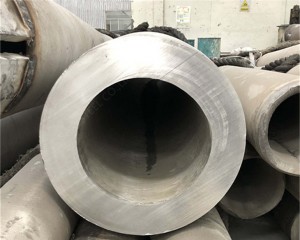

ASTM A335 P92 Heat Resistant Alloy Steel Pipe
Short Description:
ASTM A335 P92 heat resistant alloy steel pipe is a seamless ferritic alloy steel pipe for ultra-high-temperature and high-pressure service in power plants, boilers, superheaters and reheaters. Custom OD, wall thickness, length, beveling, testing, MTC and EN 10204 3.1 available.
ASTM A335 P92 Heat Resistant Alloy Steel Pipe is a seamless ferritic alloy steel pipe designed for ultra-high-temperature and high-pressure service. It is widely used in power generation, supercritical and ultra-supercritical boiler systems, superheater lines, reheater lines, main steam piping, petrochemical thermal equipment and pressure piping systems where creep strength, oxidation resistance and long-term stability are required.
SAKY STEEL supplies ASTM A335 / ASME SA335 P92 seamless alloy steel pipe in custom outside diameter, wall thickness, length, end preparation and surface protection according to project requirements. Beveled ends, plain ends, varnished surface, anti-rust coating, marking, hydrostatic test, non-destructive examination, PMI, MTC and EN 10204 3.1 documentation can be provided when specified.
Product Parameters
| Item | Product Details |
|---|---|
| Product Name | ASTM A335 P92 Heat Resistant Alloy Steel Pipe |
| Grade | P92 / Grade P92 / 9Cr-0.5Mo-1.8W-V-Nb-N |
| Standard | ASTM A335 / ASME SA335 |
| Material Family | Ferritic alloy steel for high-temperature service |
| Product Type | Seamless alloy steel pipe |
| Outside Diameter | Custom OD according to project requirement |
| Wall Thickness | SCH 40, SCH 80, SCH 160, XXS or custom wall thickness |
| Length | Random length, fixed length or cut length |
| End Type | Plain end, beveled end, capped end |
| Surface | Black, varnished, anti-rust coated |
| Heat Treatment | Normalized and tempered according to specification requirement |
| Testing | Hydrostatic test, NDE, dimensional inspection, PMI when specified |
| Certificates | MTC, EN 10204 3.1, test reports when specified |
Chemical Composition
ASTM A335 P92 is commonly described as an advanced 9Cr ferritic-martensitic alloy steel. Compared with P91, P92 typically contains tungsten and a lower molybdenum level, with controlled vanadium, niobium and nitrogen additions to support high-temperature creep strength and microstructure stability.
| Element | Typical Reference Content | Technical Function |
|---|---|---|
| Carbon | About 0.07–0.13% | Supports strength and tempered martensitic structure |
| Chromium | About 8.50–9.50% | Improves oxidation resistance and high-temperature behavior |
| Molybdenum | About 0.30–0.60% | Supports creep strength and thermal stability |
| Tungsten | About 1.50–2.00% | Improves high-temperature creep strength |
| Vanadium | Controlled addition | Supports precipitation strengthening |
| Niobium | Controlled addition | Helps stabilize microstructure during high-temperature service |
| Nitrogen | Controlled addition | Works with V and Nb for strengthening effects |
| Boron | Small controlled addition | Supports creep resistance when controlled properly |
| Manganese / Silicon | Controlled range | Supports melting control and oxidation behavior |
| Phosphorus / Sulfur | Controlled maximum | Restricted to support weldability and service reliability |
| Iron | Balance | Base metal matrix |
Actual chemical composition shall be confirmed by ASTM A335 / ASME SA335 requirement and the supplied MTC.
Mechanical and High-Temperature Properties
The following values are typical references for ASTM A335 P92 seamless alloy steel pipe. Actual mechanical properties depend on pipe size, wall thickness, heat treatment, test temperature and the applicable specification.
| Property | Typical Reference | Condition | Engineering Meaning |
|---|---|---|---|
| Tensile Strength | Specification dependent | Room temperature test | Supports pressure piping strength |
| Yield Strength | Specification dependent | Room temperature test | Important for high-pressure design |
| Elongation | Specification dependent | Tensile test | Indicates ductility after heat treatment |
| Hardness | Specification dependent | Normalized and tempered | Used to verify heat treatment condition |
| Creep Strength | High for P92 alloy steel | Elevated temperature service | Key reason for ultra-supercritical power plant applications |
| Oxidation Resistance | Improved by 9% chromium level | High-temperature air or steam service | Supports boiler and steam piping use |
| Heat Treatment | Normalized and tempered reference | Final pipe delivery condition | Controls tempered martensitic structure |
| Density | About 7.8 g/cm³ reference | Room temperature | Used for pipe weight calculation |
Common Size Table
| NPS / OD Range | Wall Thickness | Length | End Type | Typical Use |
|---|---|---|---|---|
| Small OD pipe | SCH 40 / SCH 80 / Custom | Fixed or random length | Plain or beveled | Auxiliary high-temperature piping |
| Medium OD pipe | SCH 80 / SCH 160 / Custom | 5.8 m, 6 m, 11.8 m or custom | Beveled end | Boiler, superheater and reheater lines |
| Large OD pipe | Heavy wall / XXS / Custom | Project specific | Beveled and capped | Main steam and high-pressure systems |
| Cut pipe sections | Drawing-specific | Cut to length | Machined or prepared | Fabrication and replacement projects |
Different Specifications Comparison
P92 Pipe End and Surface Options
| Option | Main Feature | Recommended Use | Purchase Advice |
|---|---|---|---|
| Plain End | Straight cut pipe end | Further machining or fabrication | Confirm cutting tolerance |

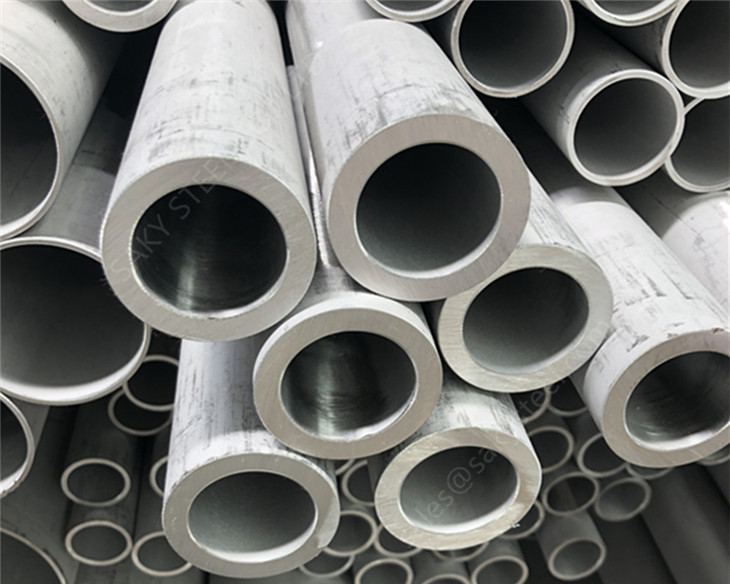

| Beveled End | Prepared for welding | Power plant and process piping | State bevel angle and root face if required |
| Black Surface | Mill surface after production | General industrial use | Suitable for many pipe orders |
| Varnished Surface | Temporary anti-rust protection | Export shipment | Recommended for storage and transport |
| Capped Ends | Protects pipe inner surface and bevel | Export and site delivery | Specify plastic or metal caps when needed |
Comparison with Related ASTM A335 Grades
| Grade | Main Alloy System | Main Strength | Typical Selection |
|---|---|---|---|
| P22 | 2.25Cr-1Mo type | Good creep and oxidation resistance | Boiler and petrochemical high-temperature piping |
| P91 | 9Cr-1Mo-V-Nb type | Higher creep strength and oxidation resistance | Power plant main steam and high-pressure systems |
| P92 | 9Cr-0.5Mo-1.8W-V-Nb-N type | Enhanced creep performance for advanced power systems | Supercritical and ultra-supercritical boiler piping |
| P122 | Advanced high-Cr alloy type | High-temperature performance in selected designs | Project-specific advanced boiler applications |
Equivalent Standards and International Names
| System | Designation | Relationship |
|---|---|---|
| ASTM | ASTM A335 Grade P92 | Seamless ferritic alloy steel pipe specification |
| ASME | ASME SA335 Grade P92 | Boiler and pressure vessel code reference |
| Common Name | P92 | Widely used project and piping grade name |
| Alloy Family | 9Cr-0.5Mo-1.8W-V-Nb-N | Advanced high-temperature alloy steel family |
| Pipe Type | Seamless ferritic alloy steel pipe | Used for high-temperature service |
Production Process Flow
Alloy steel billets are selected according to P92 chemistry and pipe production requirements.
Billets are heated under controlled conditions for piercing and hot forming.
The solid billet is pierced to form a hollow shell for seamless pipe production.
Pipe OD and wall thickness are formed to the required dimensions.
P92 pipe is normalized and tempered according to specification requirements.
Pipes are straightened, cut to length and prepared for inspection.
Hydrostatic test, NDE, dimensional and surface inspection are performed when required.
Heat number, grade, size, standard and shipping marks are prepared for export.
Product Inspection
| Inspection | Method | Purpose |
|---|---|---|
| Chemical Analysis | Laboratory analysis or MTC review | Confirm P92 alloy composition |
| Mechanical Test | Tensile and related tests when required | Verify strength and ductility |
| Hardness Test | HB / HRB / HRC as applicable | Confirm heat treatment condition |
| Hydrostatic Test | Pressure test according to order requirement | Verify pipe pressure integrity |
| Non-Destructive Examination | UT, ET or other NDE when specified | Evaluate pipe soundness |
| Dimensional Inspection | OD, WT, length and straightness check | Confirm pipe size and tolerance |
| PMI | Positive material identification | Available when specified for alloy verification |
| Traceability Review | Heat number and marking verification | Link pipe to MTC and EN 10204 3.1 |
Product Packaging
Pipes can be supplied with black surface, varnish or anti-rust coating for storage and shipment.
Plain or beveled ends can be protected with plastic or metal caps when required.
Small and medium pipes can be bundled with steel straps and lifting protection.
Wooden blocks, frames or pallets can be used according to pipe size and shipping method.
Grade, standard, size, heat number and customer shipping marks can be printed or tagged.
Applications, Core Performance and Fabrication
Primary Applications
- Ultra-supercritical power plant boiler piping
- Superheater and reheater lines
- Main steam and high-pressure steam piping
- Petrochemical high-temperature process piping
- Thermal equipment and pressure pipe systems
- High-temperature pipe replacement and maintenance projects
High-Temperature Performance
P92 pipe is valued for high creep strength, oxidation resistance and long-term stability in elevated-temperature service. Its tungsten-containing 9Cr alloy design makes it suitable for advanced power plant and boiler applications where high temperature and high pressure are combined.
Welding
P92 welding requires qualified welding procedures, controlled preheat, controlled interpass temperature and proper post-weld heat treatment. Weld procedure qualification, filler metal selection and hardness control are important for service reliability.
Heat Treatment
P92 pipe is normally delivered in normalized and tempered condition according to specification requirements. Improper heat treatment or welding thermal cycles may affect strength, hardness and creep performance, so the applicable code and project specification should be followed.
Machining and Fabrication
Cutting, beveling and pipe fabrication can be performed according to project drawings. For pressure piping, dimensional tolerance, bevel preparation, heat number traceability and final inspection should be controlled before welding or installation.
Why Choose SAKY STEEL?
OD, wall thickness, length, end preparation and surface protection can be supplied according to order requirements.
Pipe marking and documentation can maintain traceability from production to shipment.
MTC (Mill Test Certificate / 质保书) can be provided according to the purchase order.
EN 10204 3.1 documentation is available when specified by the order.
Hydrostatic test, NDE, PMI, dimensional and hardness inspection can be arranged when specified.
Bundles, end caps, wooden supports and customer shipping marks can be arranged for export delivery.
FAQ
What is ASTM A335 P92 pipe?
ASTM A335 P92 pipe is a seamless ferritic alloy steel pipe for high-temperature service. It is commonly used in advanced power plants, boilers, superheater lines, reheater lines and high-pressure steam systems.
Is ASTM A335 P92 the same as ASME SA335 P92?
ASTM A335 and ASME SA335 are commonly referenced together for seamless ferritic alloy steel pipe. The order should clearly state whether ASTM, ASME or project code requirements apply.
What is the difference between P91 and P92?
P92 is an advanced 9Cr alloy steel developed from the P91 material family. It typically uses tungsten and controlled microalloying additions to improve creep strength for more demanding high-temperature power plant applications.
Is P92 stainless steel?
No. P92 is a heat resistant alloy steel, not a stainless steel. Although it contains chromium, it still requires anti-rust protection during storage and transport.
Can P92 pipe be welded?
Yes, but P92 welding requires qualified welding procedures, proper preheat, controlled interpass temperature and post-weld heat treatment. Welding should follow the applicable code and project specification.
What tests are available for ASTM A335 P92 pipe?
Hydrostatic test, non-destructive examination, dimensional inspection, hardness test, PMI and MTC review can be arranged according to the purchase order and standard requirements.
Can MTC and EN 10204 3.1 be provided?
SAKY STEEL can provide MTC and EN 10204 3.1 documentation according to the purchase order. Additional inspection reports can also be arranged when specified.
